TM-8B Multi-Purpose Network Cable Tester RJ45 RJ11 Wire Phone Telephone Lines Scan Toner Tracer Tracker

TM-8B Multi-Purpose Network Cable Tester RJ45 RJ11 Wire Phone Telephone Lines Scan Toner Tracer Tracker

Description:
The cable tracker is designed to identify and trace wires or cables within a group without damaging the insulation.
For telephone line, it can identify some state in the line, and more convenience to install, debug, maintain telephone line. There is a Sender and a Receiver included in the cable tracker. A professional & safe tool for wireman.

Features:
- Upgraded version based on TM-8
- Cable Tester for UTP STP RJ45(manual switch)
- Automatic efficient scan for the miss wiring, disorder cable, open and short circuit
- TEL BNC test available(Adapter needed)
- Remotely test cable up to 1000 ft in length ( remote kit included )
- Protective power switch for low power consumption
- High quality protecive case provides more secure protection
- Judge continuity of the cables or wires
- Track the cables or wires, and diagnose the break point
- Receiver the tone signal on the cables or wires (telephone line)
- Identify the state in the working telephone line (clear ring, busy)
- Send a single solid tone or a dual alternating tone to the object cables or wires

Specifications:
- Power supply: DC 9V battery
- Working current: Tester: 20mA  Receiver: 150mA
- Signal transfe mode: Digital signal
- Signal output level: 8Vp-p
- Signal transfer distance: ?3Km
- Dimension:Transmitter: 130x60x33mm  Reveiver:210x35x25mm

Package Includes:

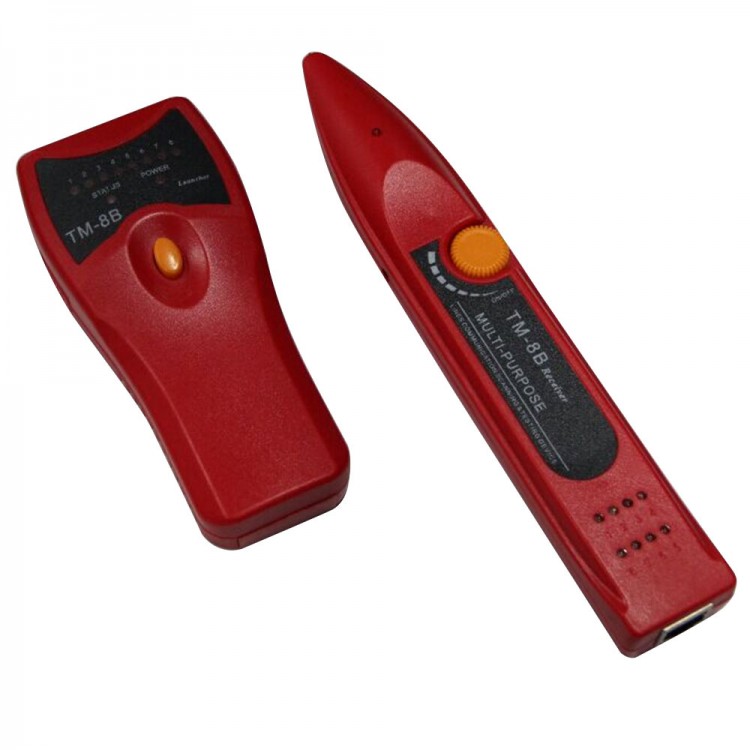

- 1 x Cable Transmitter
- 1 x Cable Receiver/Tracker
- 1 x RJ45 Cable
- 1 x RJ11 Cable
- 1 x Cable with crocodile clamp
- 1 x Earphone
- 1 x Tool bag
- 1 x Manual
