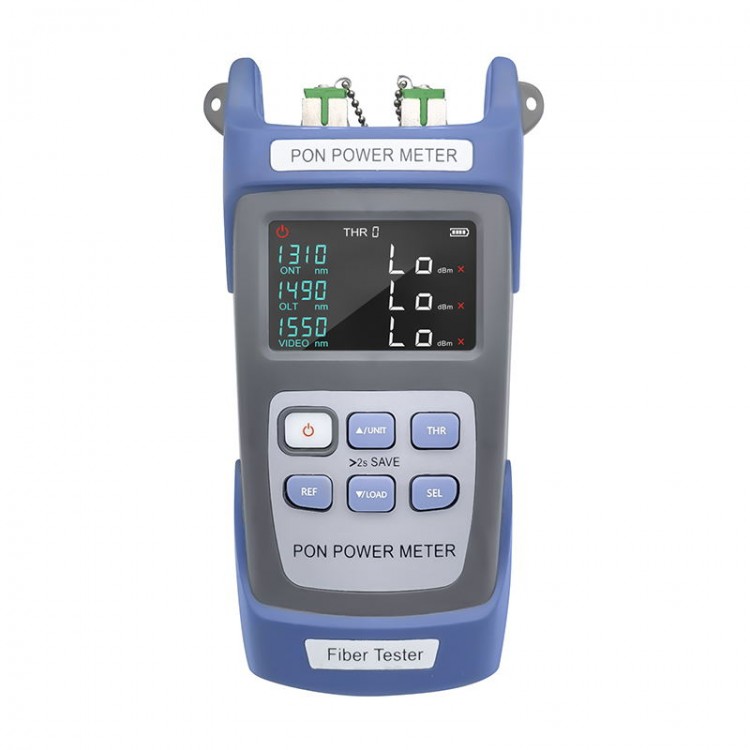

TM581 PON Power Meter APC Optical Fiber Tester for the Application & Operating & Optical Fiber Network Maintenance

TM581 PON Power Meter APC Optical Fiber Tester for the Application & Operating & Optical Fiber Network Maintenance

Description:
- In the PON network, by extracting a small part of the optical signal online, the PON power meter can be car-ried out in the whole FTTx service opening, maintenance and detection stage, which can reliably verify and ensure to meet the requirements of network communication. It can test the optical power value of voice, data and video signals at the same time, and give the warning of exceeding the threshold. It is an ideal choice for engineering, construction and maintenance.

Features:
- Handheld, easy to operate
- Automatically shut down can be set
- Burst mode test for 1310nm upstream wavelength
- Measurement and alarm thresholds can set
- Support the synchronous measurement and display of experimental voice, data and video signals on PON architecture.

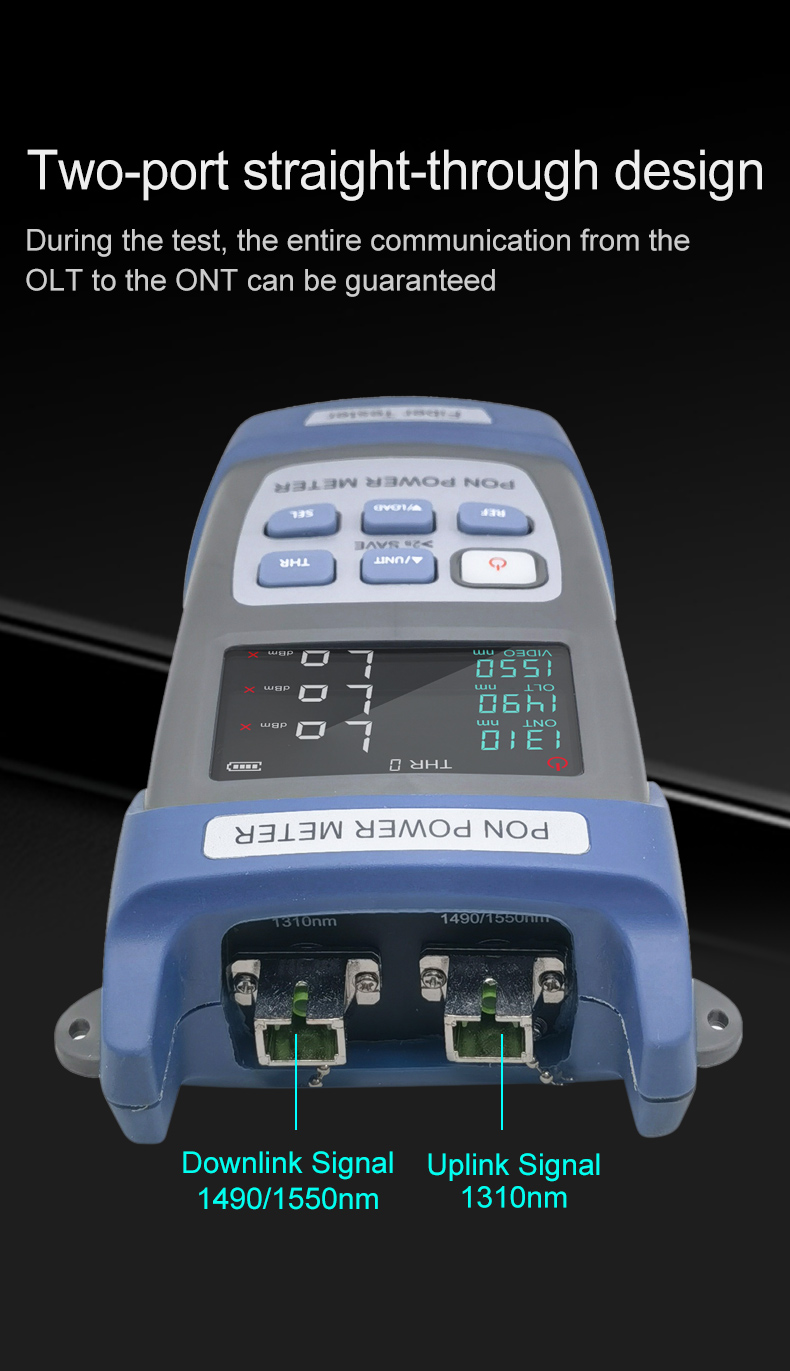

- Uplink signal1310nm, downlink signal 1490nm and 1550nm in PON system can be measured at once.

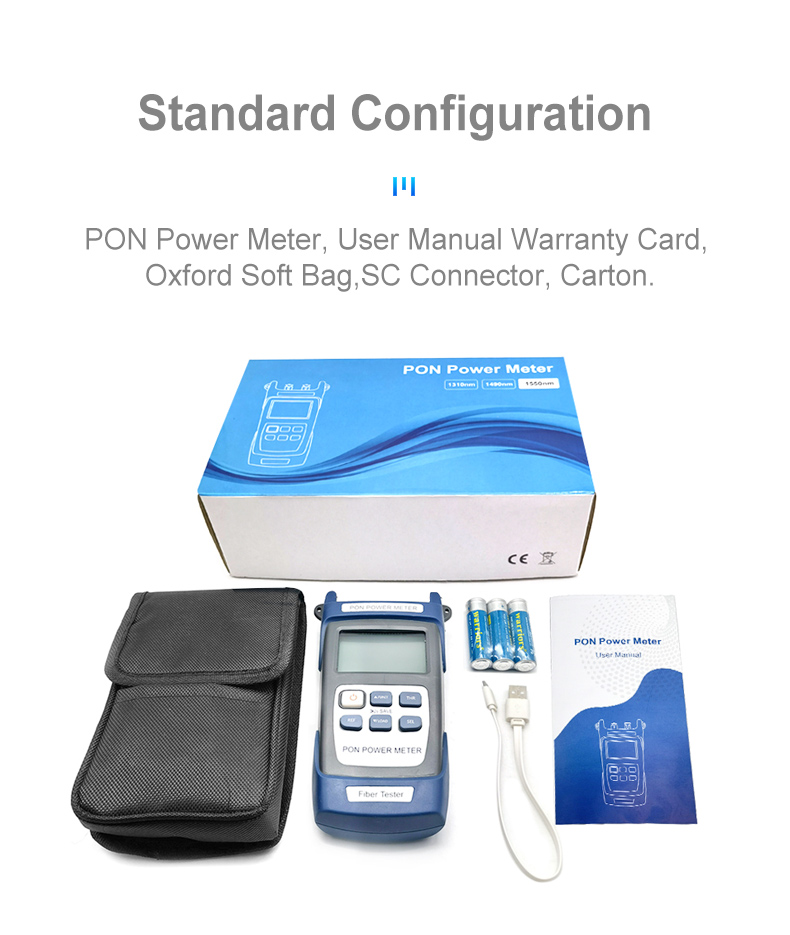

Package Included:
- 1 x TM581 Power Meter
- 1 x USB Cable
- 1 x Oxford Soft Case
- 1 x Box
- 1 x User Manual

Note:
- There are two connectors type of PON Power Meter: SC/PC and SC/APC, customers must specify the connector type before ordering this model.
- Battery is not included.
