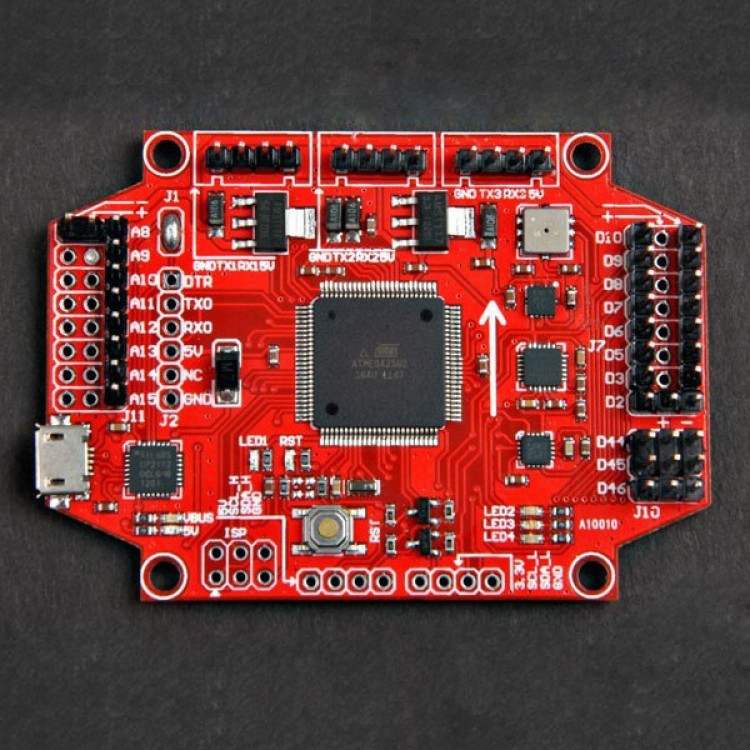

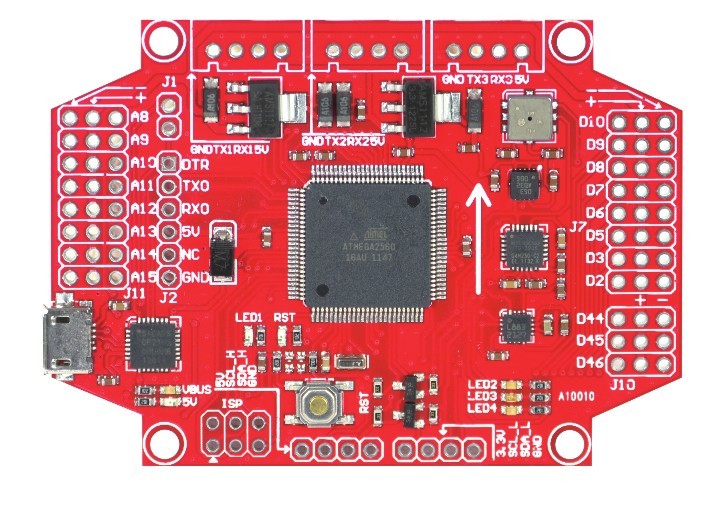

Top Version MWC MEGA 2560 9DOF Flight Control Board Care Free + Self Return -X Mode

Availability: Out Of Stock

  • Price:$91.64
  • Price in reward points: 916 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $89.81 $87.97 $85.23 $81.56 Contact US
Quantity:

Top Version MWC MEGA 2560 9DOF Flight Control Board Care Free + Self Return -X Mode
Description
:
- Support GPS HOLE(GPS Fixed Position Suspend),GPS HOME (self-return Function)
- Support all MWC Firmware,High extend capacity
- Small size,Standard 45x45mm mounting holes

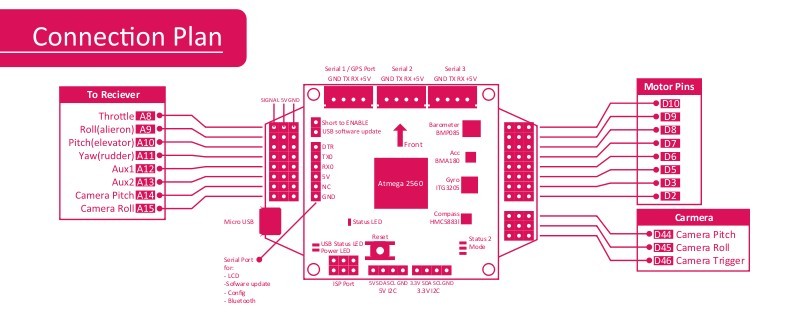

- 6 input channels for standard receiver and PPM SUM receiver
- Up to 8-axis motor output

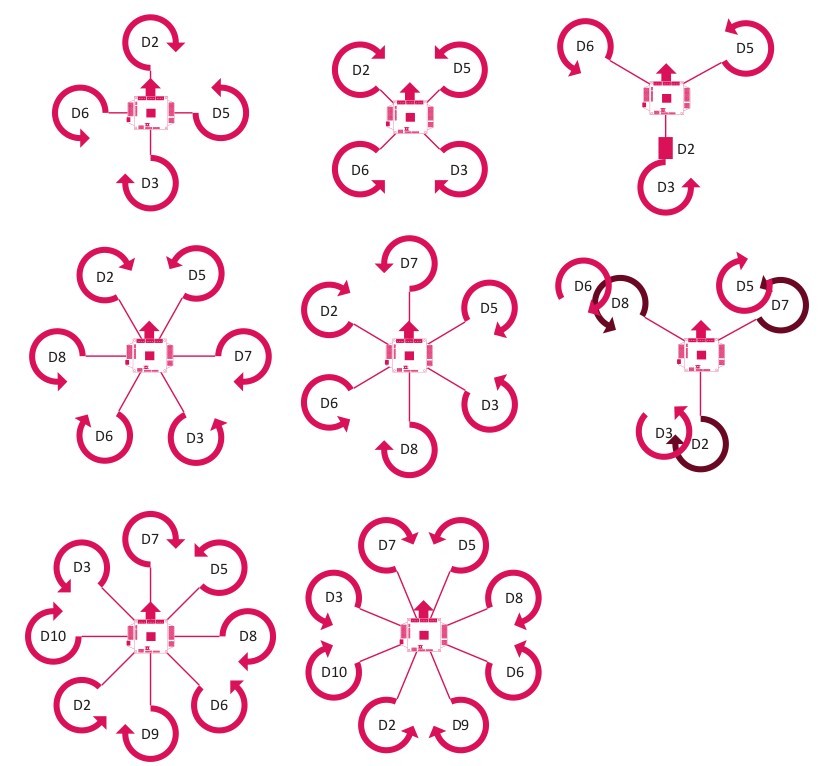

- support Y3,Y4,+4,X4,6,X6,Y6,8,X8 Flying Mode
- 3 Servo output for camera
- 8 Ch PPM input
- 3 status LED
- 4x serial port,support GPS function
- On board USB Board,doen't need FTDI module
- Full servo signal output,support most ESC
- Adopts Chip:1x Atmega 2560 25k flash,9DOF+Barometer(ITG 3205/BMA180/HMC5883+BMP085
- A I2C socket for extend sensor,I2C LCD/OLED display or CRIUS I2c-GPS NAV board
- Separate 3.3V and 5V LDO voltage regulator

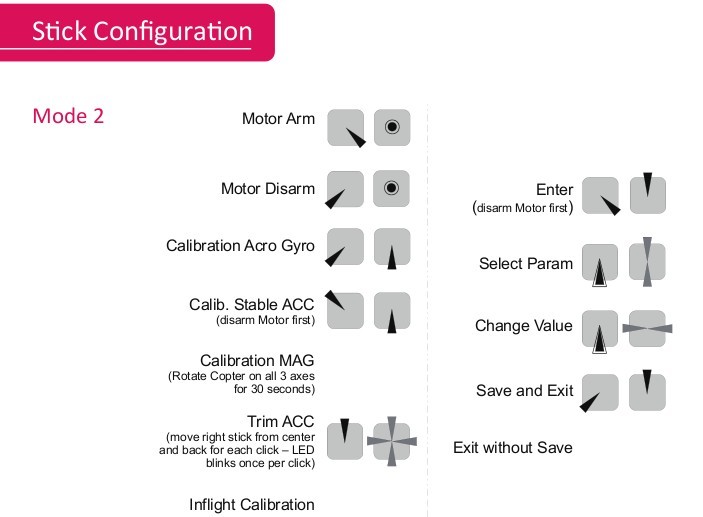

Flight mode
- Acro
- Level
- Alt Hold
- Head Lock
- Optional mode
- HeadFree (CareFree)
- GPS Hold (Need GPS receiver + I2C-GPS NAV Board)
- GPS Return to home position (Need GPS receiver + I2C-GPS NAV Board)

User Manual Download: Mega 1    Mega2   Mega 3
