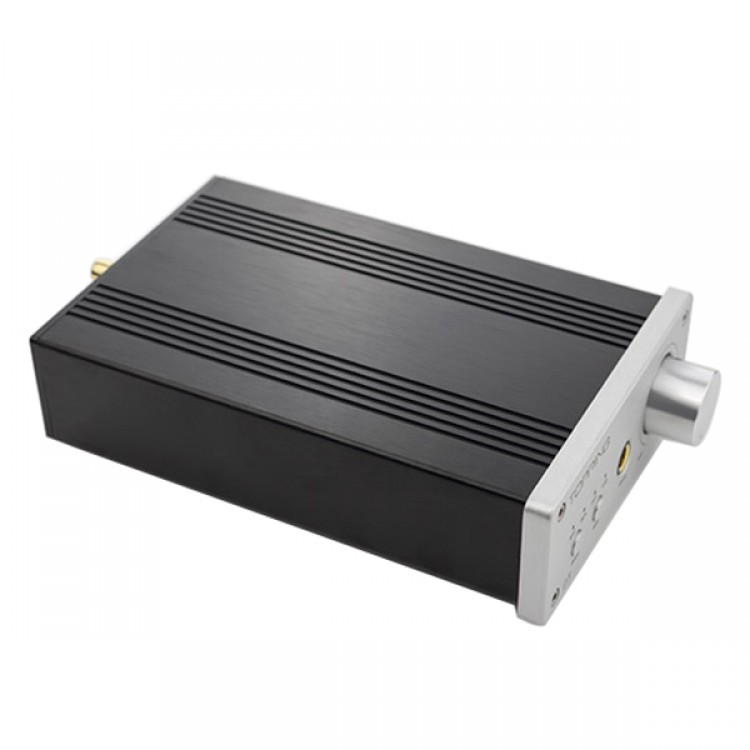

Topping D3 24Bit 192kHz USB Optical Coaxial BNC DAC Headphone Amp Amplifier Silver

Topping D3 24Bit 192kHz USB Optical Coaxial BNC DAC Headphone Amp Amplifier Silver

Descriptions:
D3 can input RCA coaxial, BNC coaxial, fiber optic signal, supports a wide 16bit-24bit, 32kHz-192kHz;
D3 can connect the computer to become a good external USB sound card, USB supported range of up to 24bit/96kHz, through the drive can support ASIO;
In addition, D3 also take into account the AUX input, can be used as pure amp or preamp to use;
CS8416 + CS4398 + OPA2134 full HIFI devices finely tuned to get the perfect sound;
Amp output voltage swing of up to 19.2 volts, easily drive 600 ohm impedance headphones;
D3 with CNC precision machining aluminum shell and solid aluminum knobs, texture, feel better.


D3 features:
1, the whole band minimum distortion of only 0.0005%, which is more than ten million class professional audio test instrument measured
2, coaxial decoder, fiber optic decoder, external USB sound card, amp, pre-integrated design, a machine can solve the majority of users HIFI needs;
3, using the Cirrus Logic CS8416 coaxial receivers with top decoder CS4398 combination, to achieve 16bit-24bit, 32kHz-192kHz full support;
4, built SOLO amp, the output swing high, regardless of driving high impedance headphones or as a pre-use are adequate;
5, full intelligent control, display, with only two buttons you can control all functions;
6, USB interface, using Taiwan's TE7022L TENOR program supports up to 24bit/96kHz, more can be achieved with the driver ASIO.
7, abandon the traditional mechanical switches, the introduction of FET switch for the machine to reduce the internal resistance of the power supply while avoiding the circuitous routing;
8, sound mute switch circuitry, maximizing the impact of reducing the switching machine sound;
9, aluminum chassis using CNC machining centers precision machining, giving you superior visual impact and operation of hand;
10, is widely recognized quality devices using fans to create the best quality and performance, such as: Japan, KOA resistors, Germany WIMA capacitors, Germany's Siemens capacitors, Japanese capacitors ...... nichicon Audiophile.
11 thick EPE packaging, even with fiery couriers can ensure that no damage to the interior.
12 overall chassis with brushed appearance while in the tank sandblasting process, making D3 also has two kinds of texture
13.4 LED instructions respectively four kinds of digital input while flashing to indicate the conventional Unlock instructions.
14 As the built-in MCU control, intelligent machine operation / display, two small button you can control all functions.
15 extension products using original toroidal power indicator light, although this design has been many brands Reference imitation, but still classic.
16 rich input and output interface. Extensive use gold-plated interface to ensure smooth signal transmission.
17 All logo laser engraving process, durable do not fade
18.D3 using CNC machined aluminum shell, jumbo 3MM 8MM front and rear panels and solid aluminum knobs

Technicals Specifications:

Analog audio inputs: RCA * 1
Digital audio input interface USB + Fiber + RCA + BNC Coaxial Coaxial
Block 6.35mm headphone amp output interface
Sample median 16-24bit
Sampling frequency 32-192kHz (USB up to 96kHz)
Single Weight Approximately 588g
Dimensions (including protruding parts) 20CM * 5CM long deep * 11.5CM High

Amp parameters
Range of 16-600Ω load impedance
Maximum output power 165mW (RL = 32Ω, THD + N = 1%)
110mW (RL = 300Ω, THD + N = 1%)
70mW (RL = 600Ω, THD + N = 1%)
Minimum Distortion 0.0007% (RL = 32Ω, Pout = 50mW)
Typical Distortion (1kHz) 0.0032% (RL = 32Ω, Pout = 50mW)
4-32kHz frequency response range
Frequency response flatness 0.04dB (20-20kHz)
Input Sensitivity 2.3Vrms
Noise floor <10μV
Gain (1kHz) 9dB
110dB SNR
19.2V output voltage swing

Decoder parameters
Line Out Output Level 2.38Vrms 1kHz
Minimum distortion 0.00050% (sampling frequency 96kHz)
Typical Distortion (1kHz) 0.00082% (sampling frequency 96kHz)
Dynamic range 117dB (sampling frequency 96kHz)
Frequency response flatness 0.04dB (20-20kHz)
Background noise <5μV (20-20kHz)
114dB SNR
Static power consumption of about 3.3W
Maximum sampling rate 96kHz USB interface
Optical fiber, coaxial maximum sampling rate 192kHz

Packages:
- A topping tp-d3 unit-Silver
- A chinese and english manual
- A power supply
- A usb cabl
- A 6.35 to 3.5 plug one
