Topping TP32EX 50WPC TK2050 T-AMP LED Coaxial USB DAC Headphone Amplifier + Remote Control-Black

Topping TP32EX 50WPC TK2050 T-AMP LED Coaxial USB DAC Headphone Amplifier + Remote Control-Black

Description:
- A high performance T-AMP with built-in Coaxial & USB DAC, Headphone amplifier, LED display and remote control
- T-Amp: Tripath TK2050
- 24bit 96k or 16bit 192k USB DAC
- 24bit 192k Coaxial DAC
- Full speaker protection
- Color: Black

HIFI Electronic Components:
- CS3310 Digital volume control
- TOKO digital amplifier Inductance
- Nichicon FW Capacitance
- EPCOS Capacitance
- TAKAMISAWA Relay
- OMROM Relay

Features:
- Analog input RCA input x 1 (L & R channel)
- Digital input USB, Coaxial
- Amplifier output Binding Post (L & R channel), BTL output
- Headphone output 6.35mm
- Maximum sample bit of DAC 24bit
- Maximum sample rate of DAC 192kHz
- Dimensions Approx 18.5CM x 11.5CM x 5CM

Amplifier:
- Suitable Speaker Impedance 4-8
- Maximum output power:
  50W (RL=4, THD+N=10%)
  30W (RL=8, THD+N=10%)
- Frequency response 20-20kHz

Head Amp:
- Suitable Headphone Impedance 16-300
- Maximum output power  140mW (RL=32, THD+N=1%)
- Maximum output voltage swing 10Vpp
- Minimum THD+N 0.002% (RL=32, Pout=45mW)
- THD+N(@1kHz) 0.02%
- Frequency response 20-20kHz±2.0dB
- Input sensitivity 750mVrms
- Noise <20V
- Gain(@1kHz) 8.6dB

DAC:
- THD+N(@1kHz) 0.0057%
- Maximum sample bit of USB  24bit (maxmum 96kHz)
- Maximum sample rate of USB  192kHz (maximum 16bit)
- Maximum sample bit of S/PDIF  24bit
- Maximum sample rate of S/PDIF  192kHz

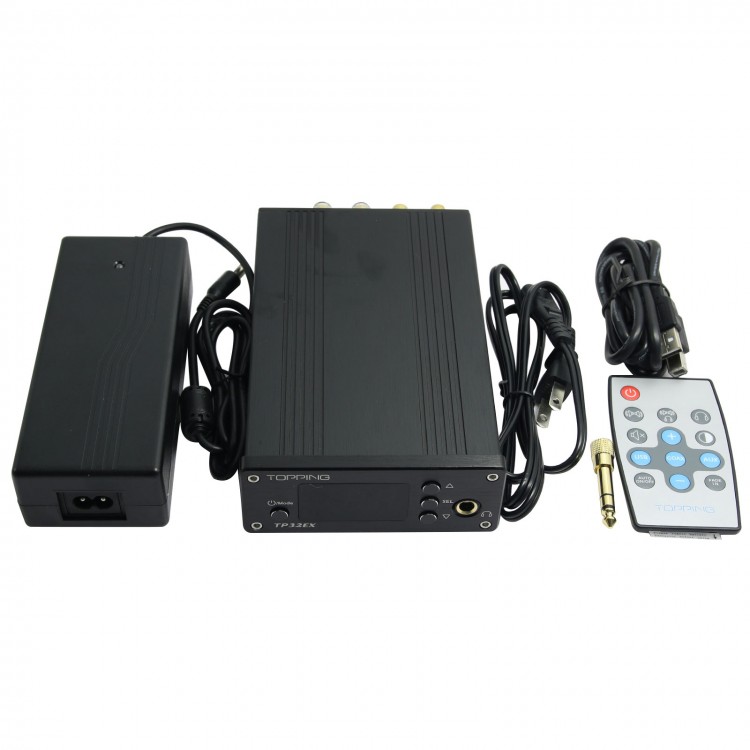

Package included:
- TP32EX * 1
- USB cable * 1
- RC11 remote * 1
- User  manual * 1
- 24V5A adapter * 1
