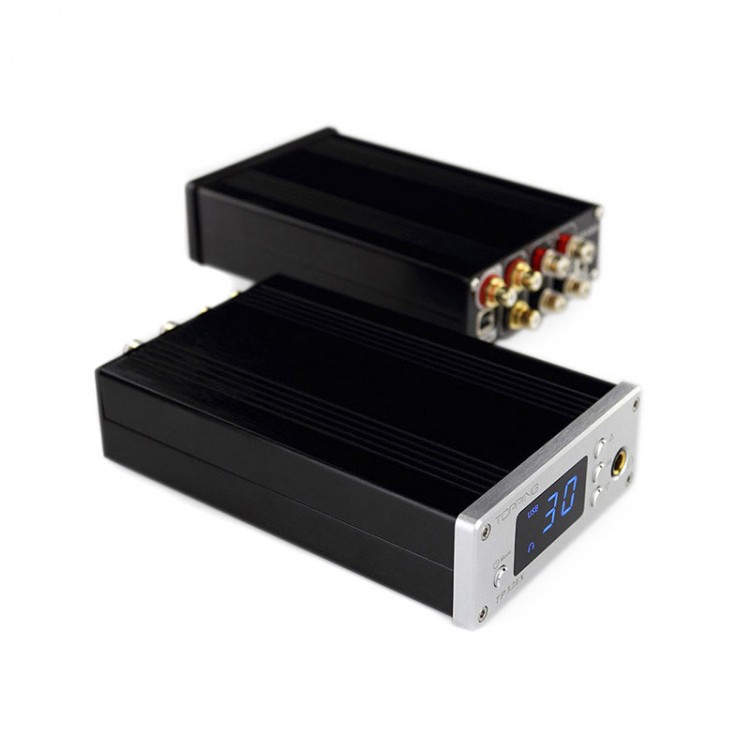

TOPPING TP32EX HIFI Digital AMP Headphone Amplifier Class T 50Wx2 USB DAC TK2050 with Remote Controller

TOPPING TP32EX HIFI Digital AMP Headphone Amplifier Class T 50Wx2 USB DAC TK2050 with Remote Controller

Description:
- A high performance class T AMP with built-in Coaxial & USB DAC, Headphone amplifier, LED display and remote control
- T-Amp: Tripath TK2050
- VIA VT1620 USB interface
- Cirrus Logic CS8416 receiver
- Cirrus Logic CS4392 DAC
- TI OPA2134 OP AMP
- Cirrus Logic CS3310 digital volume
- Remote controller
- Color: Silver/black, please leave us a message about your option, or delivered randomly.

HIFI components:
- TOKO inductance DASM1620
- Nichicon FW capacitor
- EPCOS capacitor
- TAKAMISAWA relay
- OMROM relay

Features:
- Analog input RCA input x 1 (1CH stereo input )
- Digital input USB, Coaxial  (RCA interface)
- Amplifier output Binding Post (L & R channel), BTL output
- Headphone output 6.35mm
- Maximum sample bit of DAC: 24bit
- Maximum sample rate of DAC: 192kHz
- Dimensions: Approx 18.5CM x 11.5CM x 5CM

Amplifier:
- Suitable Speaker Impedance 4-8Ohm
- Maximum output power:
  50W (RL=4Ohm, THD+N=10%)
  30W (RL=8Ohm, THD+N=10%)
- Frequency response 20-20kHz

Head Amp:
- Suitable Headphone Impedance 16-300Ohm
- Maximum output power  140mW (RL=32Ohm, THD+N=1%)
- Maximum output voltage swing 10Vpp
- Minimum THD+N 0.002% (RL=32Ohm, Pout=45mW)
- THD+N(@1kHz) 0.02%
- Frequency response 20-20kHz±2.0dB
- Input sensitivity 750mVrms
- Noise <20V
- Gain(@1kHz) 8.6dB

DAC:
- THD+N(@1kHz) 0.0057%
- Maximum sample bit of USB  24bit (maxmum 96kHz)
- Maximum sample rate of USB  192kHz (maximum 16bit)
- Maximum sample bit of S/PDIF  24bit
- Maximum sample rate of S/PDIF  192kHz

Package included:
- TP30MK2 amplifier * 1
- USB cable * 1
- RC11 remote * 1
- User  manual * 1
- 24V5A adapter * 1
