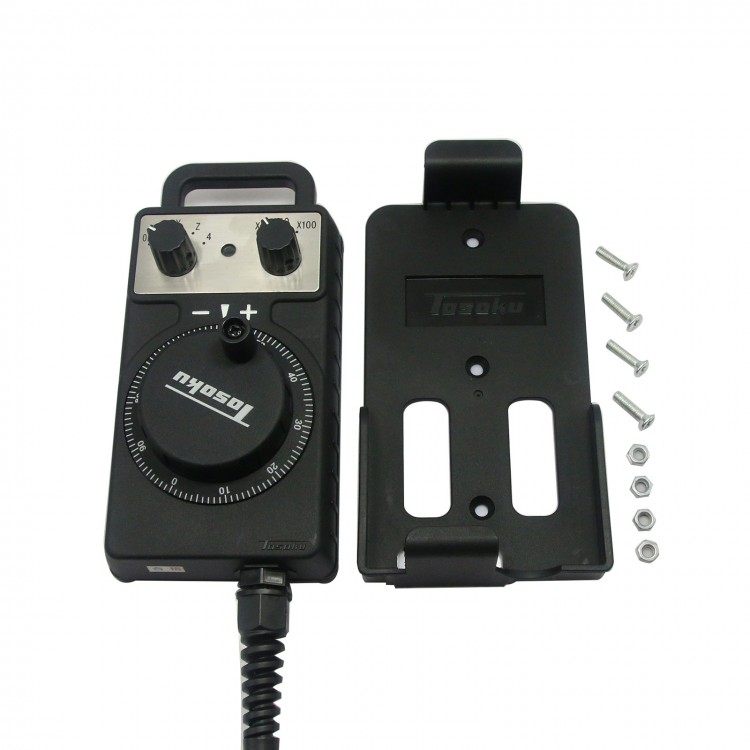

TOSOKU HC11D CNC Differential Handwheel Handle Manual Pulse Generator for Simens System
Descriptions:
- HC1 is the most compact model of all our MPG series, developed for usage in numerous industrial areas.
- Compact, thin-line and lightweight (26mm)
- Axis/Multiplication selection can be set according to customers' requirement
- Sealed structured box
- RoHS compliant (box/cord)
- Exclusive easy-to-attach holder as a standard accessory
- Rubber magnet for option
Body:
- Dimension :124×73×26(mm)*
- LED Visible Indicator: DC24V Green
- Noise Immunity EN50082-2 compliant
Curl Cord:
- 19/25-conductor shielded cable
- 19-conductor: select from 2m, 3m, 4m, 5m
- 25-conductor: select from 3m, 5m
- (We will select either 19 or 25-conductor in accordance with required functions)
- For further details, please see the catalogues for curl cords
Specifications:
- for Simens and other system
- Model:HC11D
- Voltage: DC5V
- Output resolution:100PPm
- Differential output
User Manual Download link:http://www.tosoku-inc.co.jp/en/product/pdf/h-pulse/hc1.pdf
