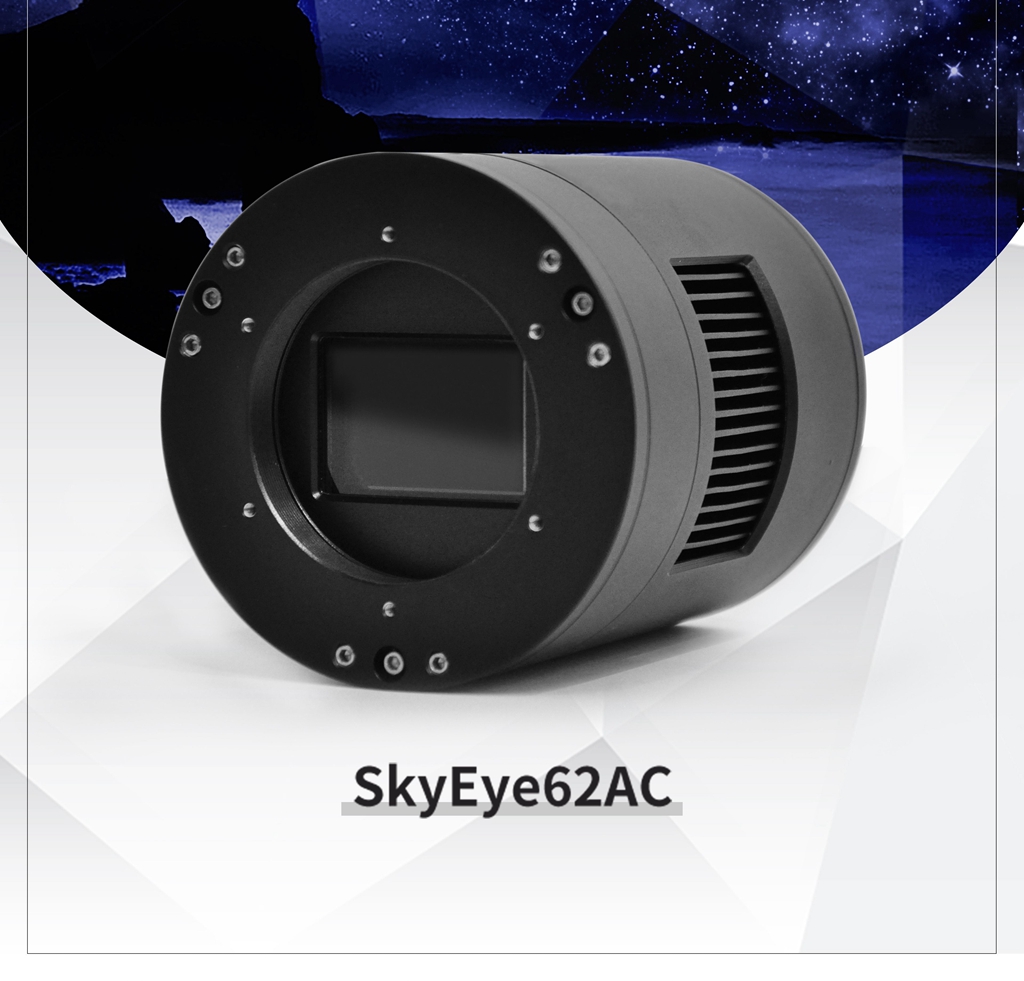

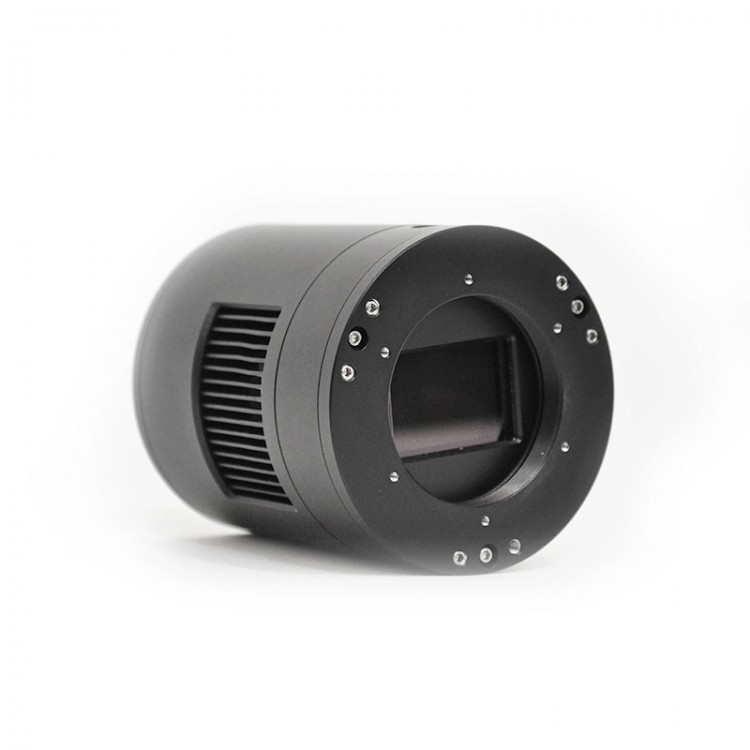

ToupTek SkyEye62AC Astronomical IMX455 Colorful Camera Full Frame TEC Cooling for Deepsky Photography

ToupTek SkyEye62AC Astronomical IMX455 Colorful Camera Full Frame TEC Cooling for Deepsky Photography

Description:
- The SkyEye62AC camera is the colored version of SkyEye62AM, with full frame sensor, precise temperature regulation, ultra-low readout noise and zero amp-glow, it is mainly used for deep sky photo shooting. Its extraordinary performance and extensive usage will give you great astrophotography experience.

Features:
- IMX 455 Color CMOS Sensor
- Resolution: 9568 x 6380
- 3.76 um Square Pixels

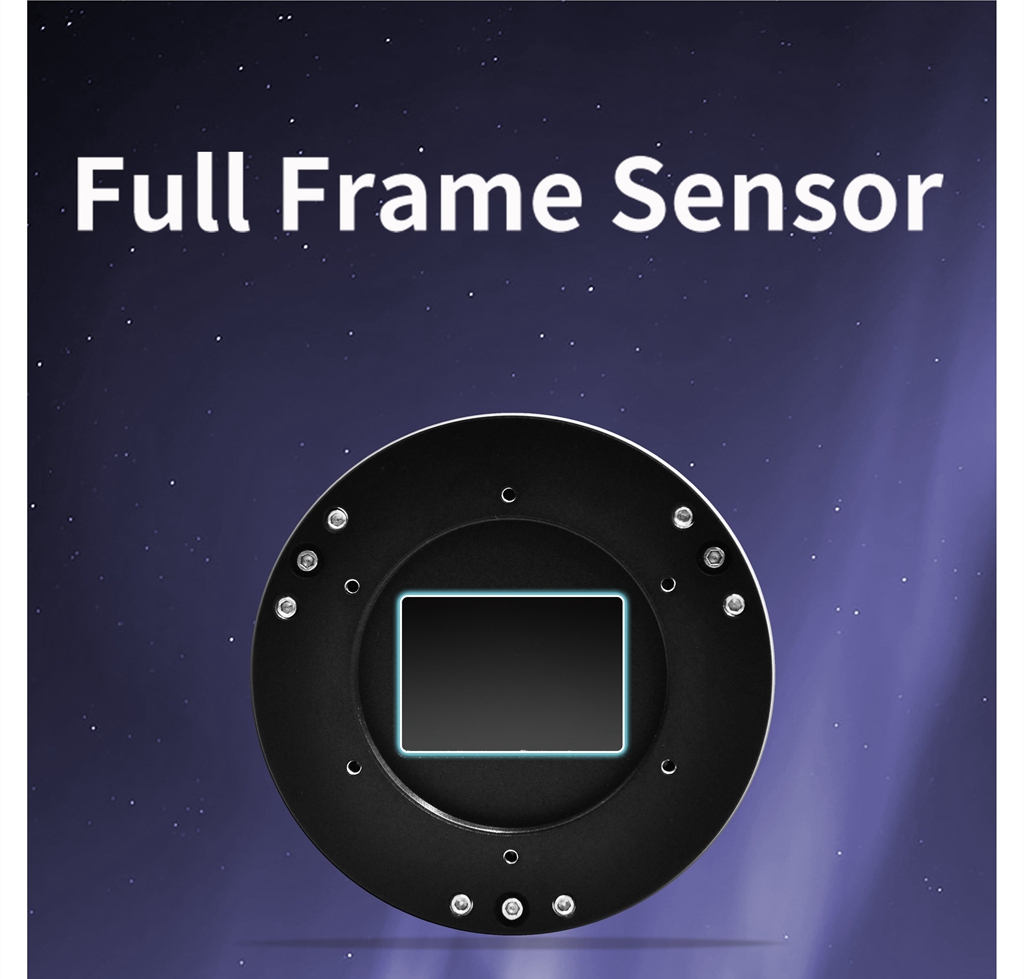

- Full Frame Optical Format
- 16-bit ADC
- 512Mbyte Memory Onboard
- Precise Temperature Regulation

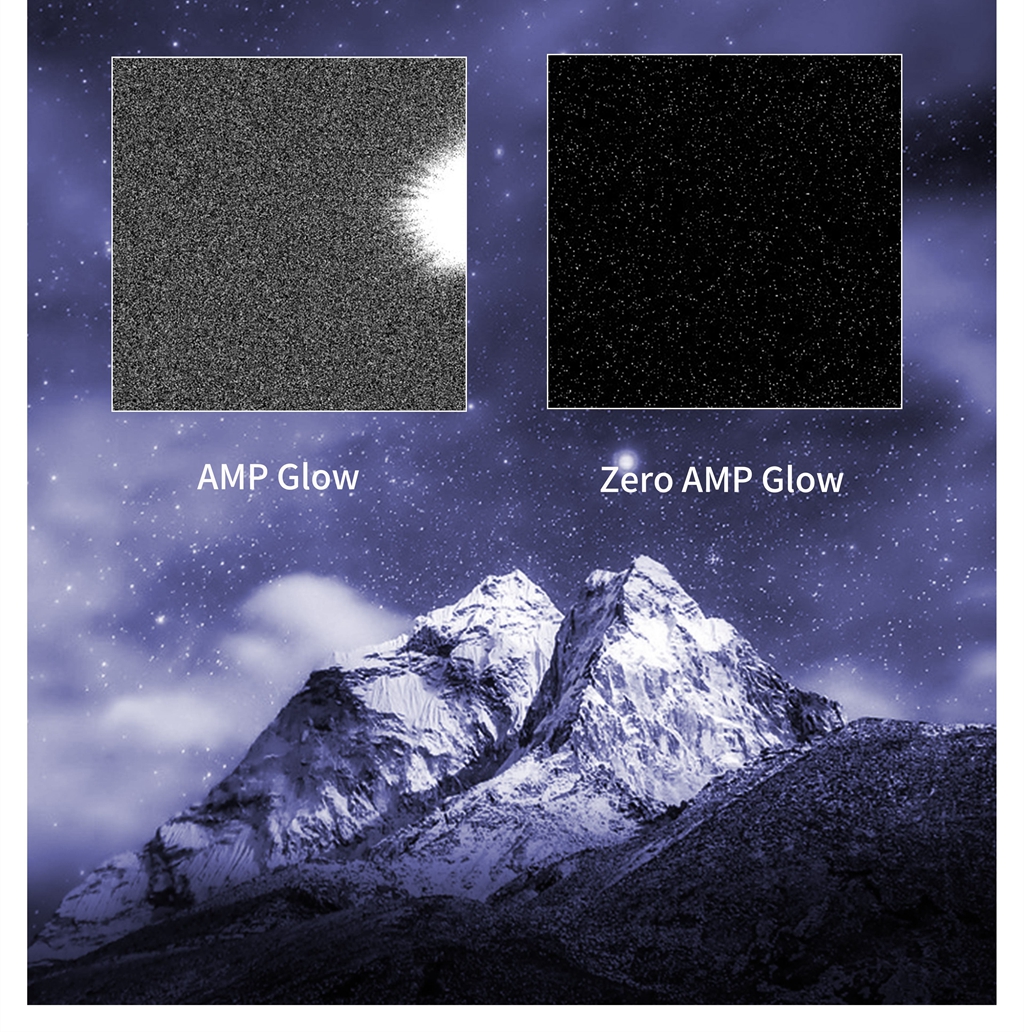

- Zero Amp-Glow
- Sensitivity: 484.18mV with 1/30s
- Ultra-Low Noise: 0.89 to 1.72 e- (Low Noise Mode)
- Support Low Noise Mode/ High Frame Rate Mode (6.2 FPS at all Pixel Readout 8 bit)
- Support HCG Mode/ LCG Mode
- SNR Max: 47.0 dB (Low Noise Mode)
- Dynamic Range: 85.8 dB (Low Noise Mode)
- -30°C below ambient under short exposure/ -35°C under long exposure time (> 1s)

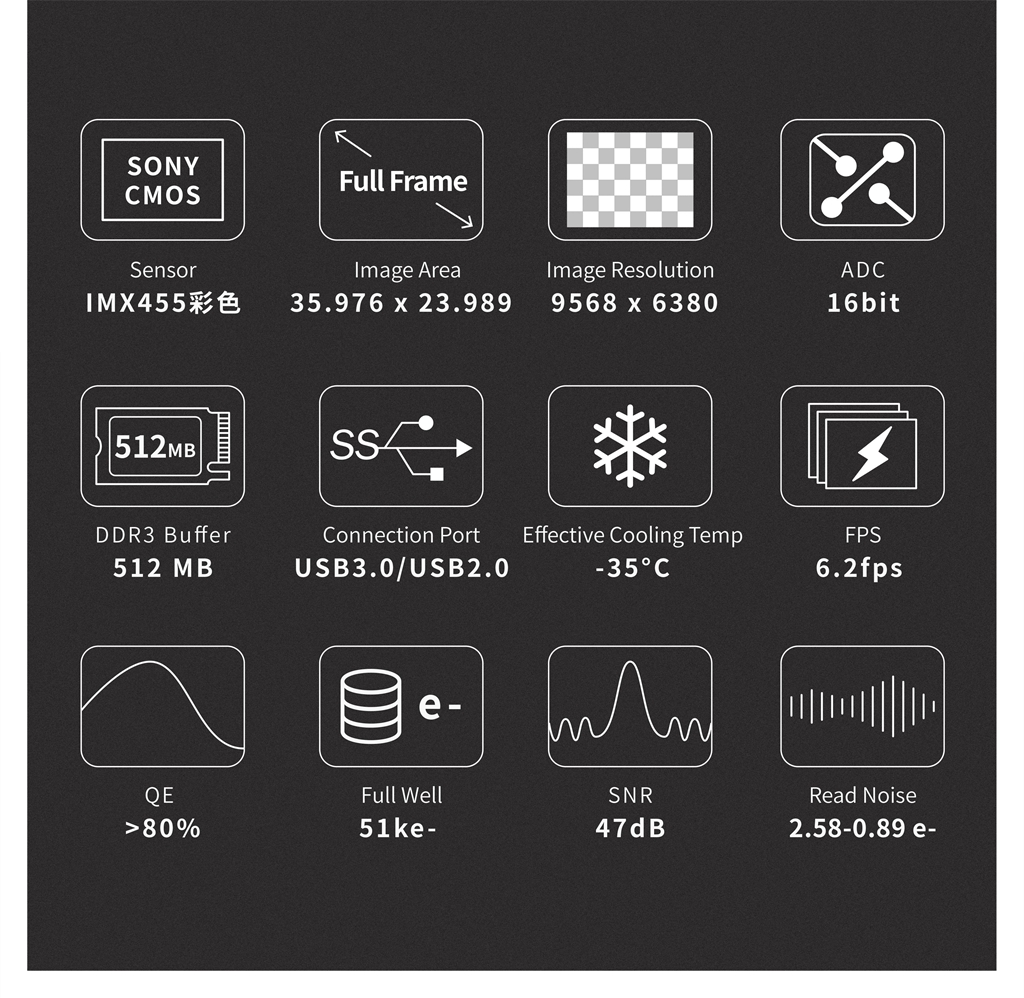

Specification:

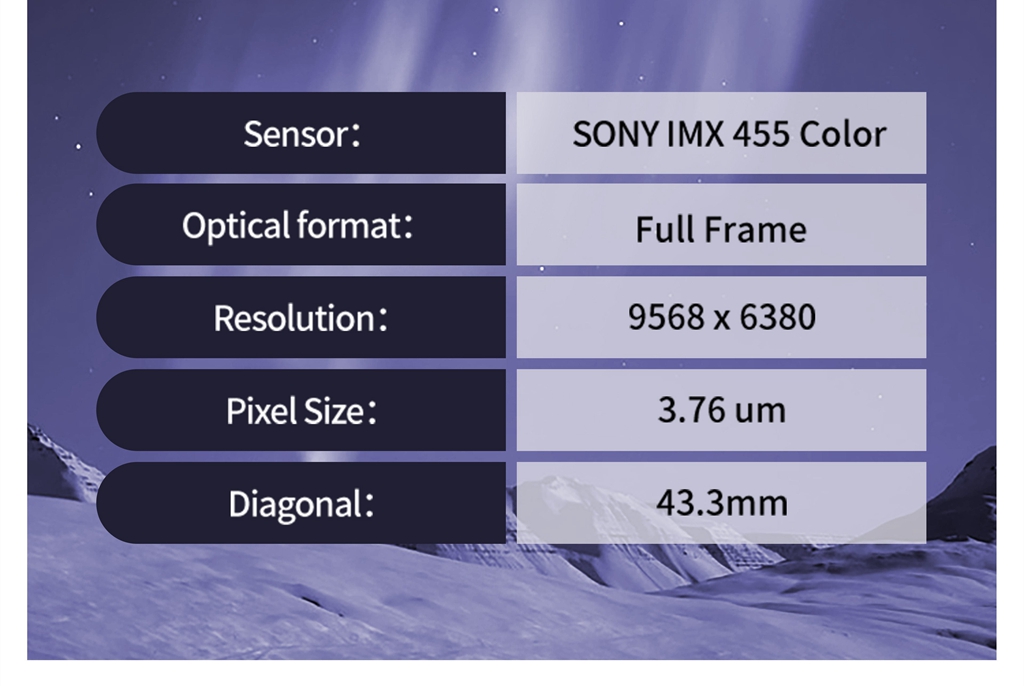

- Sensor: for Sony IMX455 Color CMOS
- Diagonal: 43.3 mm
- Image Resolution: 61 mega pixels, 9568 x 6380
- Pixel Size: 3.76µm x 3.76µm
- Image Size 35.976mm x 23.989mm
- Shutter Type: Rolling Shutter
- Exposure Time: 0.1ms - 3600s
- Gain: 1x - 150x
- SNR: 47.0dB
- Dynamic Range: 85.8dB (Low Noise Mode)
- Read Noise: 2.58 - 0.89 e-
- Read Noise (Low Noise Mode): 1.72 - 0.89 e-
- Read Noise (LCG): 3.98 - 1.52 e-
- QE Peak: > 80%
- Full Well: 51ke- (107ke- at LCG)
- ADC: 14bit
- DDR3 Buffer: 512MB (4Gb)
- Connection Port: USB3.0/USB2.0
- Camera Adaptor: M54 x 0.75
- Protect Windows: IR CUT

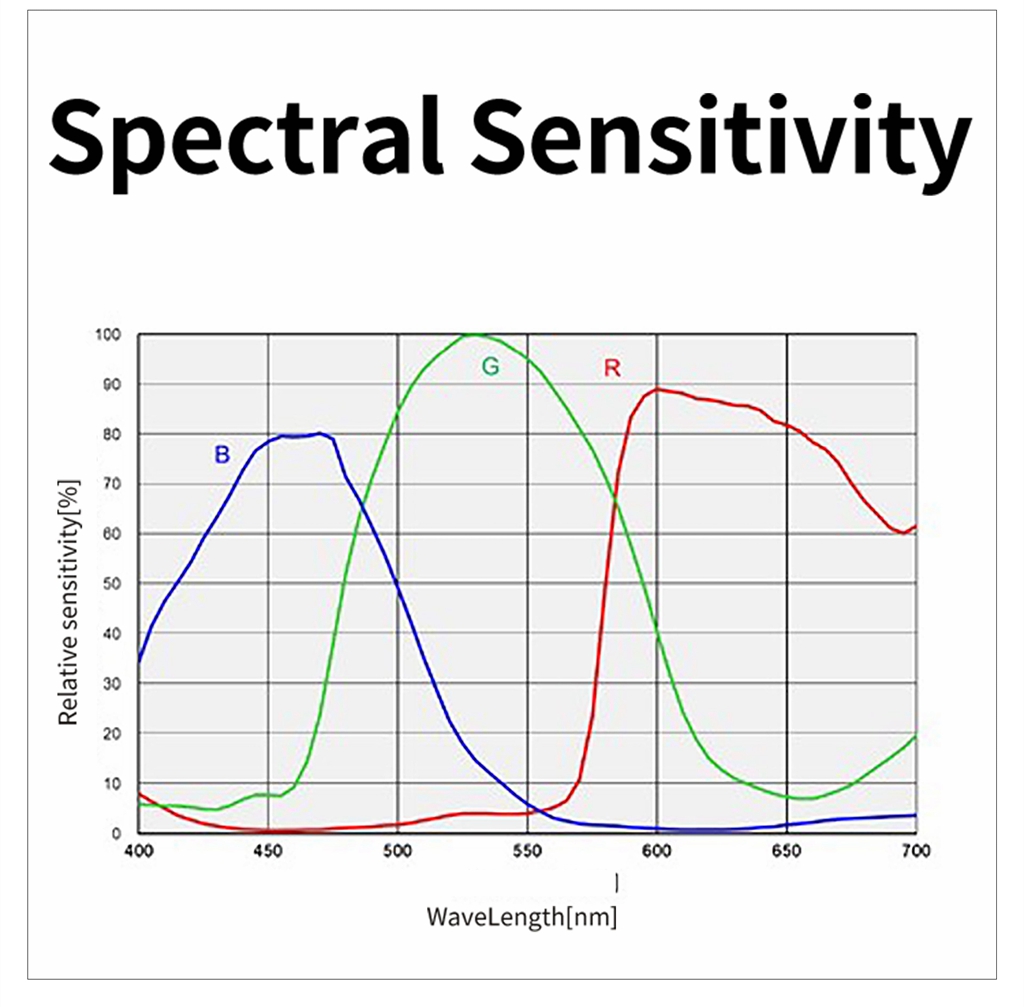

- Spectral Range: 380 - 690nm (with IR-cut Filter)
- Control SDK: for Windows/Linux/macOS/Android Multiple Platform SDK (for Native C/C++, for C#/VB.NET, for Python, for Java, for DirectShow, for Twain, etc.)
- Recording System: Still Picture and Movie
- Camera Dimensions: (diameter) 89 x (height) 103 (mm)
- Camera Weight: 0.718kg
- Back Focus Distance: 17.5mm
- Cooling: Two stage TEC
- Effective Cooling Temp: -30°C below ambient under short exposure/ -35°C under long exposure (> 1s)
- Supported OS:
  For Microsoft Windows XP / Vista / 7 / 8 /10 (32 & 64 bit)
  For OSx (Mac OS X)
  For Linux

Max FPS at Resolution (USB 3.0):
- 16bit: 3.1 FPS at 9568 x 6380; 9.4 FPS at 4784 x 3190; 27.8 FPS at 3184 x 2124
- 8bit: 6.2 FPS at 9568 x 6380; 18.8 FPS at 4784 x 3190; 55 FPS at 3184 x 2124

Max FPS at Resolution Low Noise (USB 3.0):
- 16bit: 1.9 FPS at 9568 x 6380 (Low Noise Mode is only available in All Pixel Readout Mode)
- 8bit: 6.2 FPS at 9568 x 6380 (Low Noise Mode is only available in All Pixel Readout Mode)

Max FPS at Resolution (USB 2.0):
- 16bit: 0.4 FPS at 9568 x 6380; 1.5 FPS at 4784 x 3190; 3.3 FPS at 3184 x 2124
- 8bit: 0.7 FPS at 9568 x 6380; 2.9 FPS at 4784 x 3190; 6.6 FPS at 3184 x 2124

Max FPS at Resolution Low Noise (USB 2.0):
- 16bit: 0.3 FPS at 9568 x 6380 (Low Noise Mode is only available in All Pixel Readout Mode)
- 8bit: 1.2 FPS at 9568 x 6380 (Low Noise Mode is only available in All Pixel Readout Mode)

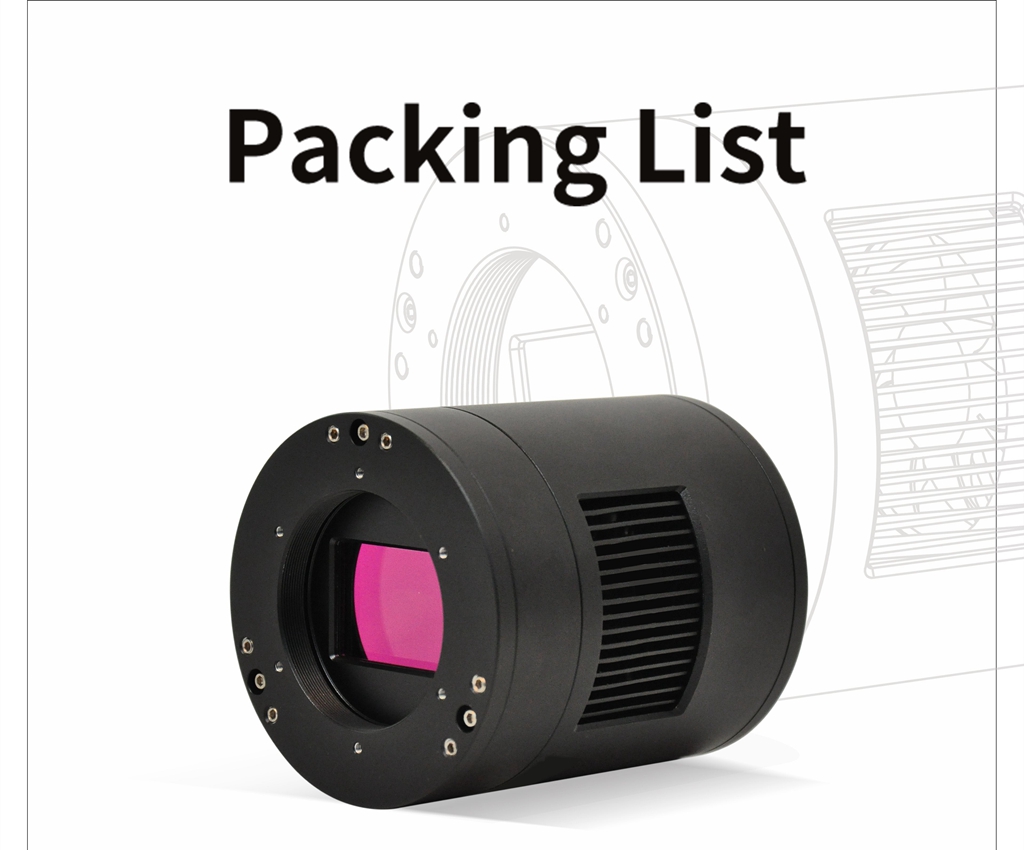

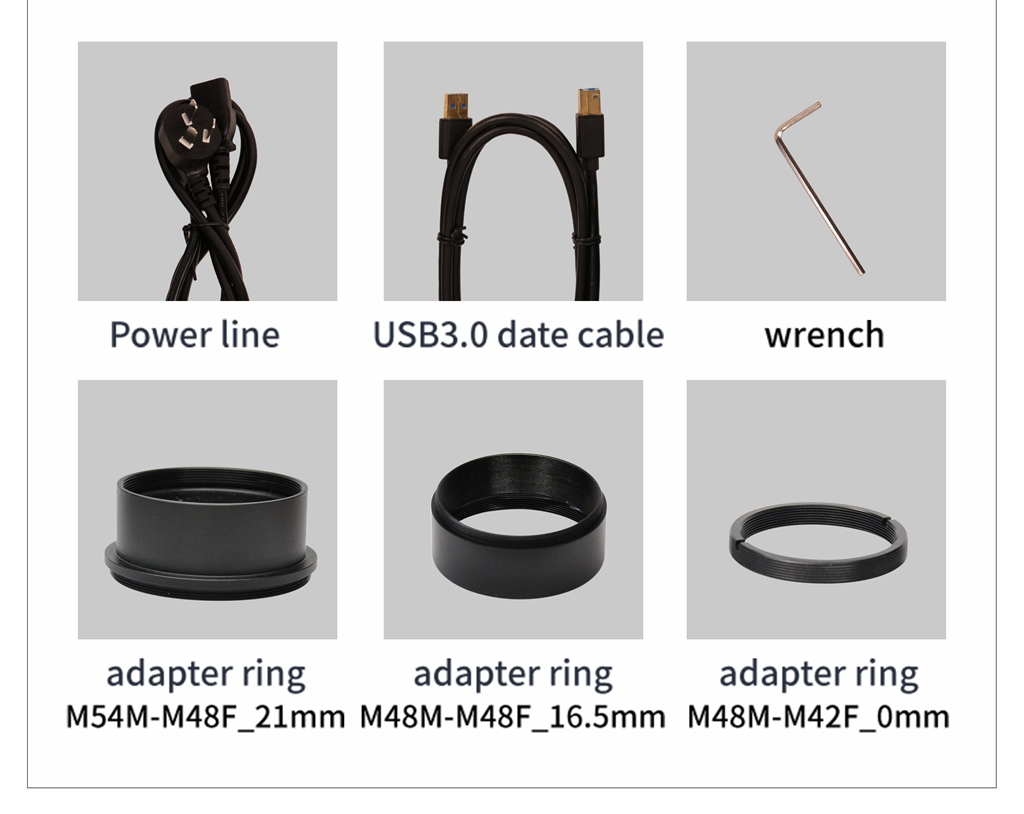

Package Included:
- 1 x Camera
- 1 x Power Line
- 1 x USB3.0 Data Cable
- 1 x Wrench

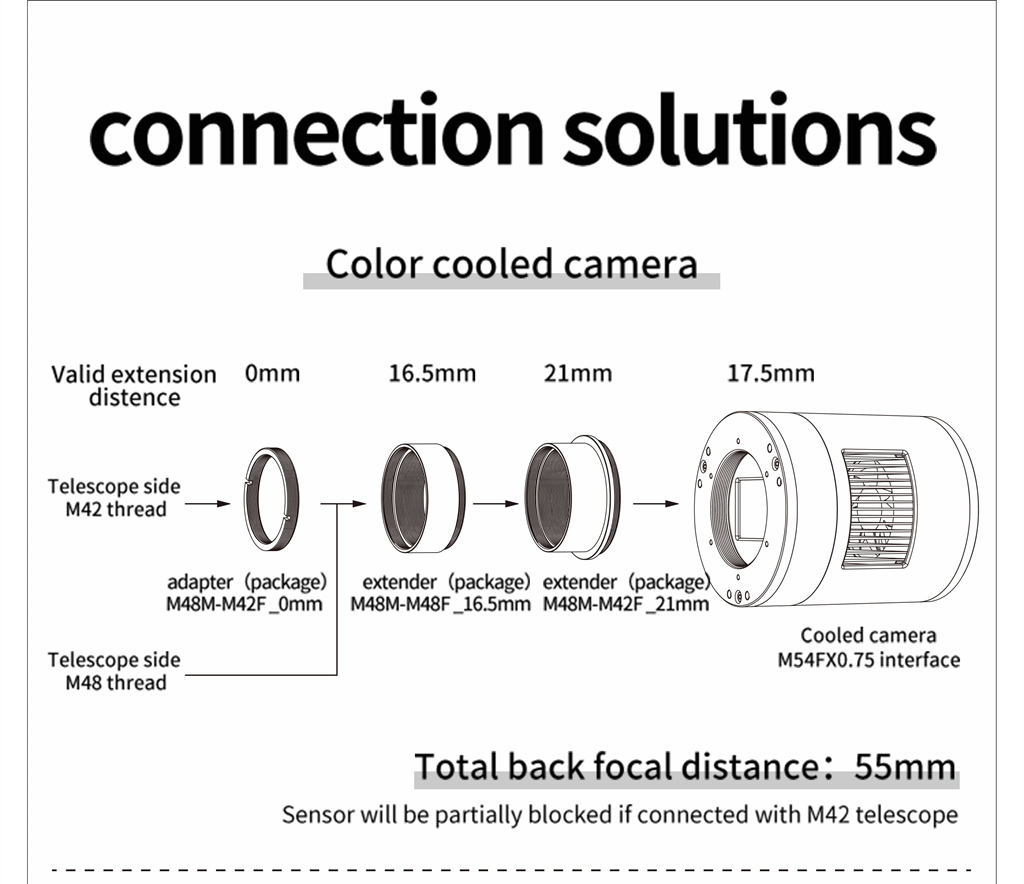

- 1 x Adapter Ring M54M-M48F_21mm
- 1 x Adapter Ring M48M-M48F_16.5mm
- 1 x Adapter Ring M48M-M42F_0mm
