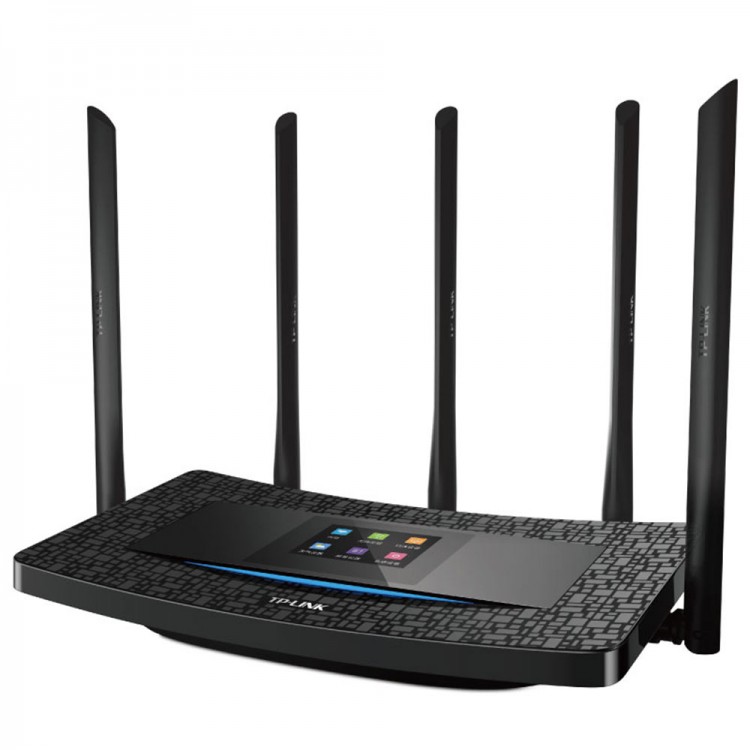

TP-LINK Wireless Router 1300M 11AC Dual Band Touch Screen 2.4GHz&5GHz Wifi Repeator Networking TL-WDR6510

TP-LINK Wireless Router 1300M 11AC Dual Band Touch Screen 2.4GHz&5GHz Wifi Repeator Networking TL-WDR6510

Hardware Specifications
- Protocol standards: IEEE 802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b; IEEE 802.3, IEEE 802.3u;
- Wireless rate: 2.4GHz band: 450Mbps; 5GHz band: 866 Mbps
- Screen: 320 * 240,2.4 inches, with resistive touch screen; Equipped with a resistive touch pen;
- Interface: 4 * 10 / 100M adaptive LAN port auto-flip (Auto MDI / MDIX); 1 * 10 / 100M Adaptive WAN port supports auto-flip (Auto MDI / MDIX);
- Button: Reset button;
- LED: System instructions; Button lights;
- Antenna: 3 * root non-removable external 2.4GHz omnidirectional antenna; 2 * root non-removable external omnidirectional antenna 5GHz;
- Size: 242mm * 131mm * 41mm (L x W x H)

Basic functions:
- Wireless switch;
- SSID broadcasting switch;
- 2.4GHz channel selection: 1-13; 5GHz channel selection: 36,40,44,48,149,153,157,161,165
- Operating band selection: 2.4GHz, 5GHz
- 2.4GHz wireless modes are available: 802.11b only, 802.11g only, 802.11n only, 802.11b / g mixed, 802.11b / g / n mixed
- 5GHz Wireless modes are available: 802.11a / n mixed, 802.11ac / n / a mixed
- WDS wireless bridge.

Wireless Security:
- Wireless MAC address filtering;
- Wireless security function switch;
- WPA-PSK / WPA2-PSK, WPA / WPA2 security mechanism;
- Other features:Support wireless roaming;Wireless host status display;

Practical function:
- IP bandwidth control function;
- Parental control, Internet control;
- Forecast;
- Wireless time off;
- Peanut shell DDNS;

Network settings:
- WAN port connection type automatically detected;
- WAN port connection type support: PPPoE, dynamic IP, static IP;
- Dial mode type: Automatic dialing, on-demand dialing, manual dialing;
- MAC address modification and cloning;
- Static routing;
- DHCP settings:DHCP server;Client list;Static address assignment;
- Port Forwarding:Virtual Server;DMZ host;UPnP settings;
- Security Settings:IP and MAC address binding against ARP attacks;Parental control;Access control;

System Tools:
- Traffic statistics;
- System security log;
- Local Web management and control;
- Remote Web management;
- Configuration file import and export;
- Web software upgrades;

- Operating temperature: 0C to 40C;
- Storage temperature: -30C to 70C;
- Humidity: 10% to 90% RH non-condensing;
- Storage humidity: 5% to 90% RH non-condensing;

Packing includes:
-  AC1300 Wireless Router TL-WDR6510;
- Resistive stylus;
- Power adapter;
- User manuals;
- Warranty card;
