TP-Solar PRO20 Laser Distance Sensor 20M Outdoor Laser Distance Measuring Sensor Obstacle Avoiding
Features:
- Outdoor strong light laser ranging module
- Working range 0.2-20m/0.7-65.6ft
- Small size, weight only 6g/0.01 lb
- 940nm vcsel light source is used to make it not afraid of strong light. Suitable for indoor and outdoor scenes
- Measurement accuracy. 0.2-1m/0.7-3.3ft (±10cm/3.9"); 1-20m/3.3-65.6ft (±5%)
- Adjustable frequency 1-200Hz, support single measurement and continuous measurement
- Provide UART serial port. Suitable for UAV obstacle avoidance, intelligent transportation, rail safety, smart home, IoT, etc.
- Support for STM32, Arduino and Raspberry Pi
Technical Parameters:
- Weight: about 6g/0.01 lb
- Measuring range: 0.2-20m/0.7-65.6ft (100K LUX at 90% reflectivity)
- Measuring speed: 100Hz, 150Hz and 200Hz
- Measurement accuracy: 0.2-1m/0.7-3.3ft (±10cm/3.9"); 1-20m/3.3-65.6ft (±5%)
- Resolution: 1cm/0.4"
- Light source wavelength: 940nm
- Horizontal angle of view: 1~2deg
- Vertical field of view: 1~2deg
- Working voltage: 4.5~5.5V
- Power consumption: <100mA at 5V
- Working temperature: -10 to 60℃
- Storage temperature: -40 to 85℃
- Anti-ambient light: 20m/65.6ft at 100K LUX illumination
- Communication interface: TTL (Baud rate 115200)

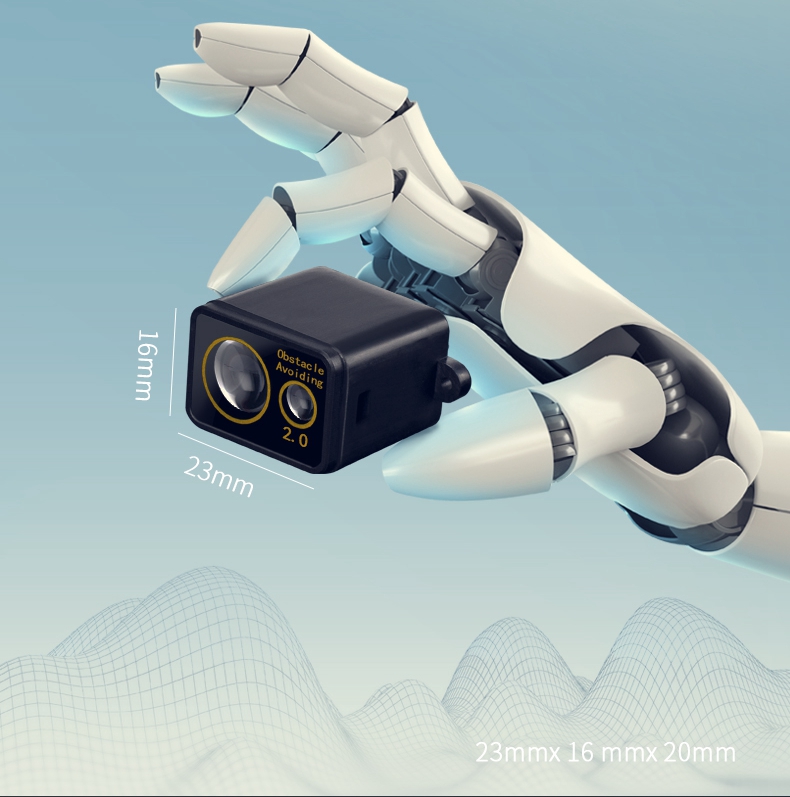

- Dimensions: 23 x 16 x 20mm/0.9 x 0.6 x 0.8"
Package Included:

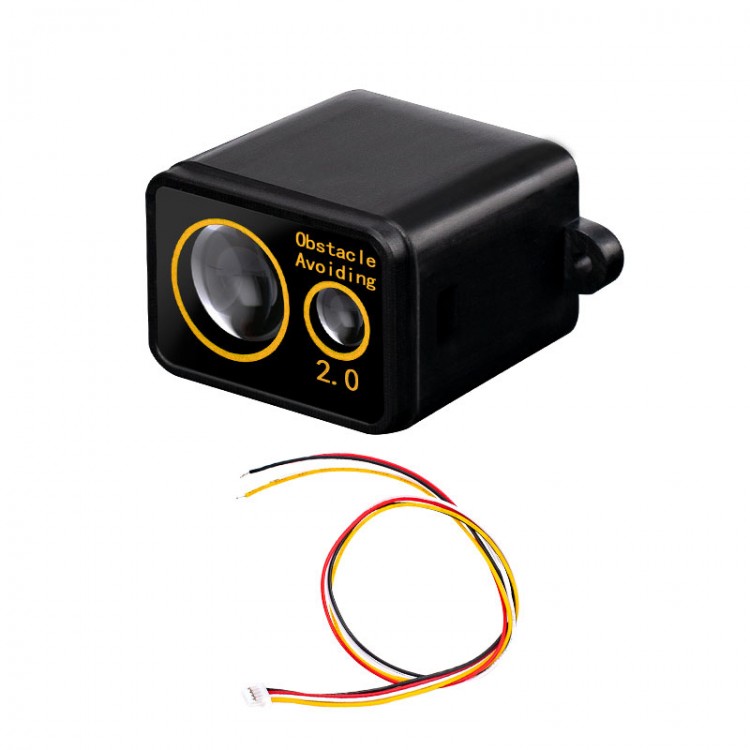

- 1 x Set of Laser Distance Sensor
