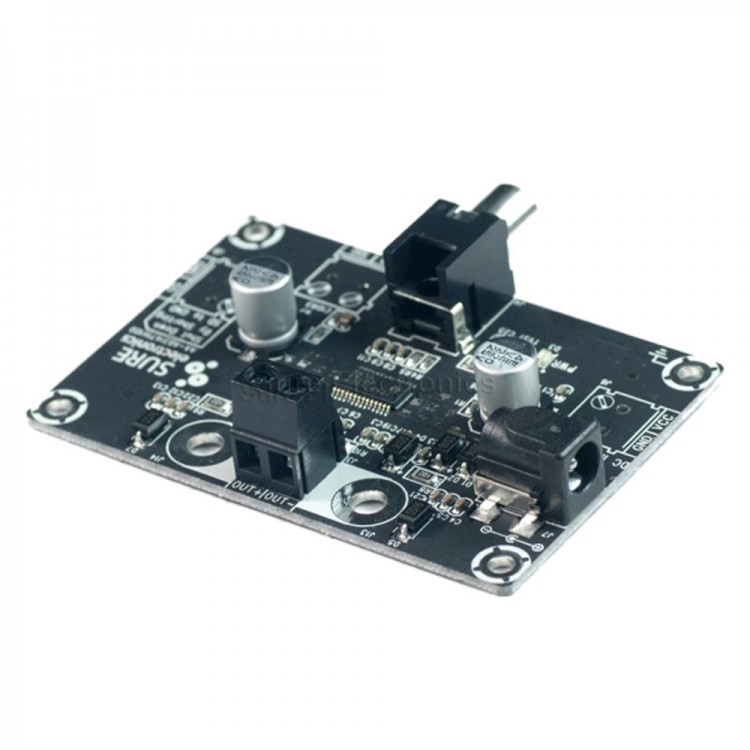

TPA3110 Class D 1x30W Digital Audio Amplifier Board Mini Stereo HIFI Power Amp
Description:
This class D audio amplifier board employs TI' TPA3110 Amplifier IC and supports mono amplification by using PBTL topology.
By means of dedicated PCB heatsink design,it is capable of delivering single channel maximum power 30W RMS 4ohm continuously without extraordinary heatsink.
Besides of built-in chip protection, ESD and spike protection components used throughout input and output of the amplifier board ensure its robustness and reliability.
Features:
- Screwing to chassis conveniently
- Shut down easily by external pulled down to GND
- Size:3inchX2.7inchX0.6inch
- Weight: 22g
- Thermal and short circuit protection
- Startup and power down pop elimination
- Analog single ended signal input(RCA)
- Output 30W@4ohm 16V DC THD+N 10%
- 20W@4ohm 16V DC THD+N 1%
Applications:
- Desktop Amplifier
- Personal Computers
- Microphone Preamplifier
- Home DIY
- Vending Machines, Lifts, Interactive Kiosks
- Home Theater Receiver
- Car Audio
- Multi-channel Distribution
- Background Music Systems
- Musical Instrument Amplifiers
Package content:
- 1 x 30W Class D Audio Amplifier Board x1
