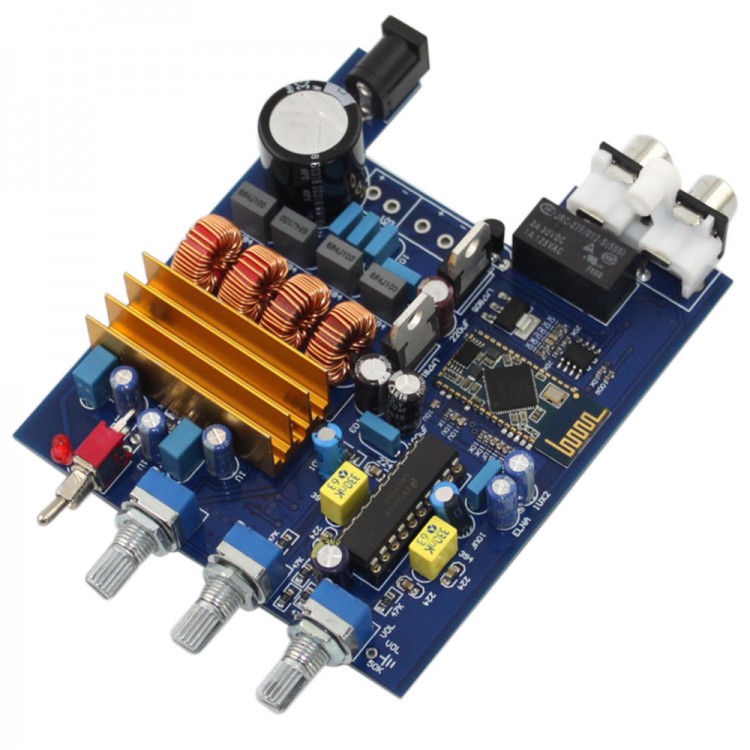

TPA3116+LM1036 Class D DC18V-24V 50W+50W CSR4.0 Bluetooth Amplifier Board Treble Bass Adjustment Audio Amp

Features:

- Adopt original TPA3116  LM1036 and CSR4.0 bluetooth module
- Power filter capacitor, famous brand and high quality, 3300UF/25V
- Use high-precision resistor chip resistors, the main circuit employs a precision of ± 1% metal film resistors rings, ensure the machine a good signal to noise ratio.
- PCB using double-sided sheet 1.6mm thick, 2.0 Oz copper thickness, HASL whole process to ensure the current good performance.
- Bluetooth 4.0
- Analog and bluetooth input, bluetooth input first
- Special power amplifier inductance of red ash ring to ensure that the sound is clear and strong

Specification:
- Work: Class D
- Quiescent Current: 50mA
- Efficiency: 90%
- Rated output power: 2*50W
- Frequency response: 20Hz to 20KHz
- Operating voltage: DC18V to DC24V
- Recommended supply voltage: DC24V
- Maximum output current: 3A
- Receiving range: 10m

Package Includes:
- 1 x Amplifier Board
