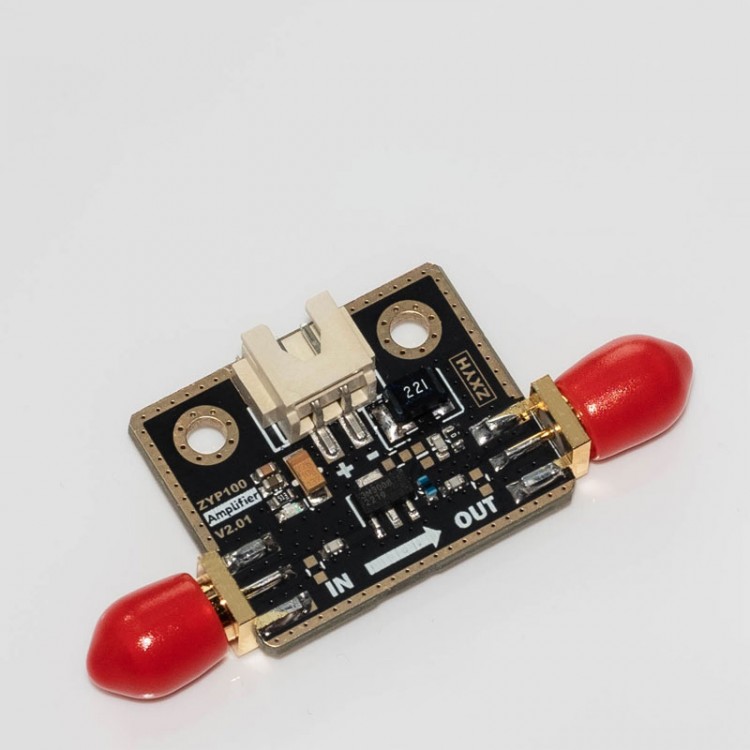

TQP3M9009 50-4000MHz NF1.3dB Low Noise Amplifier Module 50ohms 25dB Gain RF LNA with SMA Female Connector
Description:
- TQP3M9009 low-noise RF amplifier, with better performance than TQP3M9008, 50-4000MHz, maximum gain of 25dB, 5V single power supply, NF noise of only 1.3dB, ultra small size, suitable for various RF amplification scenarios, with excellent performance specifications.
Specification:
- Frequency range: 50MHz - 4000MHz
- Gain: 25dB at 50MHz; 23.3dB at 1GHz; 20.3dB at 2GHz; 18.6dB at 3GHz; 15.1dB at 4GHz
- Compressed point (P1dB): 22dBm
- IP3 power: 50dBm
- NF (noise figure): 1.3dB
- Interface impedance: 50ohms
- Power supply: +5V at 130mA (XH2.54 interface)
- Size: 27 x 22mm (excluding the connector length)
- Connector type: SMA female connector
- Chip: TQP3M9009
Package Included:
- 1 x Low Noise Amplifier Module
