TRI AN/PRC-152 Advanced KDU Kit Three Proofing 6-Band Handheld Tactical Walkie Talkie with Keypad Display Unit KDU Controller

TRI AN/PRC-152 Advanced KDU Kit Three Proofing 6-Band Handheld Tactical Walkie Talkie with Keypad Display Unit KDU Controller

Improvements:
- The advanced KDU kit has greatly improved the appearance details compared to the old KDU, equipped with KDU cables that restore the original appearance details and elastic wristbands in the original size. Installed the original interface for Fischer and can use the original KDU cable. Added four-way paddle buttons and adjusted KDU key positions for easy one handed operation.

Frequency Range:
- VHF frequency band (receiving/transmitting): 136 - 174MHz
- UHF1 frequency band (receiving/transmitting): 400 - 480MHz
- UHF2 frequency band (receiving/transmitting): 220 - 259MHz
- UHF3 frequency band (receiving/transmitting): 330 - 370MHz
- FM radio broadcast (reception): 78-108MHz
- AM aviation frequency band (receiving): 106-136MHz

New Features:
- Up to 15W power output.
- Support for TRI produced KDU.
- Added 330MHz and 220MHz frequency bands for reception and transmission.
- Supports aviation frequency reception.
- Upgraded battery casing with nylon material closer to the original battery for Harris.
- The motherboard chip has been fully upgraded, making it more energy-efficient and providing longer standby time.
- Supports use as UHF/UHF, VHF/VHF, UHF/VHF same band, and cross band relay stations.

Old Version:
KDU Description:

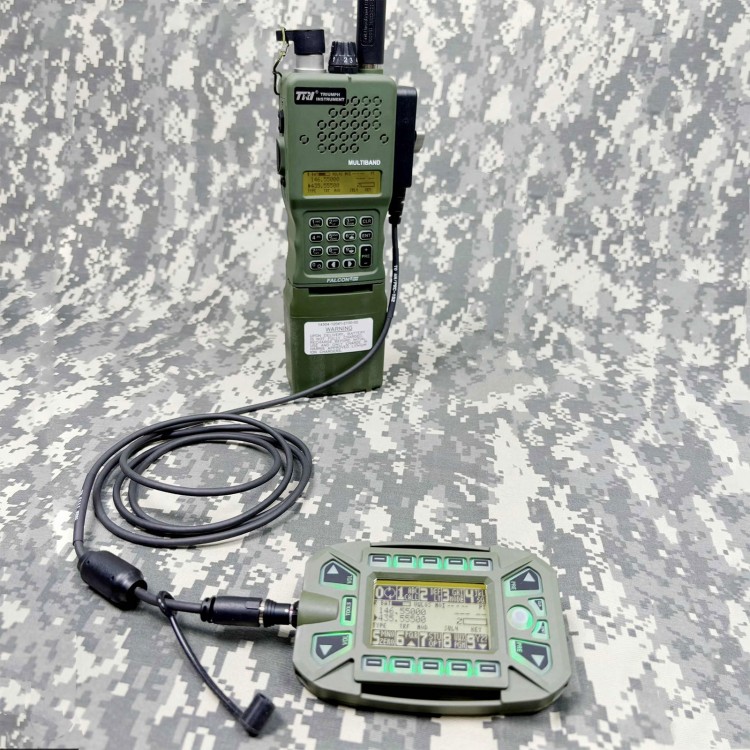

- This is a newly developed keypad display unit (KDU), which works with PRC-152A walkie talkie.
- With this KDU, users can set up and use the PRC-152A more easily and quickly. It is equivalent to separating the LCD screen and keyboard of the PRC-152A. So when the PRC-152A is placed in bags, vests and other inaccessible locations, you can use KDU to operate and set up the PRC-152A.

Function and Features:
- The case material is made of low copper aluminum alloy precision die-casting
- Support system firmware upgrade
- Chinese and English language prompt function
- Walkie talkie radio output power 10W - 15W, which can realize remote distance transmission
- Battery automatic detection recognition voltage system (8.4V/12.6V)
- One-key quick automatic frequency adjustment and mute without manual input
- KDU split control (easy left hand operation for KDU display screen flipping function)
- GPS global positioning system precise positioning function (only for GPS version)
- Built-in two sets of communication chip to achieve dual segment simultaneous reception of (V/V, U/U, U/V) signals
- Relay transposer function (U to V or V to U)
- 7 groups of CT voice scrambling encryption
- Foldable U/V full band antenna
- MD moving-coil cartridge selection
- FM radio receiving and AM aviation band receiving
- SCAN auto scanning function
- Unique channel partition management with clear storage location
- KEYSET dual PTT transmitting (it can set two transmitting PTT switch)
- SPK internal speaker control
- Power on customized display mode (fully open icon design)
- High/medium/low power setting
- Main/Sub (A/B) frequency band shortcut switch key
- Full dot matrix LCD 4-sgment display screen
- Intelligent low-power and power-saving mode for ultra long standby
- Frequency transceiver: VHF136 - 174MHz, UHF400 - 520MHz
- FM radio receiving: 78 - 108MHz
- AM receiving: 106 - 136MHz
- Two expandable receiving frequency band

Package Included:
- 1 x Tactical Walkie Talkie
- 1 x Keypad Display Unit
- 1 x Power Adapter
- 1 x Connection Cable
- 1 x Antenna
- 1 x Original-size Elastic Wristband for PRN
- 1 x User Manual
- 1 x Box

Note:
- This KDU is only for our PRC-152A handheld transceiver. Radio products of other brands are not supported.
