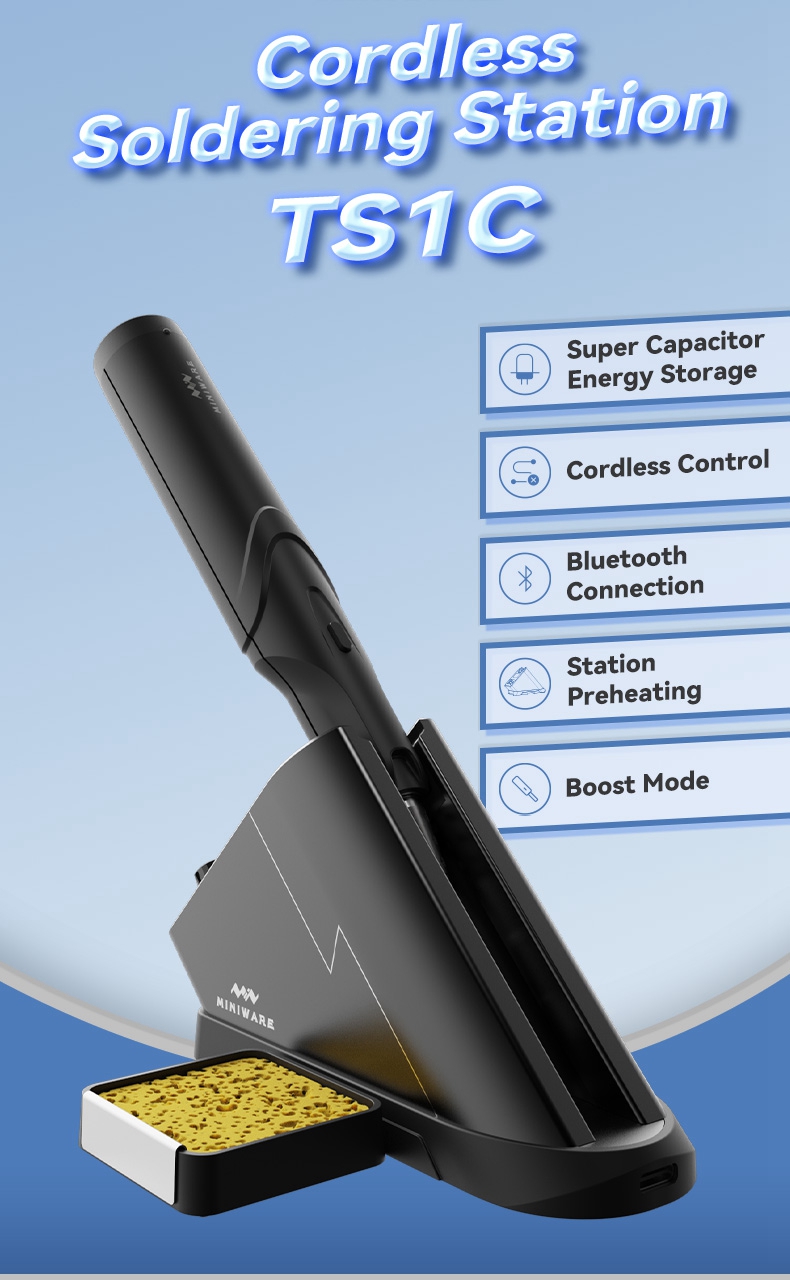

TS1C Cordless Soldering Station Rechargeable Intelligent Electronic Iron Support Bluetooth Communication Remote Control

TS1C Cordless Soldering Station Rechargeable Intelligent Electronic Iron Support Bluetooth Communication Remote Control

Description:

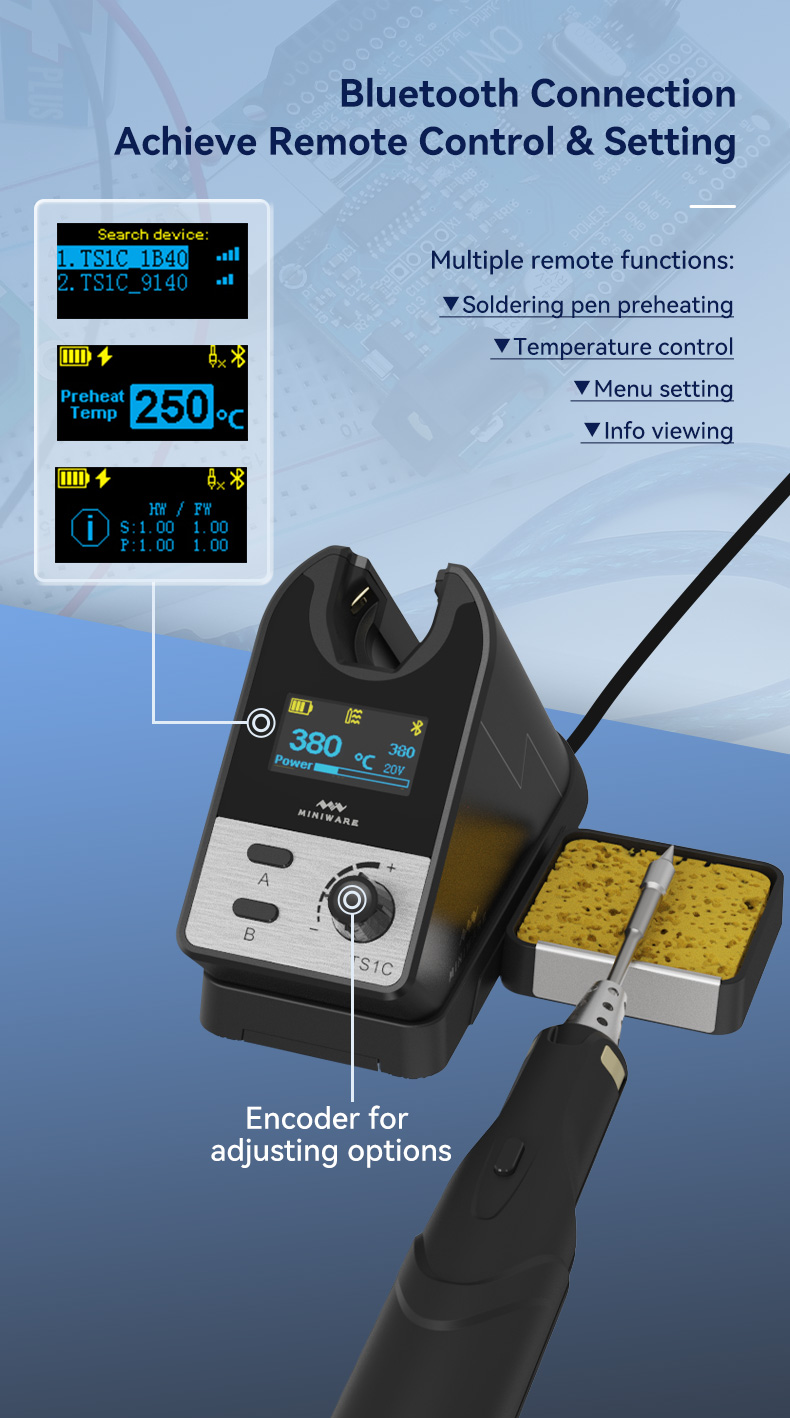

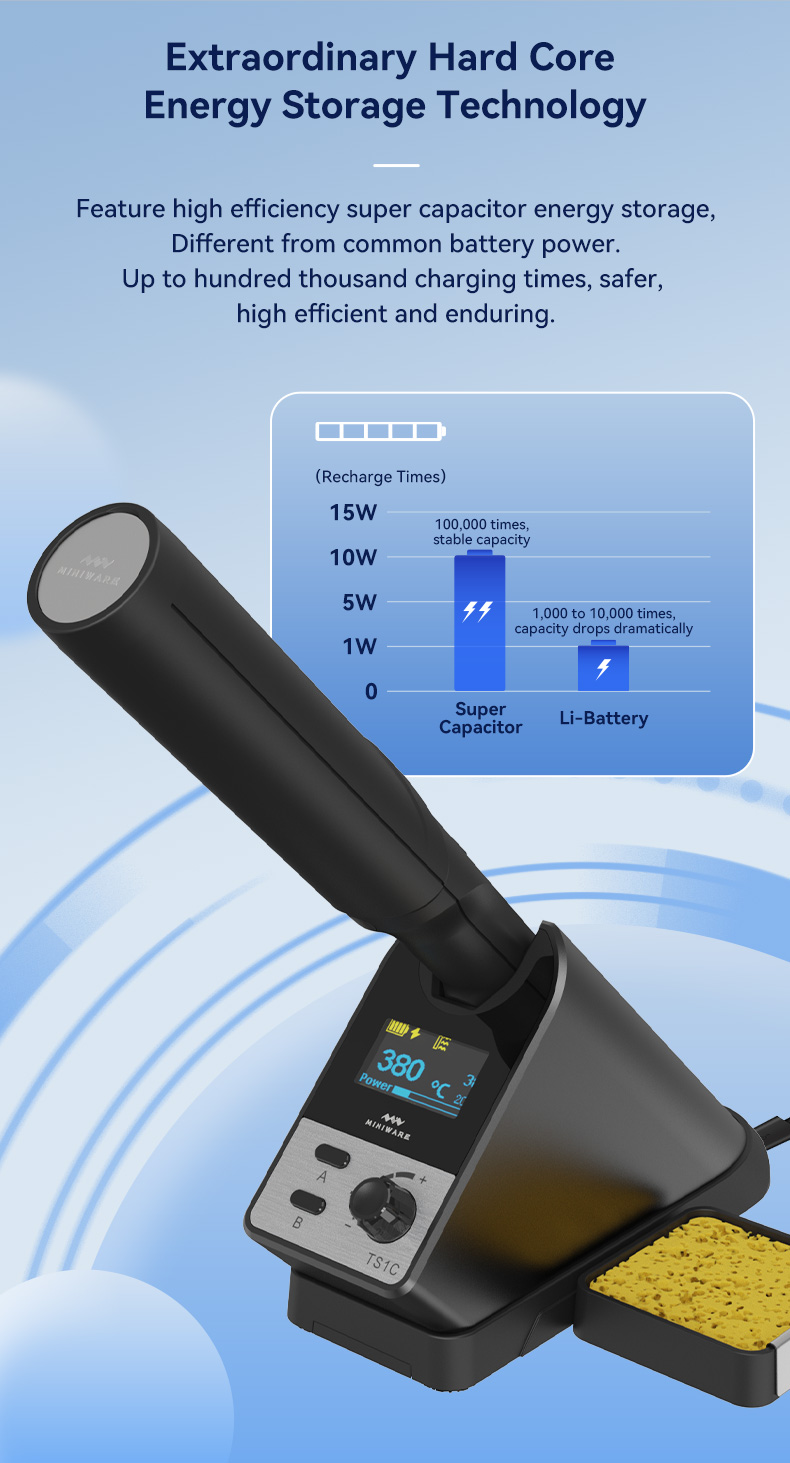

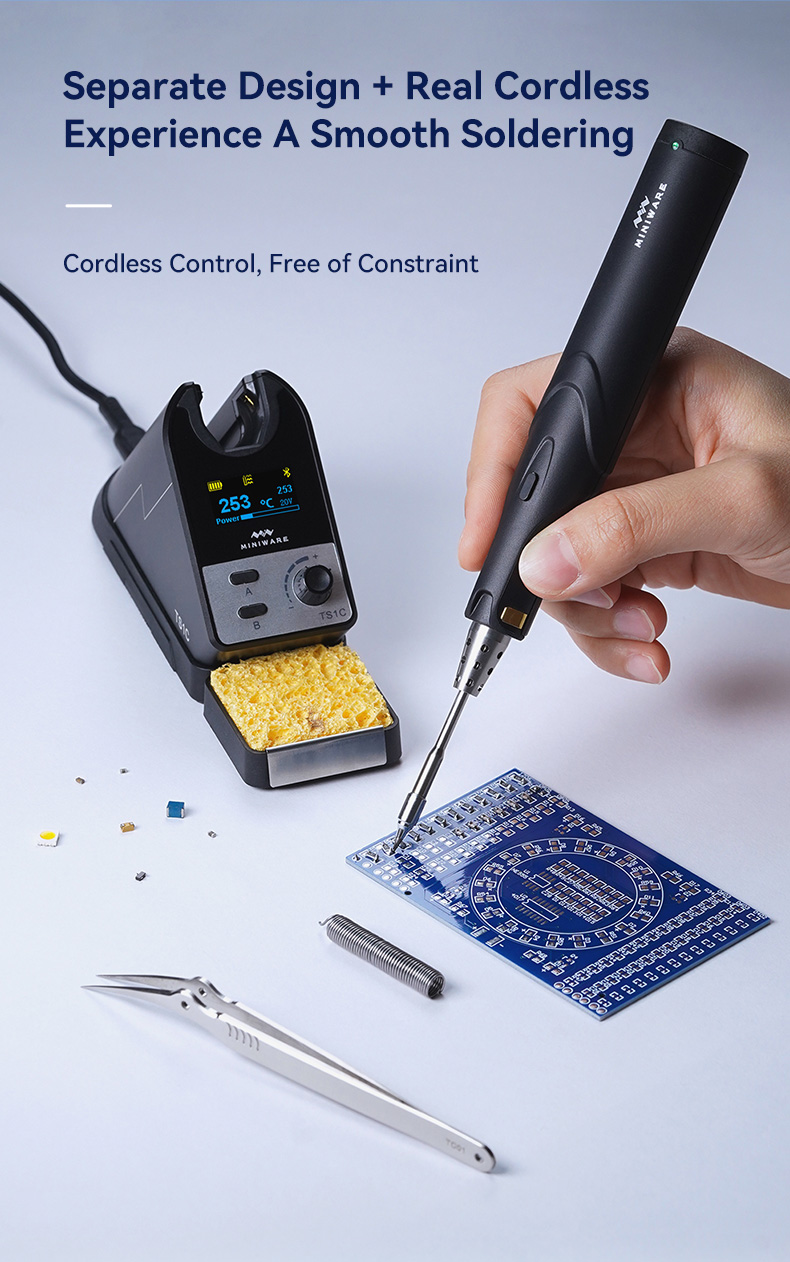

- It is a new energy storage intelligent desktop welding tool based on BLE4.2 Bluetooth communication, and adopts super capacitor energy storage.

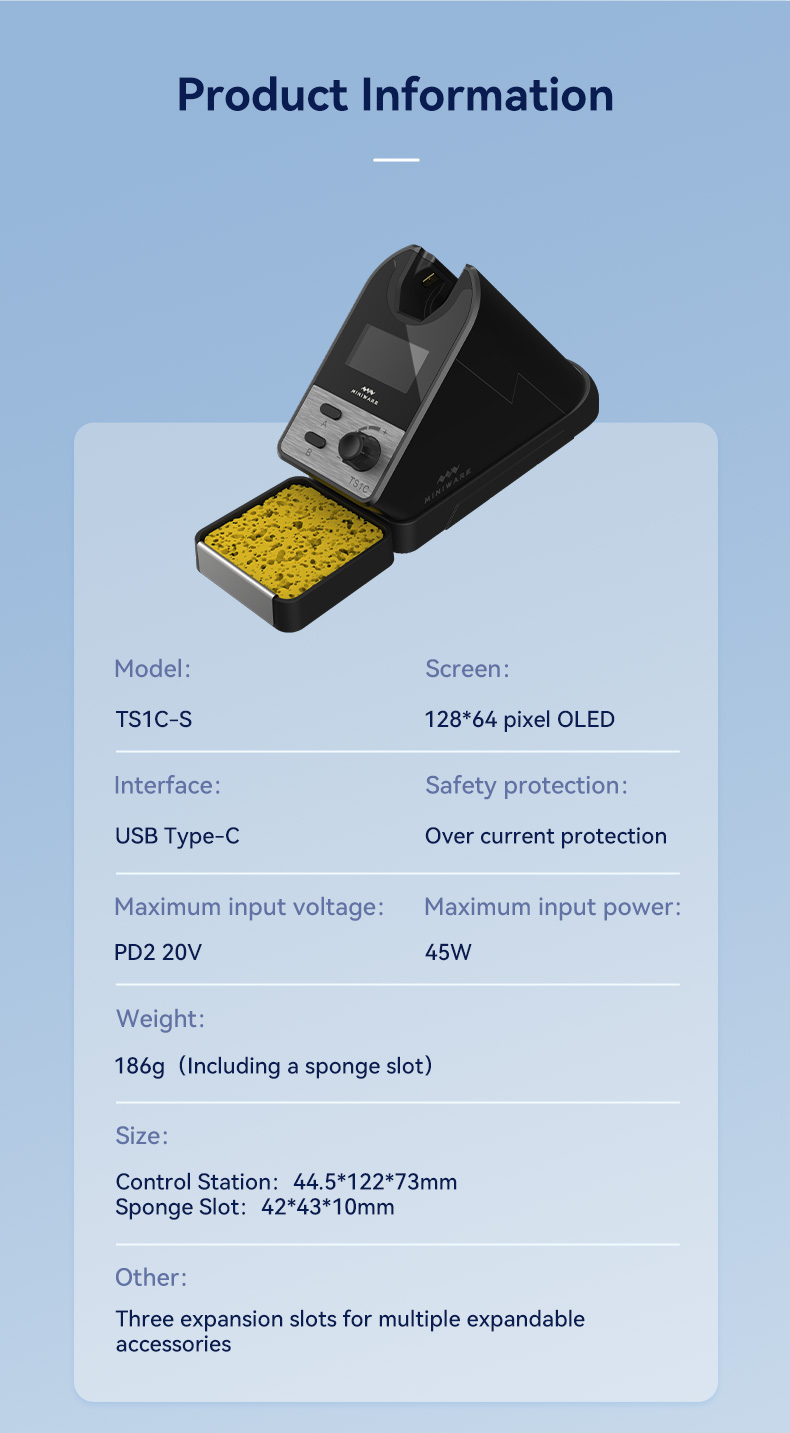

Station Specification:
- Model: TS1C-S

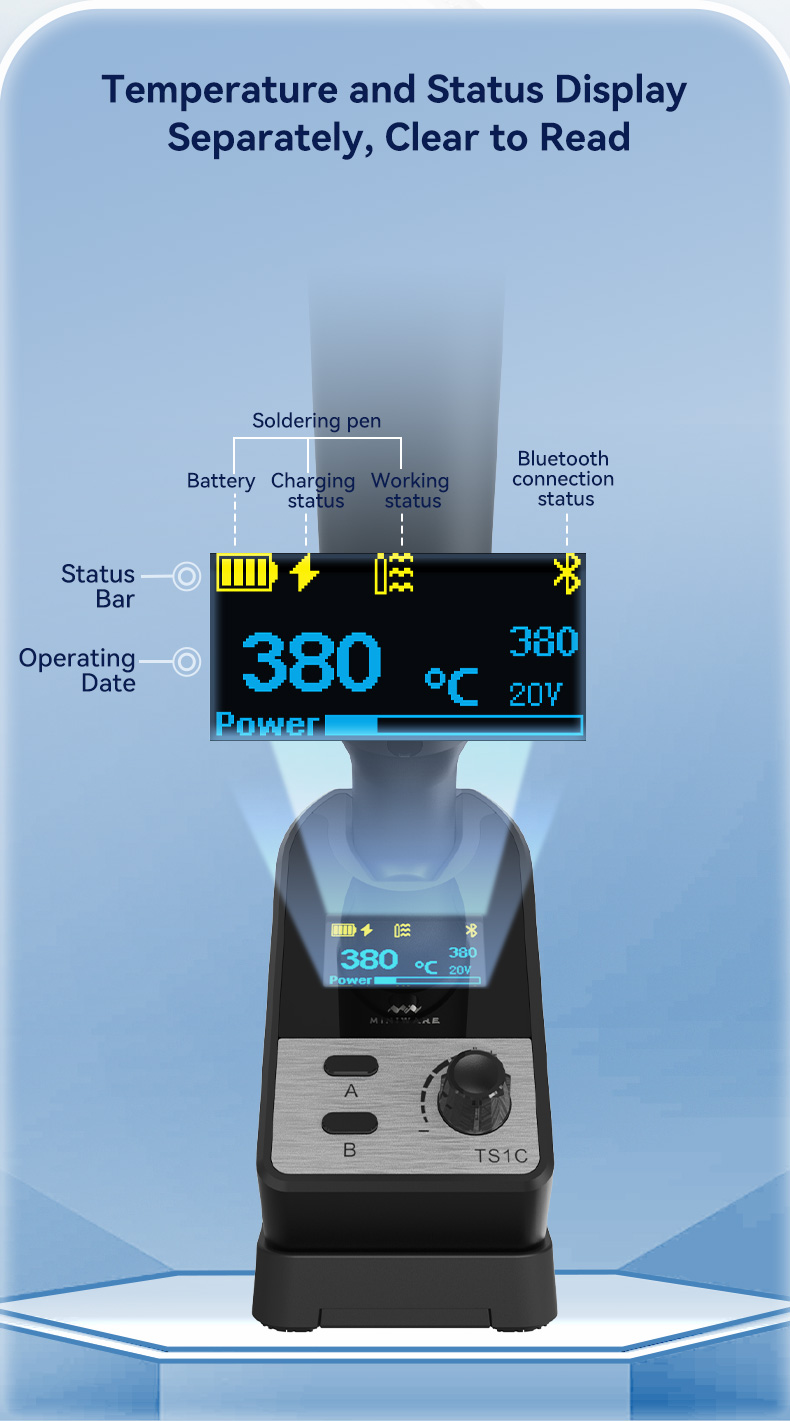

- Screen: 128 x 64 pixel single color OLED
- Interface: USB Type-C
- Safety protection: over-current protection
- Maximum input voltage: PD2 20V
- Maximum input power: 45W
- Size: 44.5 x 122 x 73mm (base); 42 x 43 x 10mm (sponge slot)
- Weight: 186g

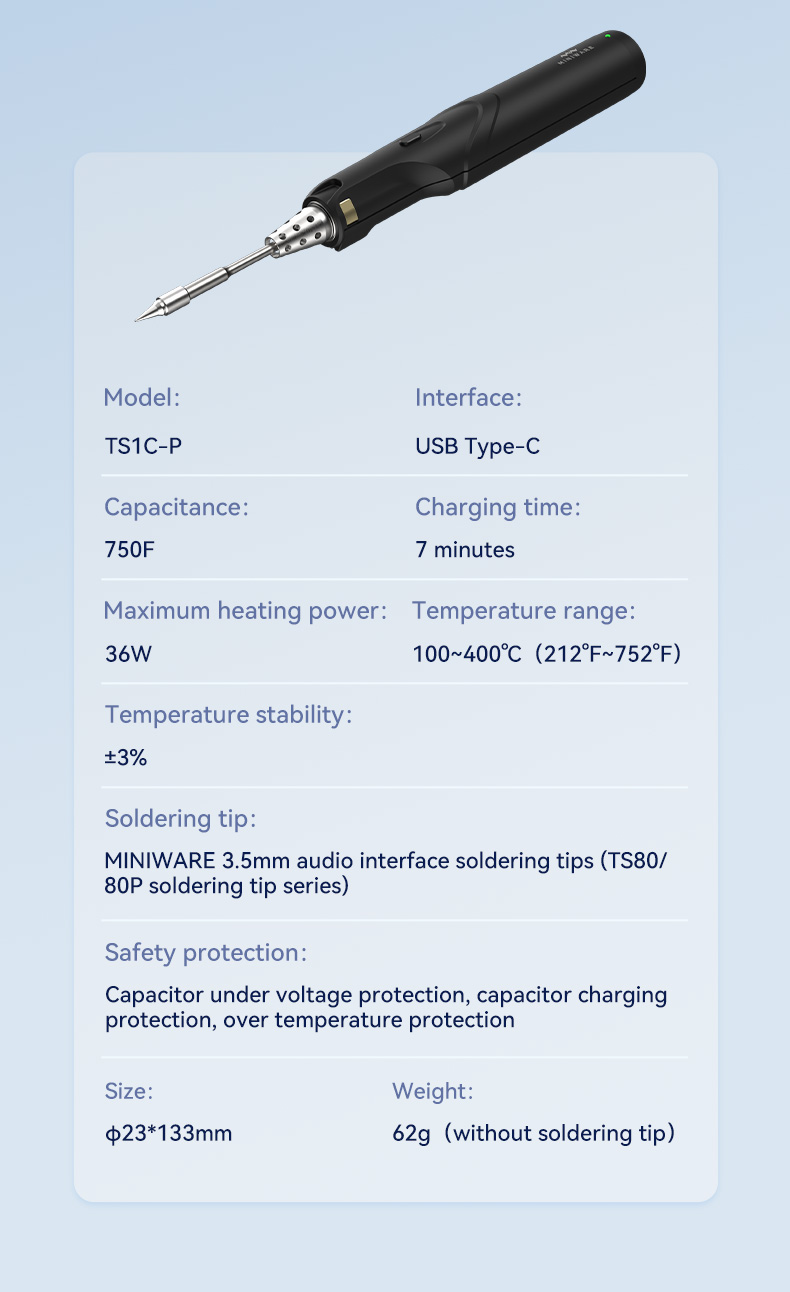

Soldering Pen Specification:
- Model: TS1C-P
- Interface: USB Type-C

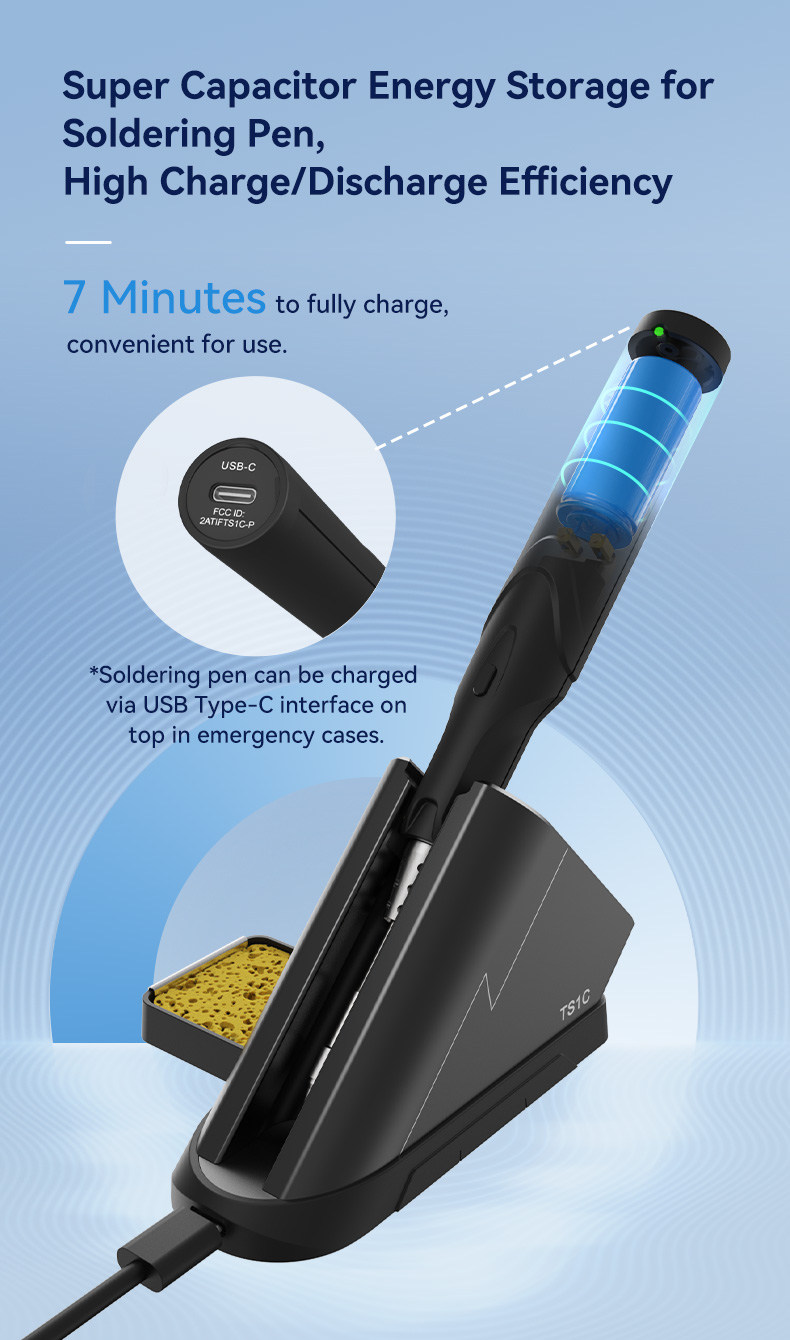

- Capacitor capacity: 750F
- Charging time: 7 minutes

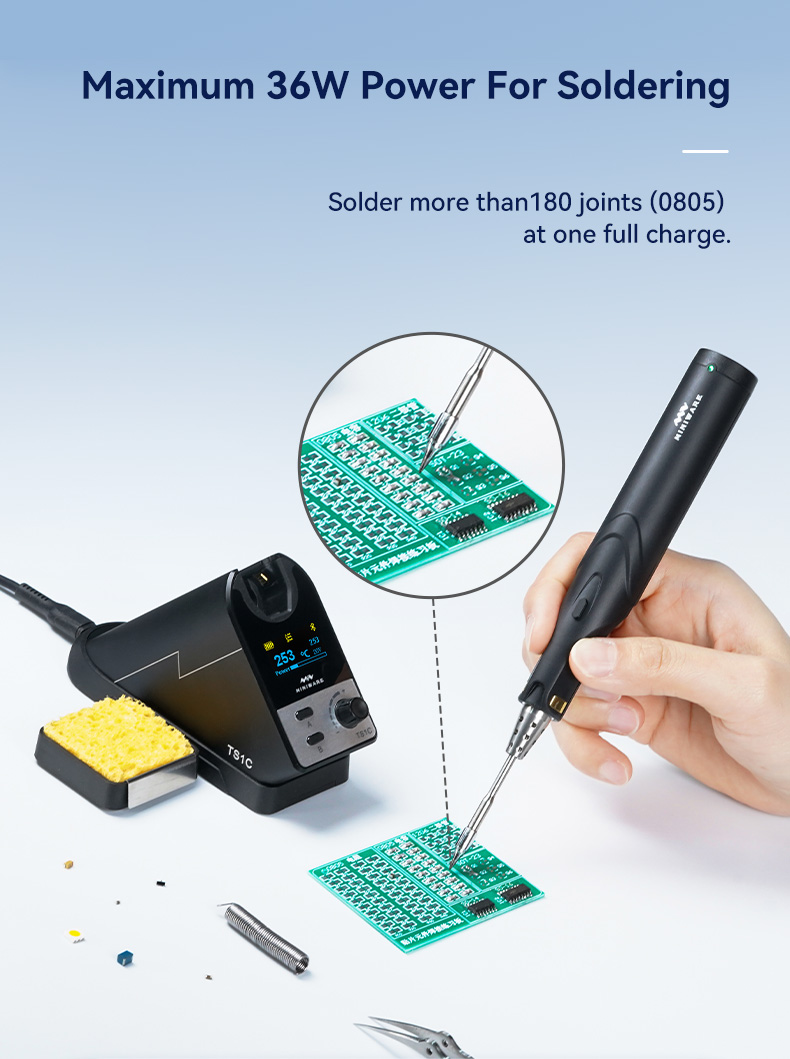

- Maximum heating power: 36W
- Temperature range: 100 ~ 400℃ (212 ~ 752℉)
- Temperature stability: ±3%

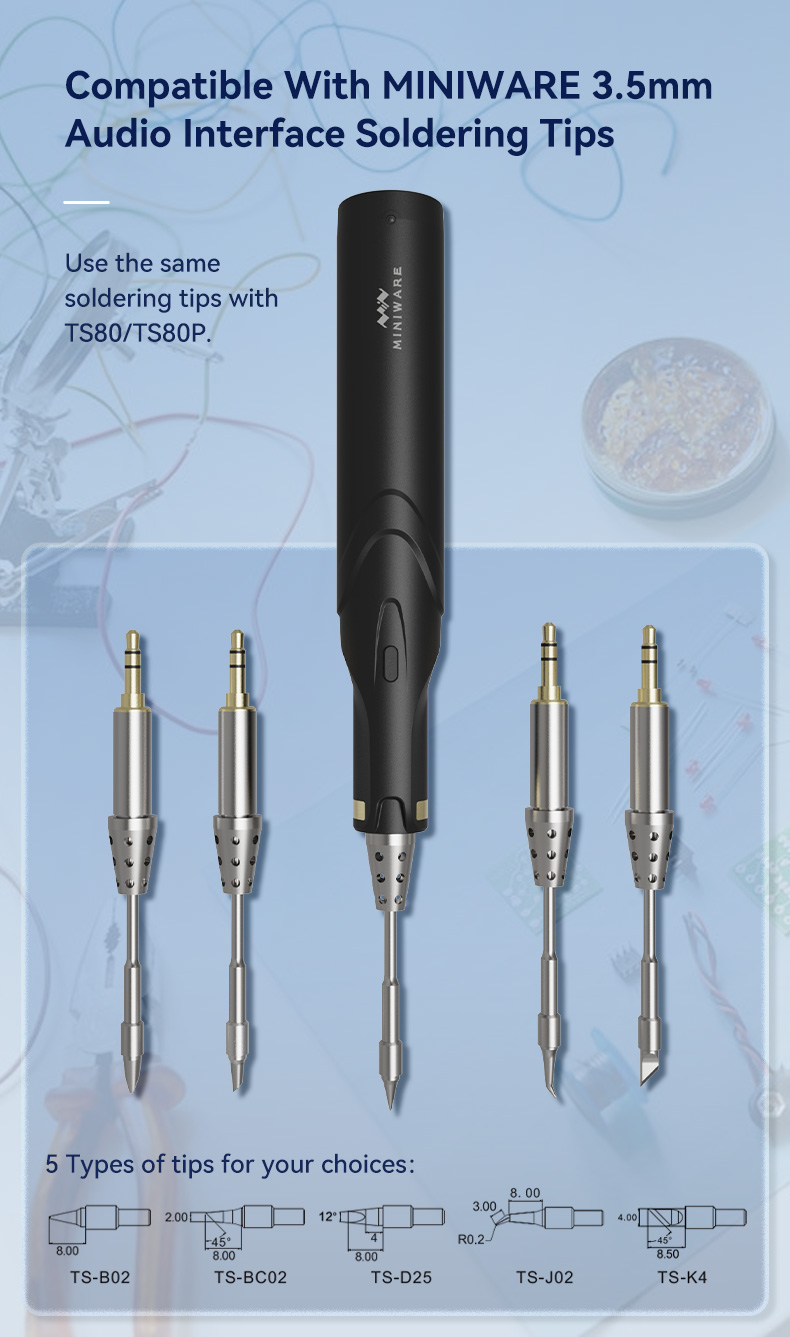

- Soldering iron: for MINIWARE 3.5mm audio interface soldering iron (TS80/80P soldering iron)
- Safety protection: capacitor low-voltage protection, capacitor charging protection, over-temperature protection
- Size: 23 (diameter) x 133mm
- Weight: 62g (without soldering iron)

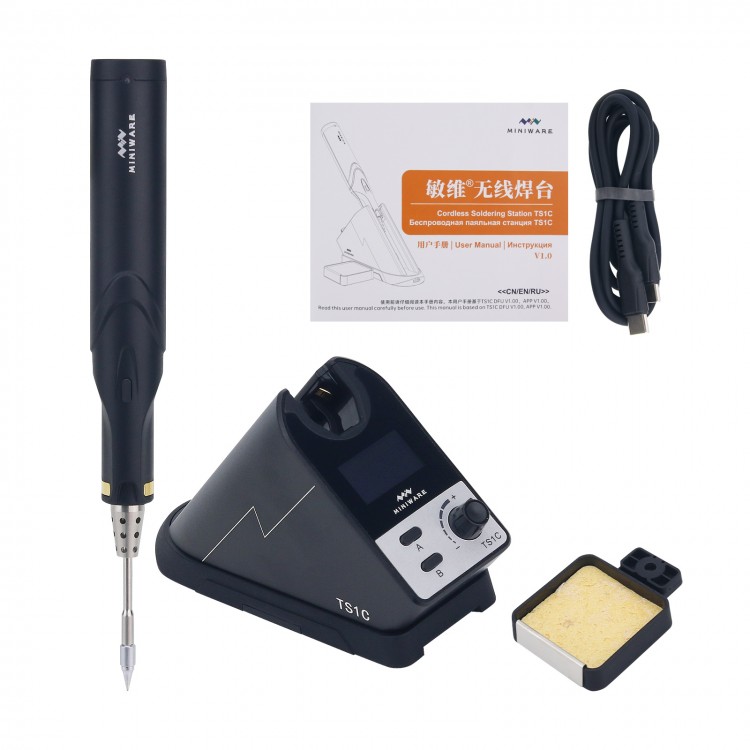

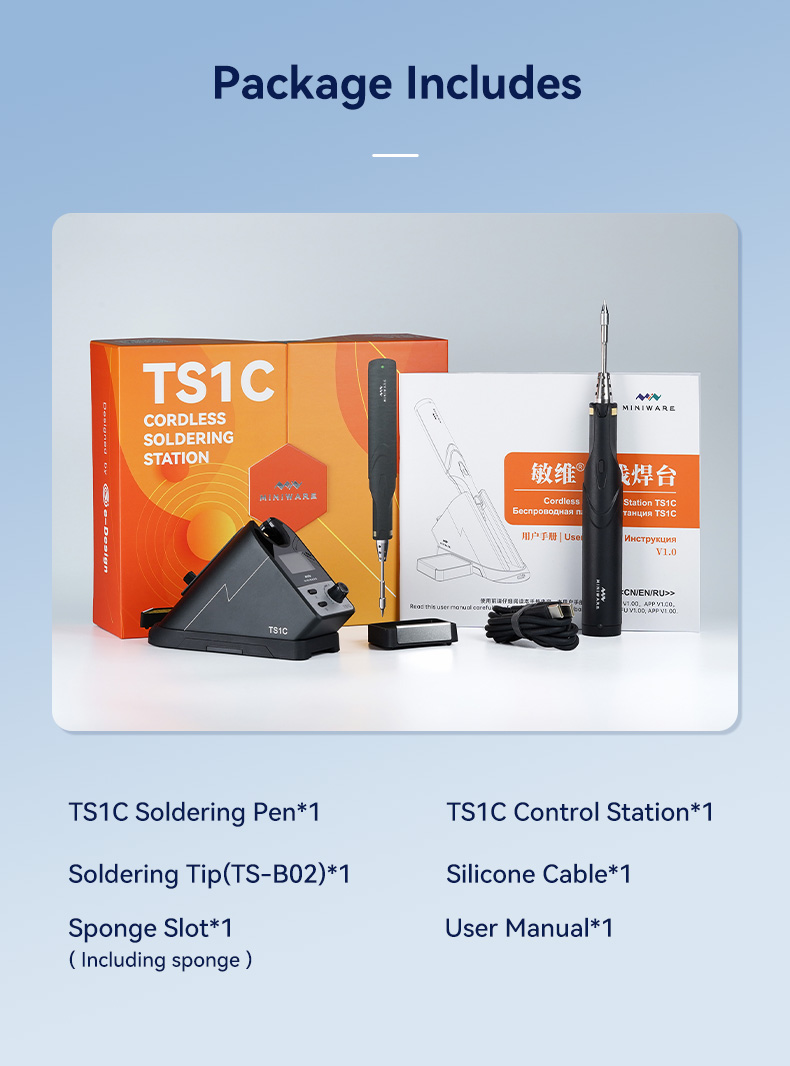

Package Included:
- 1 x TS1C Handle
- 1 x TS-B02 Head
- 1 x Silicon Power Cable

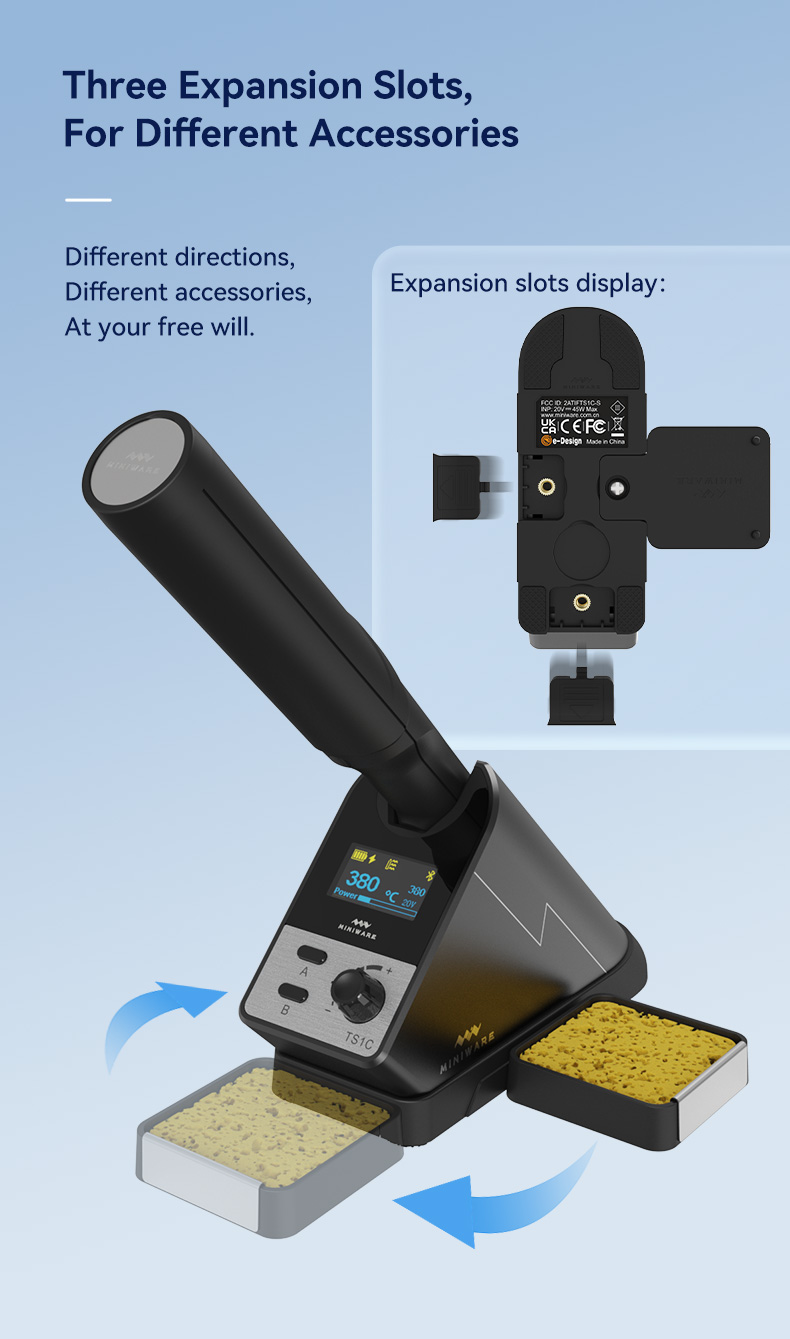

- 1 x TS1C Controlling Base
- 1 x Sponge Slot
- 1 x User Manual
