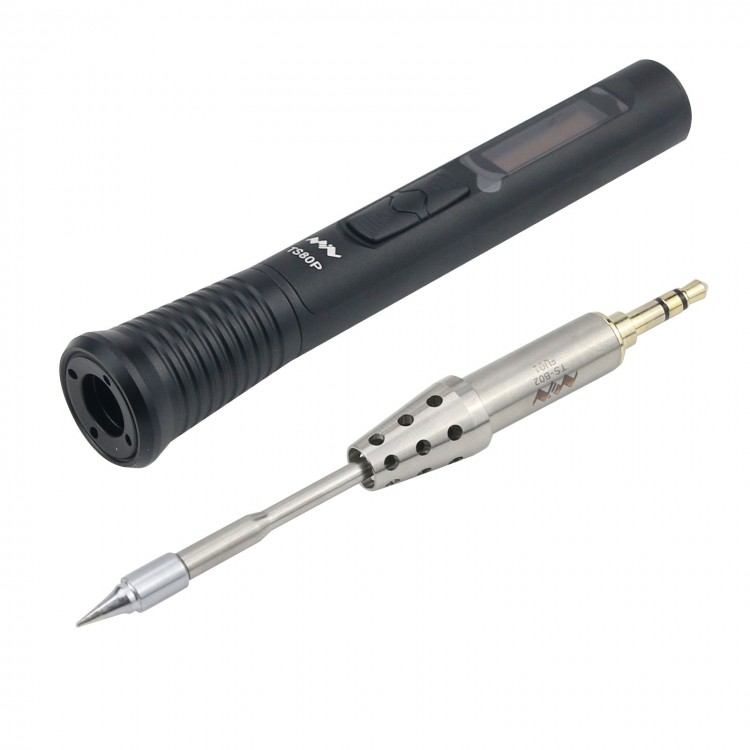

TS80P-main Soldering Iron Smart Electric Solder Station Adjustable Temperature w/ B02 Iron Tip
Description:
1. TS80P is the upgrade version of TS80 smart soldering iron. TS80P is a smart soldering iron powered by USB type-C PD2.0/QC3.0 standard input. It can be powered by charging plugs, power banks and mobile power supplies that comply with PD2.0 (12V 2.5A)/QC3.0 (9V 2A) standard. Its output power has been increased from 18W to 30W max, with an 8-second heating time at fastest from room temperature to 300℃.
2. TS80P controller is made of aluminum alloy through CNC into a compact structure and high-tech design, ergonomic, beautiful and fashionable. The controller is also equipped with an OLED screen, so that you can monitor the status of the soldering iron at any time. Moreover, it features a brand new easy-push tip fastener, which provides a best holding experience and an easy push to loosen the soldering tip for quick replacement. With a built-in STM32 chip, TS80P can smartly control the rise and fall of tip temperature, and features dormancy, automatic power-off, safety protection and other modes. The code application layer is open source; you can develop firmware for the soldering iron freely as needed.
3. TS80P shares the same tips with TS80. The soldering tip has an internal thermal ceramic heating core, and through the pure copper heat conduction, it can quickly transfer heat to the tip of soldering tip, achieving an excellent temperature control performance.
Specifications:
Temperature Range: 100℃- 400℃ (Max)
Shell material: aluminum alloy
Power interface: USB Type-C
Power supply: QC3.0/PD2.0
Working voltage: 12V 2.5A
Power range: 30W
Fastest heating time (from room temperature to 300℃): 8s
Temperature stability: ±3%
Display: OLED
Certifications: CE, FCC, PSE
Soldering iron head insertion method: direct insertion; pull out the fastener after pushing out the iron head
Other functions: port protection, sleep mode, automatic shutdown, custom boot LOGO, firmware upgrade
Features:
1. OLED screen, full aluminum alloy shell, CNC integrated molding.
2. USB type-C PD2.0/QC3.0 standard input.
3. Power increased from 18W to 30W max.
4. Only 8s to heat from room temperature to 300℃.
5. Brand new easy-push tip fastener, one push to loosen tips.
6. Built-in smart chip for port protection.
7. Share same tips with TS80.
Package List:
-1 x TS80P Controller
-1 x TS-B02 Soldering Tip
-1 x Safety Instruction
