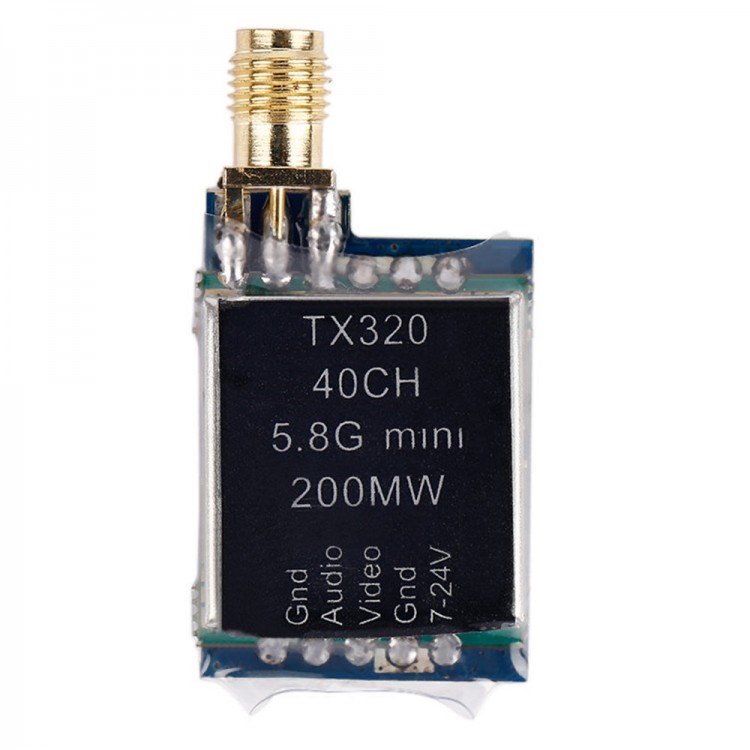

TX320 5.8G 200mW 40CH Wireless AV Transmitter Tx 5V for FPV Quadcopter Drone Aerial
Features:
- 5.8GHz video / audio sync transmission.
- Compact structure, small size.
- High output power, low power consumption, and low harmonic radiation of the transmitter.
- Ideal for FPV, wireless remote control aircraft, wireless remote control vehicle and son on.
Frequency range:
- FR1: 5740Mhz, 5760Mhz, 5780Mhz, 5800Mhz, 5820Mhz, 5840Mhz, 5860Mhz, 5880Mhz
- FR2: 5705Mhz, 5685Mhz, 5665Mhz, 5645Mhz, 5885Mhz, 5905Mhz, 5925Mhz, 5945Mhz
- FR3: 5865Mhz, 5845Mhz, 5825Mhz, 5805Mhz, 5785Mhz, 5765Mhz, 5745Mhz, 5725Mhz
- FR4: 5658Mhz, 5659Mhz, 5732Mhz, 5769Mhz, 5806Mhz, 5843Mhz, 5880Mhz, 5917Mhz
- FR5: 5733Mhz, 5752Mhz, 5771Mhz, 5790Mhz, 5809Mhz, 5828Mhz, 5847Mhz, 5866Mhz
Specifications:
- Operating voltage: 7V-24V
- Supply current: 190mA
- Video bandwidth: 8.0MHz
- Audior carrier frequency: 6.5MHz
- Video input level: 0.8-1.2 Vp-p
- Video input impedance: 75 Ohm
- Aduio input level: 0.5-2.0 Vp-p
- Audio input impedance: 10K Ohm
- Antenna connector: RPSMA connector
- Transmitter power: 200mW
- Dimension: 38 x 20 x 8mm/1.5 x 0.8 x 0.3 inch
- Net weight: 22g
Package List:
- 1 * 5.8G 200mW 40CH Transmitter
- 2 * Cables
- 1 * Antanna
- 1 * Channel Frequency Table
