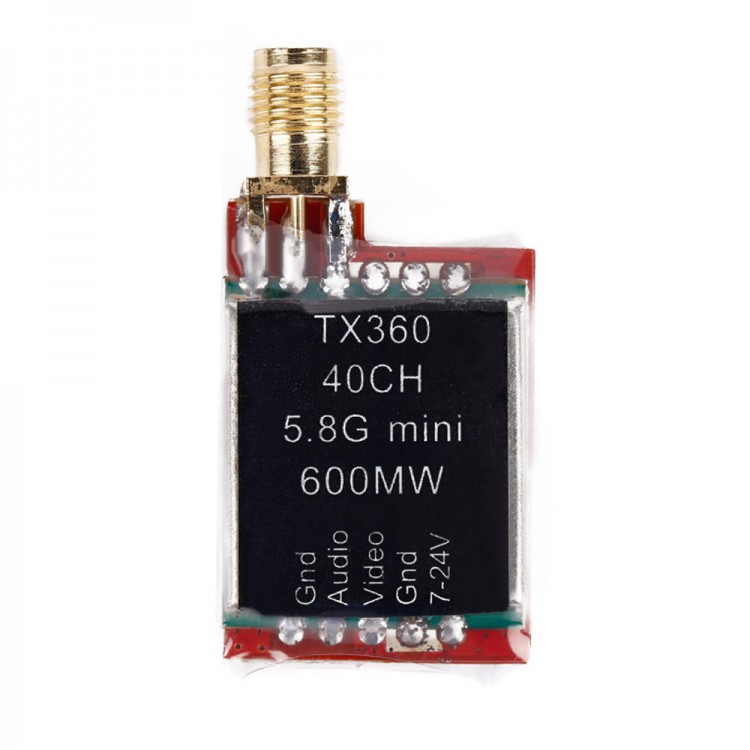

TX360 5.8G 600mW 40Ch Wireless AV FPV Transmitter 5V Tx for Quadcopter Drone Aerial

TX360 5.8G 600mW 40Ch Wireless AV FPV Transmitter 5V Tx for Quadcopter Drone Aerial

Features:
- Bulid-in microphone
- Super mini, light weight only 8g
- Five bands 40 channels with Raceband
- Vertical antenna connector design for racing drone
- Button control instead of switch, LEDs for frequency selection
- Single push to change CH, push and hold for 2 or 3 seconds to change FR

Frequency range:
- FR1: 5740Mhz, 5760Mhz, 5780Mhz, 5800Mhz, 5820Mhz, 5840Mhz, 5860Mhz, 5880Mhz
- FR2: 5705Mhz, 5685Mhz, 5665Mhz, 5645Mhz, 5885Mhz, 5905Mhz, 5925Mhz, 5945Mhz
- FR3: 5865Mhz, 5845Mhz, 5825Mhz, 5805Mhz, 5785Mhz, 5765Mhz, 5745Mhz, 5725Mhz
- FR4: 5658Mhz, 5659Mhz, 5732Mhz, 5769Mhz, 5806Mhz, 5843Mhz, 5880Mhz, 5917Mhz
- FR5: 5733Mhz, 5752Mhz, 5771Mhz, 5790Mhz, 5809Mhz, 5828Mhz, 5847Mhz, 5866Mhz

Specifications:
- Modulate: Wideband FM modulate
- Video format: NTSC/PAL
- Output impedance: 50 Ohm
- Output power: 26-28dBm
- Frequency range: 5645-5945Mhz
- Channel: 40CH
- Transmitter power: 600mW
- Operating voltage: 7V-20V
- Output voltage: 5V
- Supply current: 260mA at 12V
- Video band width: 8.0MHz
- Audio carrier frequency: 6.5MHz
- Video input level: 0.8-1.2Vp-p
- Video input impedance: 75 Ohm
- Audio input level: 0.5-2.0Vp-p
- Audio input impedance: 10K Ohm
- Antenna connector: RP-SMA-K connector
- Dimension: 38 x 20 x 8mm/1.5 x 0.8 x 0.3 inch
- Net Weight: 23g

Package List:
- 1 * 5.8G 600mW 40CH Transmitter
- 1 * Antanna
- 1 * Channel Frequency Table
