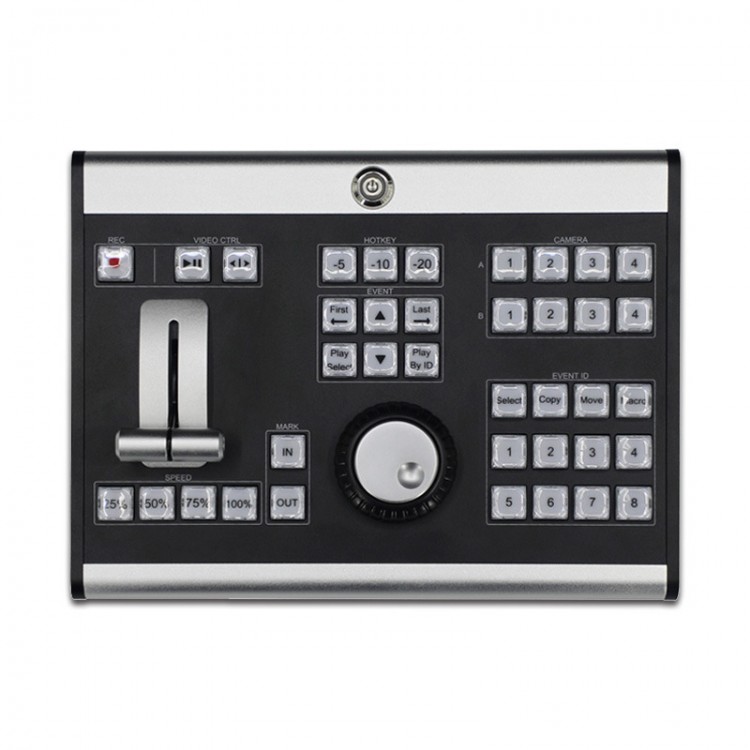

TYST TY-REW380 Slow Motion Switcher 4 Channel COM Playback Control Keyboard Panel Video Recording

TYST TY-REW380 Slow Motion Switcher 4 Channel COM Playback Control Keyboard Panel Video Recording

Description:
TY-REW380's new live broadcast slow motion switcher has an elegant design. It is a professional hardware control panel designed for all Tianyitong real-time live slow motion playback systems. It has a modern appearance and a MIDI communication protocol interface, which can speed up the work flow of live play back in time.The panel adopts 38high-quality curved buttons,which can reduce the chance of misoperation.The buttons are all backlit to help you quickly identify important keys. In addition,he is also equipped with a quick search dial and T-shaped putter. Buttons support dynamic display, and all buttons support custom settings.

Specification:
Function buttons: 1*power button, 38*backlit function buttons, 1*T-bar, 1*dual-wheel infinite precision playback search disk (with button function in the middle disk), the default inner wheel rotates 1 tick 1 frame, the outer wheel rotates 1 tick 10 tilt (the inner wheel button is not defined)
Size: 268 x 208 x 58mm (length x width x height)
Weight: 1.34kg

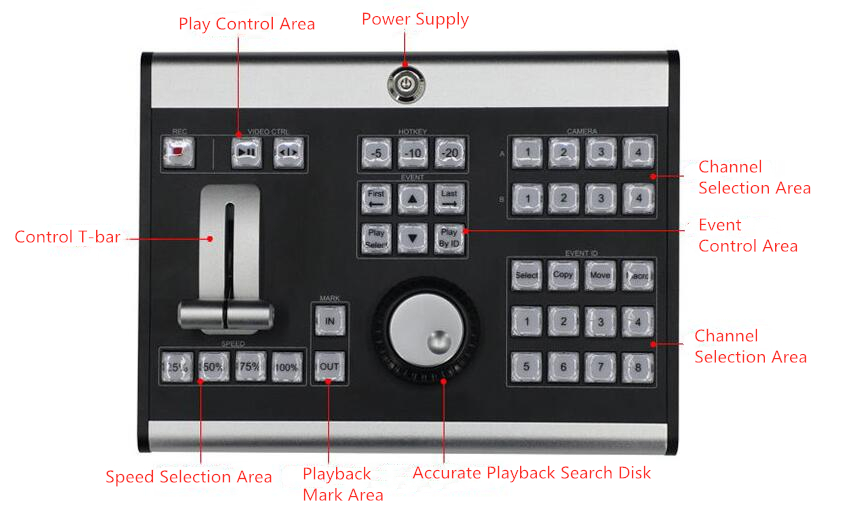

Buttons and Functions:
1. Power
After turning on the power, press the power button to turn on, and press the power button again to turn off. Note that this switcher is developed based on MDI, so before starting the playback system, the switcher needs to be turned on to reduce the amount of power on unnecessary operations.

2. Control T-bar
Speed control of the video being played back and output, push up to speed up the output video, and down to slow down the output video.

3. Accurate playback search disk
Used to search for recorded playback video clips (video nodes). The precise playback search disk is divided into an inner disk and an outer disk. Both the inner and outer disks support endless forward and reverse search, and the inner disk supports the operation by pressing. The internal and external disks can be set to different speed functions according to needs, up to 16 times speed can be set, and the search can be accurate to search by frame.

4. Camera selection area/ CAMERA
When performing slow motion playback, you can choose to A area 1, 2, 3, and 4 for real-time output slow motion. At the same time, you can select B area 1, 2, 3, and 4 for preview. Note, please turn it on at this time LIVE button on the switcher.

5. Real-time preview
The real-time preview button LIVE is used for auxiliary camera selection area/CAMERA. Turning on this button can enlarge the real-time output camera position and the previewed picture, which is convenient for the operator to watch.

6. Playback mark area/ MARK
This part of the buttons can quickly mark the in point (IN) and out point (OUT) of the connected camera position, record the in point, and start playing at the out point. Without marking the entry and exit points, you can quickly select the highlights that have been missed in the first 5 seconds, 10 seconds and 20 seconds for slow motion playback.

7. USB/ COM interface
Through the drive-free USB interface, connect to the system host, power on and turn on the switcher, you can realize the backup function operation of the camera position video.
COM can be used to upgrade the switcher later.

Package List:
-1 x Slow Motion Switcher
-1 x USB Cable
-1 x Manual
-1 x Certificate Warranty Card
