Ubertooth One Module Open-Source 2.4GHz Wireless Development Platform for Bluetooth Experimentation
Description:

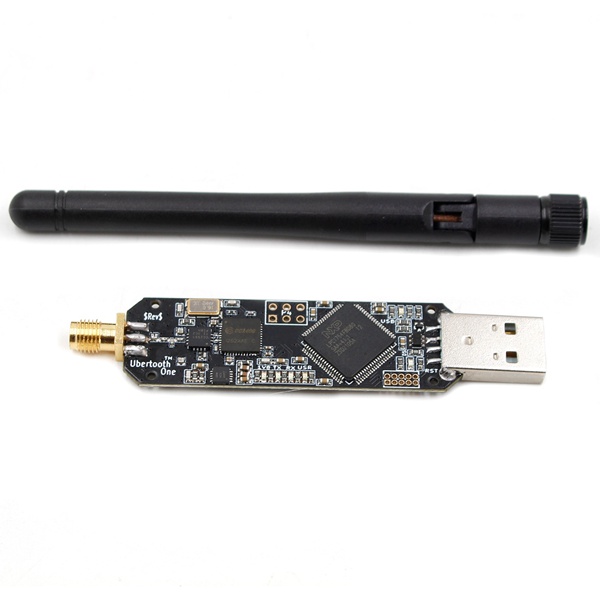

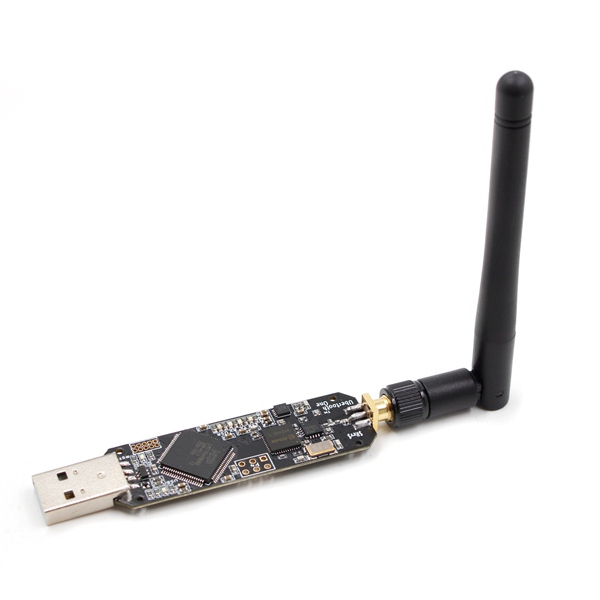

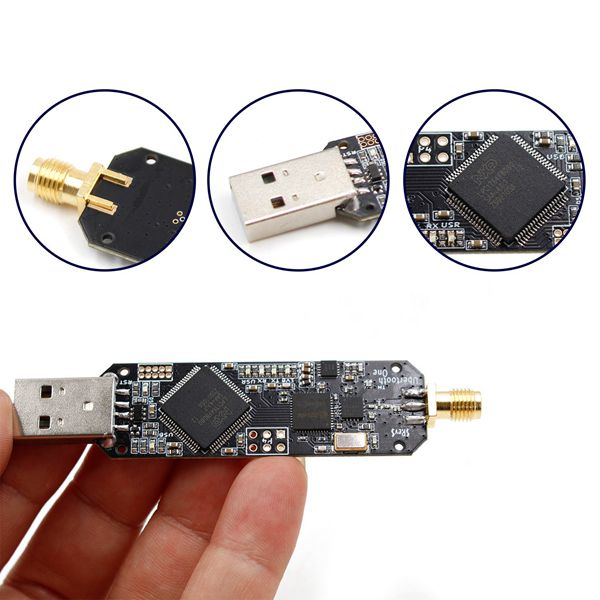

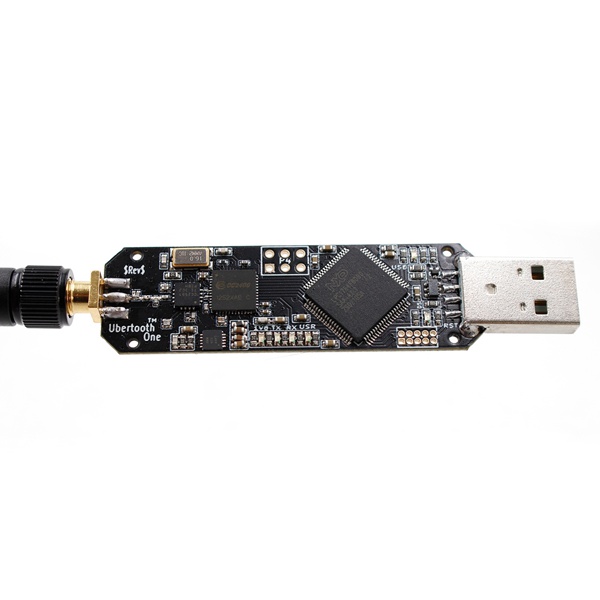

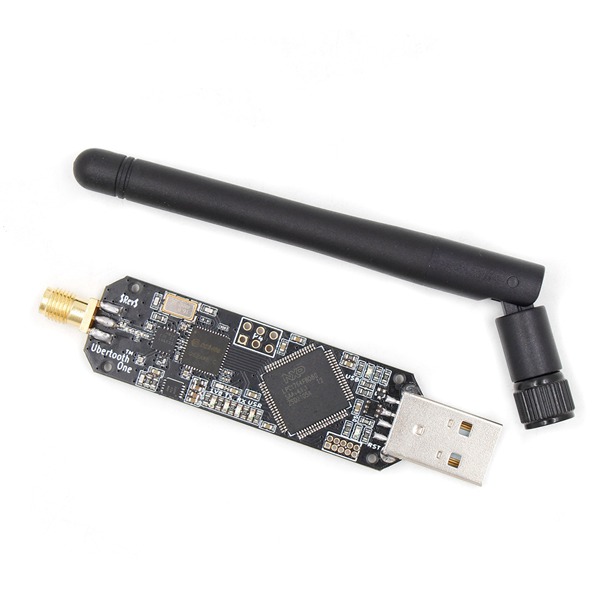

Ubertooth One is an open source 2.4 GHz wireless development platform for Bluetooth experiments. Based on the powerful Cortex-M3 LPC175x microcontroller (for ARM) and full-speed USB 2.0, the Ubertooth One is an excellent way to develop a class 1 custom Bluetooth device of its kind. The entire board is only two and a half inches long, with a USB-A connector on one end and an RP-SMA connector on the other.

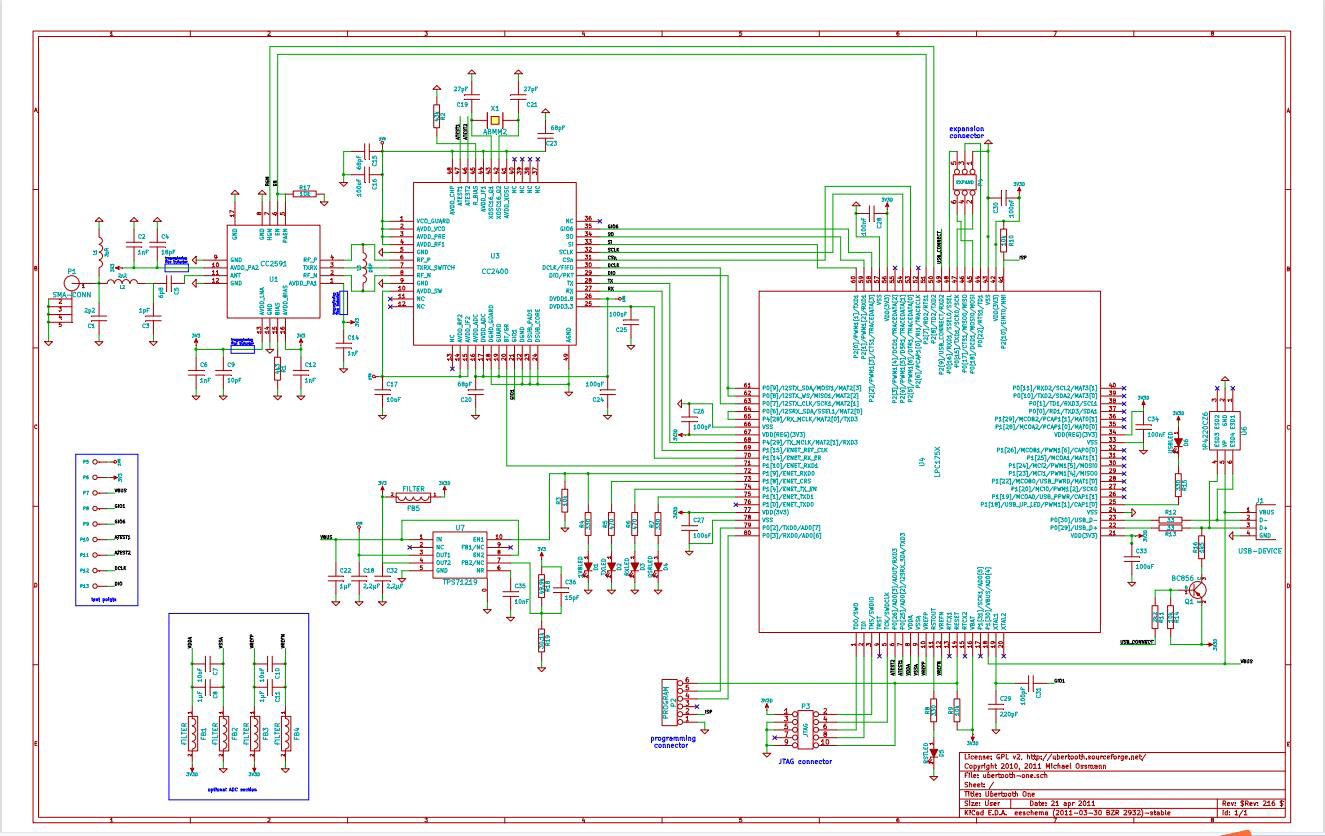

The difference between Ubertooth and other Bluetooth development platforms is that it can not only send and receive 2.4GHz signals, but also work in monitor mode to monitor Bluetooth traffic in real time. This mode of operation has existed in low-cost WiFi modules for years and has been used extensively in research, development, and security audits, but so far, the Bluetooth standard has no such solution. Also, since it is an open source platform (software and hardware), schematics and code are readily available for all your hacking needs.
Features:
- Ubertooth One is an open source Bluetooth test tool. It is the world's first affordable Bluetooth development and monitoring platform and is a fully open source product (hardware and software)
- It is an affordable platform for bluetooth monitoring and development of new bluetooth and wireless technologies
- Plug and play, easy to use
- Transmission rate: 5Mbps
- Effective working radius: 5m/16.4ft
- 2.4GHz transmitting and receiving
- The transmit power and receive sensitivity are comparable to class 1 Bluetooth devices.
- Standard Cortex debug connector (10-pin 50K JTAG).
- In-system programming (ISP) serial connector
- Extension connector designed for communication between Ubertooth or other future use
- Six LED indicators
- Includes 2.4 GHz duck antenna
Use tutorial reference:
https://www.freebuf.com/articles/wireless/106298.html
https://github.com/greatscottgadgets/ubertooth/wiki
Package Included:
- 1 x Main Unit
- 1 x Antenna
