| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $349.70 | $342.57 | $331.86 | $317.59 | Contact US |

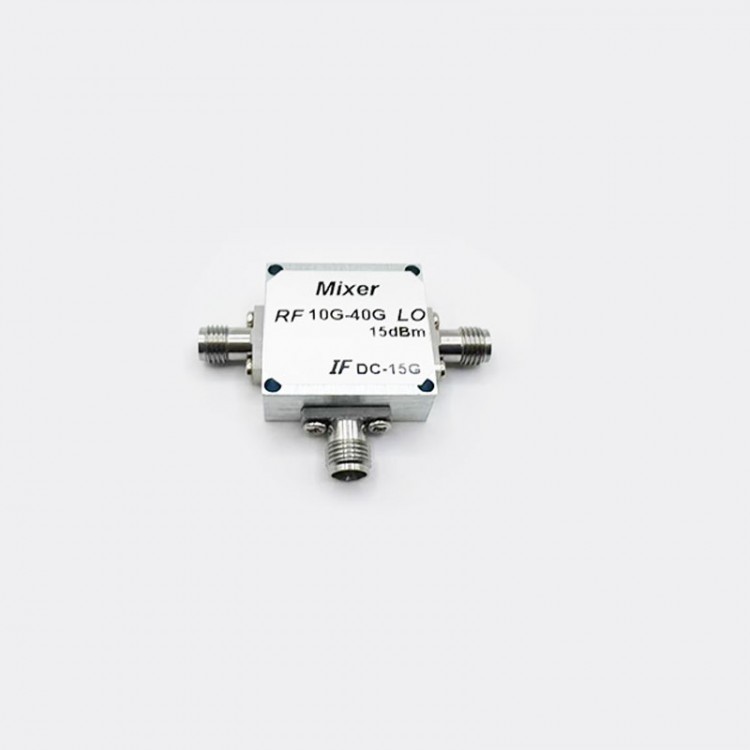

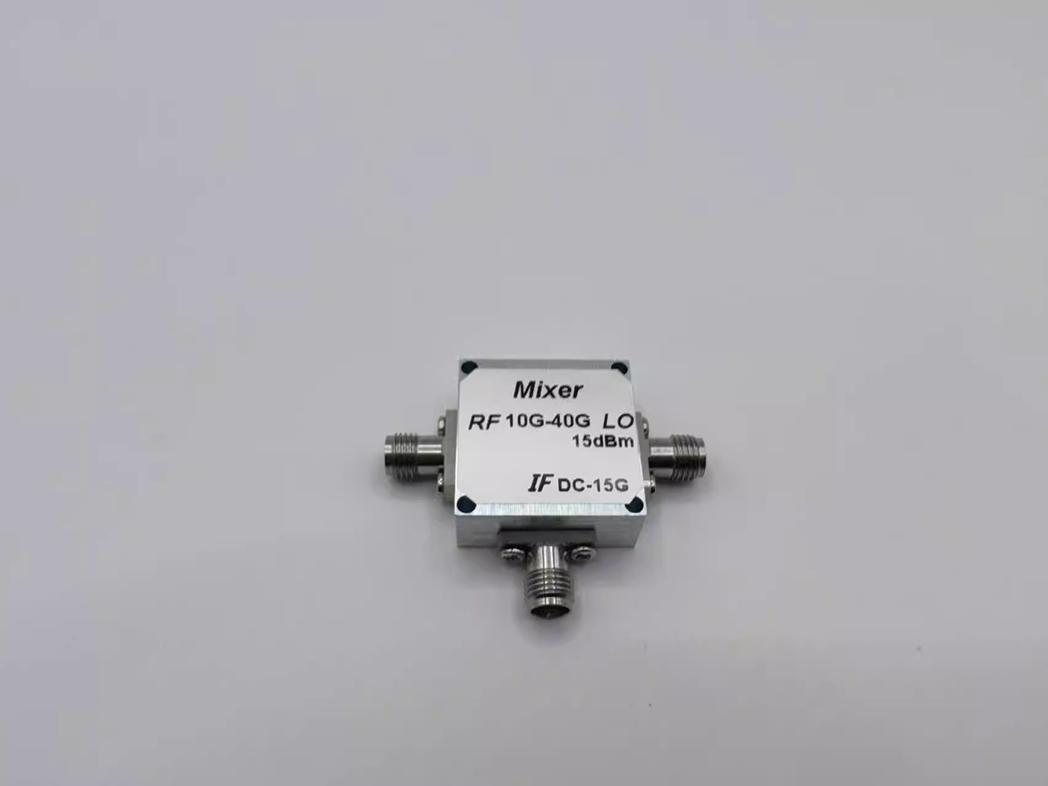

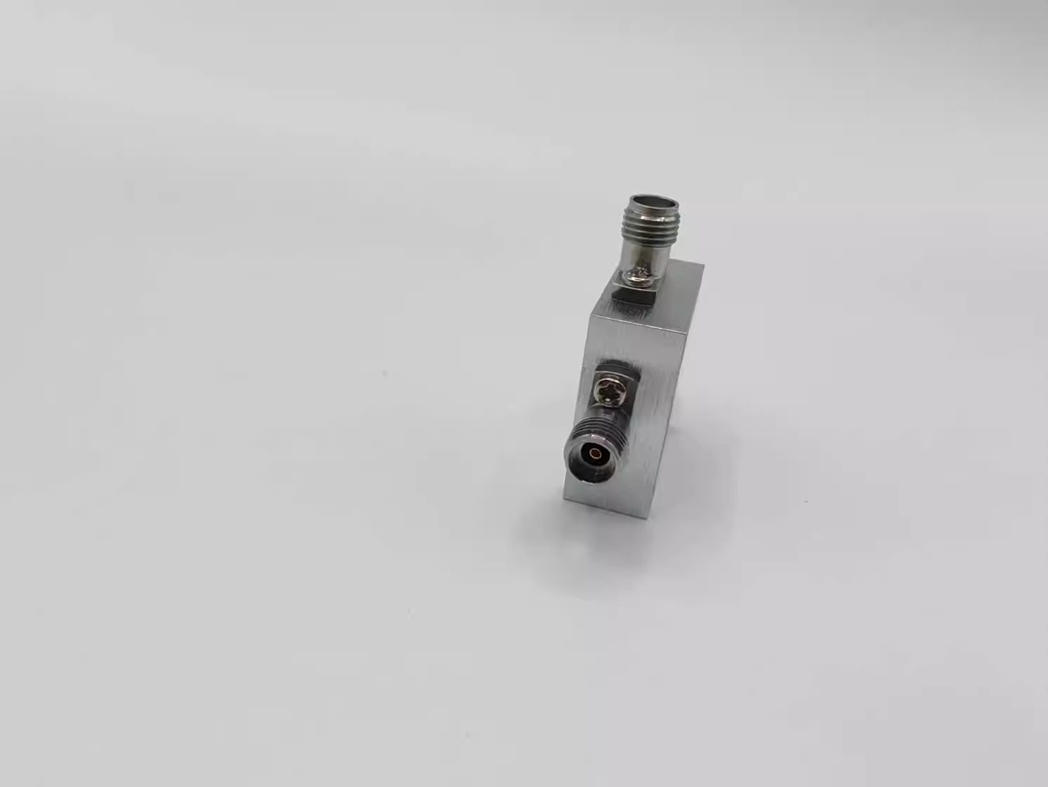

Ultra-Wideband Passive Mixer Frequency Mixer RF Mixer (RF/LO 10G-40G and IF DC-15G NF=12dB 15dBm)
Description:

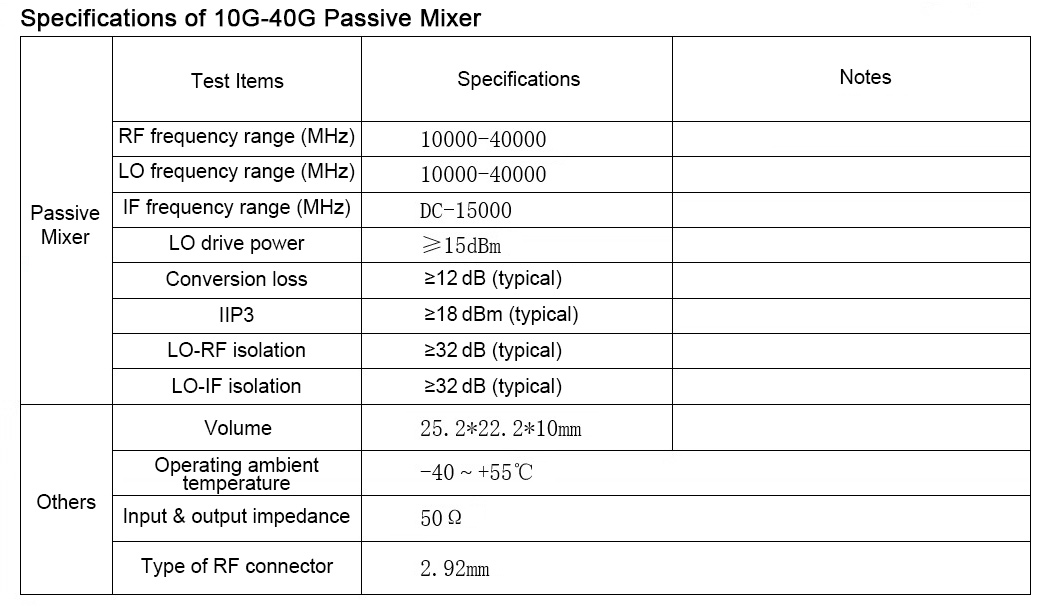

The ultra-wideband double-balanced mixer covers a frequency range of 10 GHz to 40 GHz, with an intermediate frequency (IF) band ranging from DC to 15 GHz. It operates across the C, X, Ku, and Ka bands. This ultra-wideband mixer adopts a high-performance detachable 2.92 mm RF connector. It can be used as a test module or directly soldered onto a PCB. It serves as a broadband up/down conversion module for transceivers, featuring excellent high isolation and IIP3 performance. The intermodulation and spurious signals generated after mixing are minimal. A mechanical outline drawing is provided. It can be used either as a system-level module or as a verification platform for frequency conversion.
Packing List:
* 1 x Ultra-Wideband Passive Mixer
Packaging Details:
* Weight: 0.25kg
