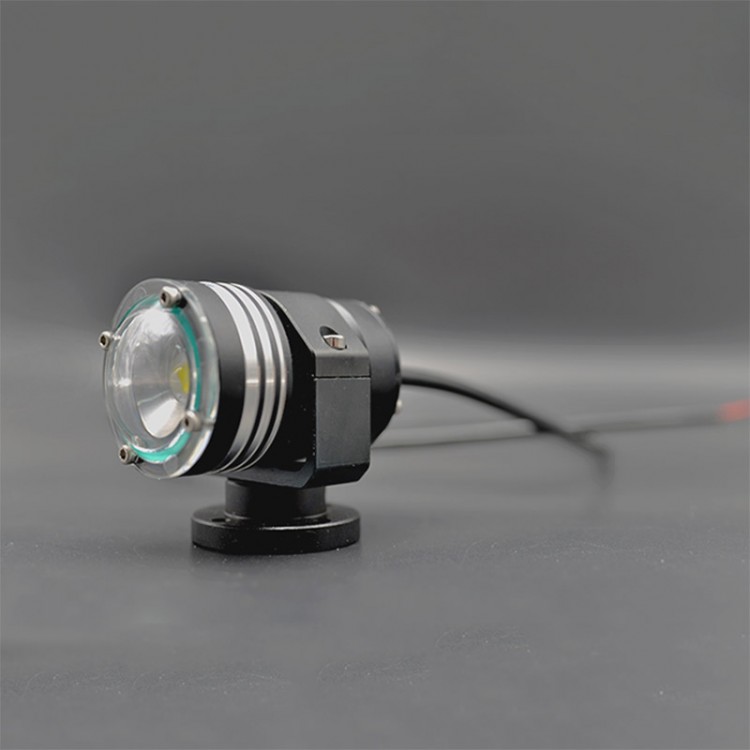

Underwater Lighting Lamp Waterproof Light 2200LM 300m Water Depth for Robot Lighting w/ Mounting Bracket
Specification:
Power: 20W(Max)
PWM range: 1100-1900μs
Voltage (DC): 12-18V
LED wick life: 5000h
Pressure water depth: 300m
Wiring: red-V +12~28V; black-GND; yellow-PWM
Brightness: 2200 lumen
Operating Mode:
1. PWM mode: support PWM dimming, PWM pulse width: 1100-1900μs.
2. Forced switch mode: the yellow wire and the red wire are connected to the power at the same time, the light will be lit with the highest brightness. In the forced switch mode, the light needs 3~4s to judge the mode before the light will be lit.
Operating Temperature:
-10~+80℃, the lamp body is heat dissipation by the contact of the shell and water. If the LED lamp is lit in the air for a long time, when the temperature of the lamp body exceeds 80℃, the lamp will automatically reduce the brightness to protect the LED lamp from being damaged. After the lamp temperature is reduced, the brightness will be automatically restored. It is recommended not to use this lamp in the air for a long time, because the maximum brightness of the lamp cannot be used for a long time in the air, and it will accelerate the aging of the LED lamp.
Package List:
-1 x Underwater Lighting Lamp
-1 x Mounting Bracket
