UNI-T MSO3502CS (MS03502CS) 2.5GS/s 500MHz 2-Channel Ultra Phosphor Digital Oscilloscope without AWG

UNI-T MSO3502CS (MS03502CS) 2.5GS/s 500MHz 2-Channel Ultra Phosphor Digital Oscilloscope without AWG

Description:
The UPO3000CS/MSO3000CS/MSO3000CS-S series digital phosphor oscilloscopes adopt UNI-T's innovative Ultra Phosphor™ digital 3D technology platform, enabling deep memory, high waveform acquisition rate, real-time waveform recording, and playback.

Advantages:
* The series offers 500MHz/350MHz bandwidth options and a real-time sampling rate of up to 2.5GS/s.
* Available in 2- or 4-channel models, with a total of 10 variants.
* Standard memory depth: 56Mpts per channel, expandable up to 224Mpts per channel.
* Normal sampling provides a maximum waveform acquisition rate of 200,000wfms/s, while Fast Acquire mode reaches up to 1,000,000wfms/s.
* Hardware real-time waveform recording and analysis support recording of up to 120,000 frames.
* The unique Multi-Scopes 2.0 feature allows independent and stable display of arbitrary signals at different frequencies, enabling one oscilloscope to perform tasks that would otherwise require multiple oscilloscopes.

Features:
* Bandwidth: 350MHz/500MHz, 2/4 analog channels
* Real-time sampling rate: 2.5GS/s
* Memory depth: Standard 56Mpts per channel (expandable up to 224Mpts)*
* Digital channels: 16 channels, digital memory depth 56Mpts (MSO models only)*
* Input impedance: Switchable (1MΩ/50Ω)
* Waveform acquisition rate: Up to 1,000,000wfms/s (Fast Acquire)
* Built-in 50MHz dual-channel function/arbitrary waveform generator (MSO-S only)*, supports real-time loading of oscilloscope screen data to AWG arbitrary waveform output
* Bode plot loop testing and analysis functionality (optional)*
* Hardware real-time waveform recording and analysis: Up to 120,000 frames; supports export to USB storage devices
* FFT functionality: 1Mpts, supports frequency settings, waterfall plots, detection settings, and marker measurements
* Multi-Scopes 2.0: Supports multi-channel independent triggering with stable phosphor display
* Multi-channel independent 7-digit hardware frequency counter
* DVM functionality: Multi-channel independent AC/DC True RMS measurement
* Practical zone trigger function: Acquires sporadic signals and observes complex signals
* Protocol trigger and decoding: Standard RS-232, I²C, SPI; optional CAN, CAN-FD, LIN, FlexRay*
* Display: 8-inch multi-point capacitive touchscreen, supports gestures including tap, swipe, zoom, edit, and drag
* Programming support: SCPI standard commands
* Supports WEB access and control

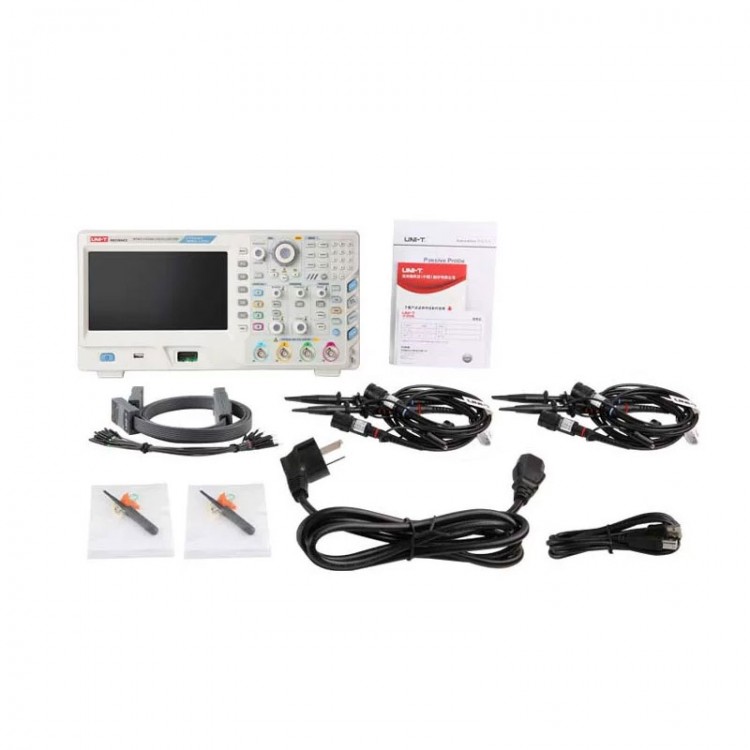

Packing List:
* 1 x Set of Oscilloscope

Packaging Details:
* Weight: 4kg
