UNI-T UPO7104N 100MHz 4-Channel 2GSa/s Phosphor Oscilloscope Digital Oscilloscope for Vehicles

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,058.89
  • Price in reward points: 10589 Reward Points: 106
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,037.71 $1,016.53 $984.77 $942.41 Contact US
Quantity:

UNI-T UPO7104N 100MHz 4-Channel 2GSa/s Phosphor Oscilloscope Digital Oscilloscope for Vehicles

Description:

The UPO7000N series digital oscilloscopes adopt UNI-T's innovative digital 3D technology Ultra Phosphor 2.0. Featuring a brand-new appearance upgrade, the series supports deep memory, high waveform acquisition rate, real-time waveform recording and playback, and 256-level grayscale display.

This series is available with two bandwidth options: 100MHz and 200MHz. It offers a real-time sampling rate of up to 2GSa/s, comes standard with 4 channels across the entire series, and features a maximum memory depth of 56Mpts. In Fast Acquire mode, the maximum waveform acquisition rate reaches 500,000wfms/s. Hardware real-time continuous waveform recording and analysis can handle up to 120,000 frames. It supports a DVM module and provides rich triggering and bus decoding functions, including full-memory hardware real-time decoding.

The UPO7000N series is widely used in many fields such as communications, semiconductors, computers, integrated circuit design, instrumentation, industrial electronics, consumer electronics, automotive electronics, field maintenance, R&D, and education.

Features:

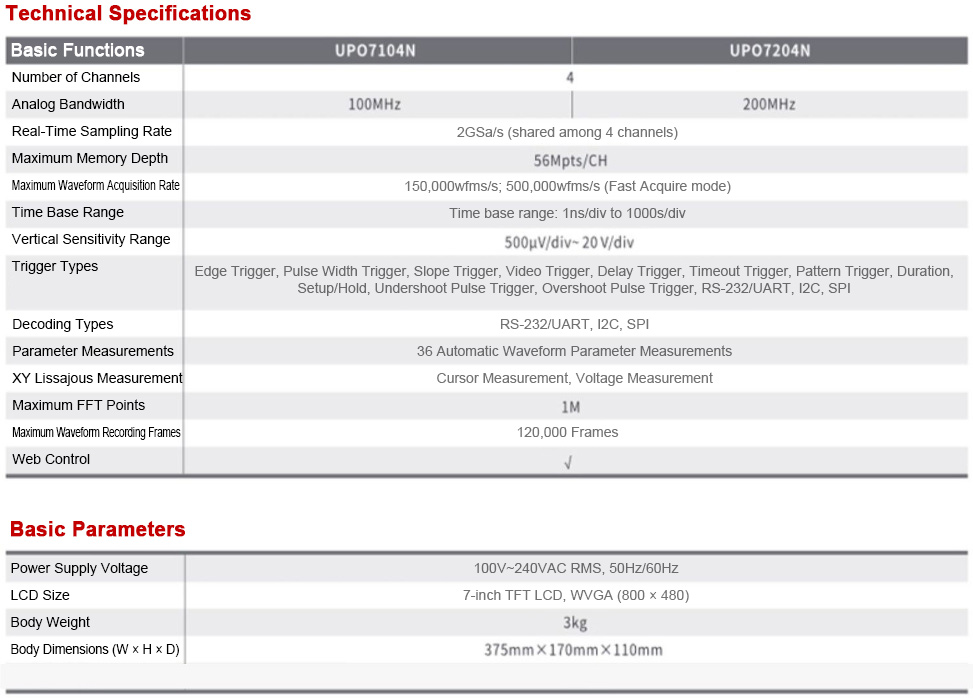

* Analog Channel Bandwidth: 200MHz or 100MHz
* Number of Analog Channels: 4
* Maximum Sampling Rate: 2GSa/s
* Vertical Sensitivity: 500μV/div-20V/div
* Low Noise Floor: < 100μVrms
* Maximum Memory Depth: up to 56Mpts
* Maximum Waveform Acquisition Rate: 500,000wfms/s
* Hardware Real-Time Continuous Waveform Recording: 120,000 frames
* Automatic Measurement of 36 Waveform Parameters, with Selectable Measurement Range: screen or cursor region
* Supports 7-bit Hardware Frequency Counter Measurement
* DVM Supports AC/DC True RMS Measurement

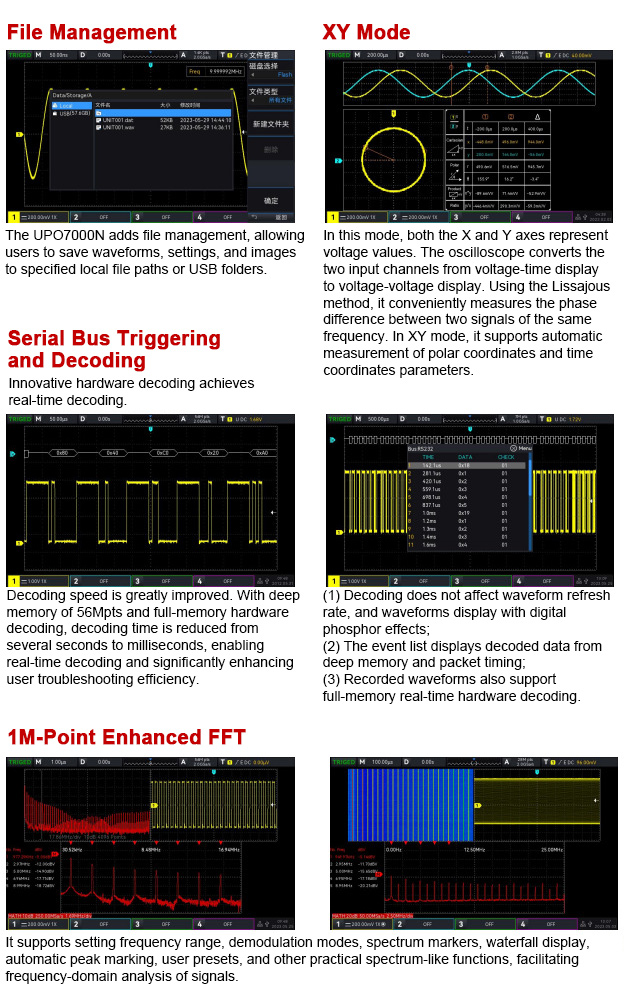

* Waveform Math Functions (FFT, add, subtract, multiply, divide, digital filtering, logic operations, and advanced math)
* 1M-Point Enhanced FFT Function: supports frequency setting, waterfall display, demodulation setting, and marker measurements
* Rich Trigger Functions (edge, pulse width, video, slope, undershoot pulse, overshoot pulse, delay, timeout, duration, setup/hold, Nth edge, and pattern trigger)
* Standard RS232, I2C, SPI Trigger
* Standard RS232, I2C, SPI Full-Memory Hardware Real-Time Decoding

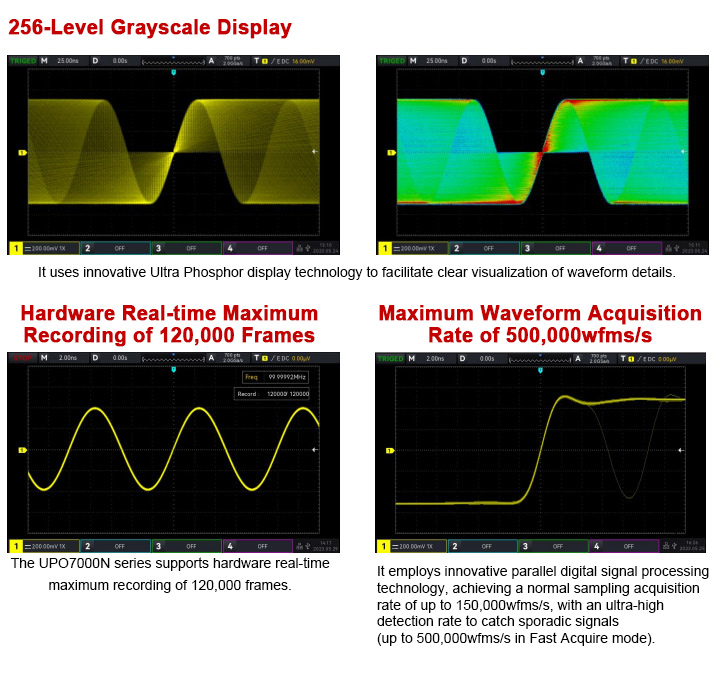

* Ultra Phosphor Super Phosphor Display Effect, with up to 256-level Grayscale Display
* 7-inch WVGA (800 × 480) TFT LCD Screen
* Rich Interfaces: USB Host, USB Device, LAN, EXT Trig, AUX Out (Trig Out, Pass/Fail, DVM), RS232

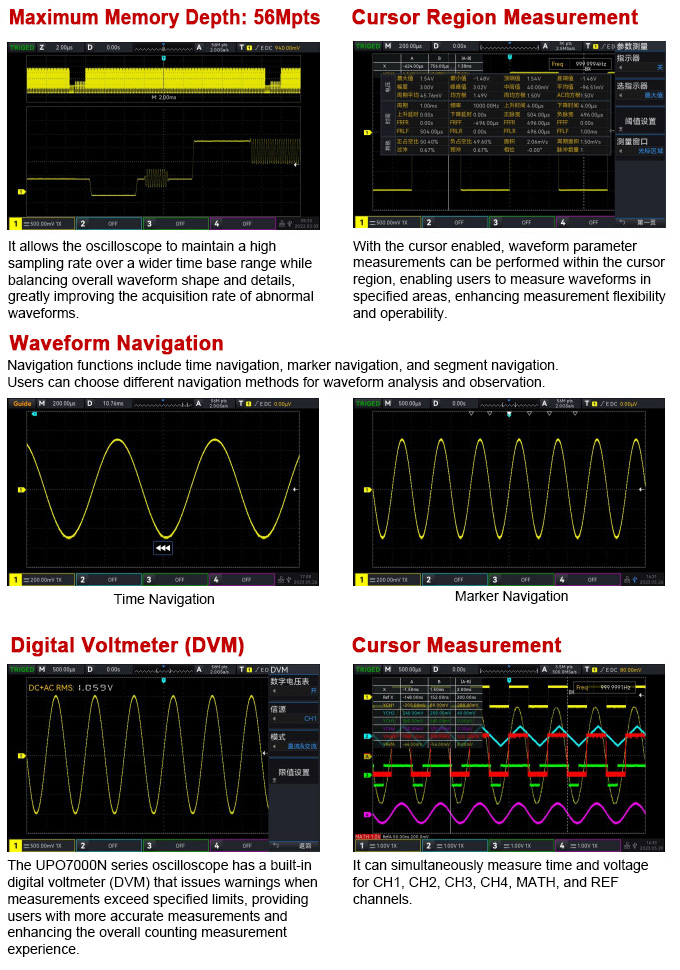

* Supports Waveform Navigation, Markers, and Segments
* Supports SCPI Programmable Instrument Standard Commands

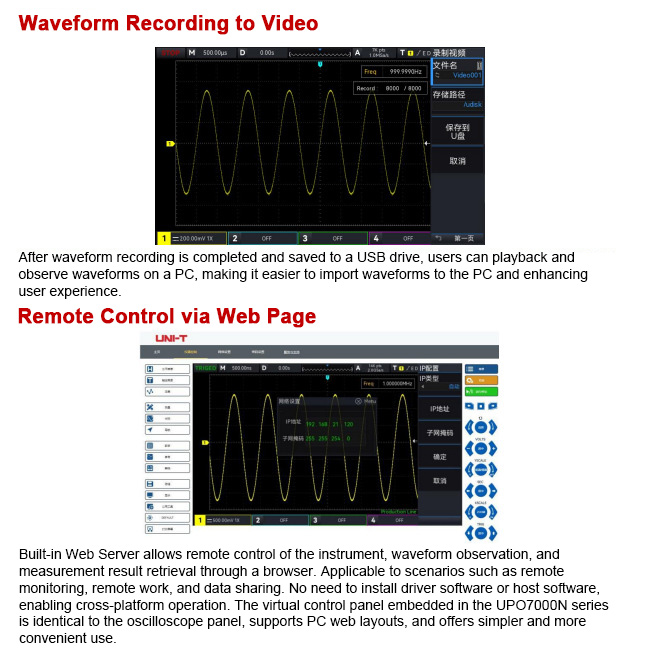

* Supports Web Access and Control

Packing List:
* 1 x UPO7104N Phosphor Oscilloscope
* 1 x Power Cord
* 1 x Quick Start Guide
* 1 x USB Data Cable (UT-D14)
* 4 x Passive Probes (100MHz) (UT-P04) for UPO7104N

Packaging Details:
* Weight: 3.5kg
