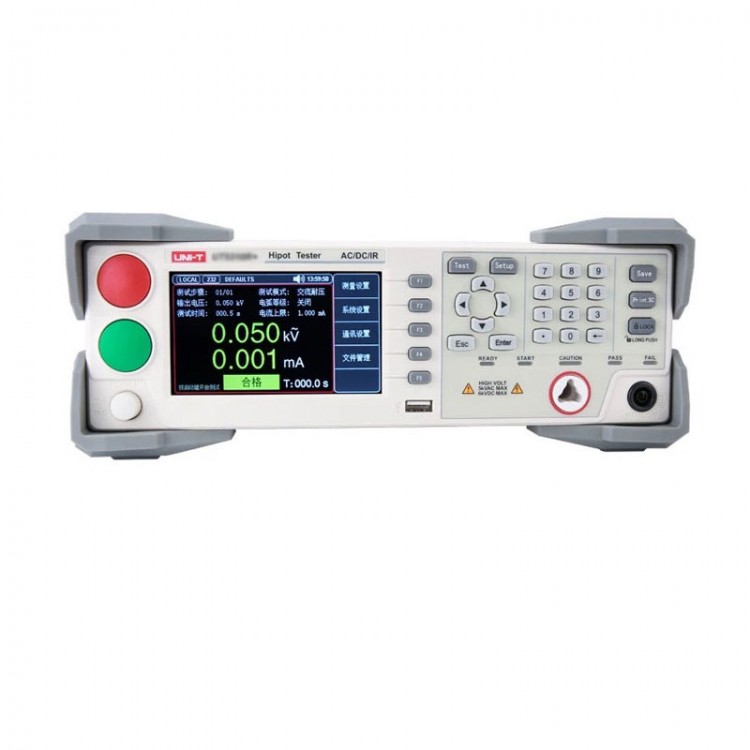

UNI-T UT5310R+ AC DC IR Programmable Hipot Tester for 5kV/10mA ACW & 6kV/5mA DCW & 0.2MΩ-10GΩ

UNI-T UT5310R+ AC DC IR Programmable Hipot Tester for 5kV/10mA ACW & 6kV/5mA DCW & 0.2MΩ-10GΩ

Description of UT5300X+ Series:
The UT5300X+ series features a 4.3-inch true-color LCD display, and various physical buttons and a numeric keypad allow quick setup of all test conditions. The unit is controlled by a high-performance 32-bit microprocessor for ARM, capable of real-time measurement of all safety parameters of the device under test. All circuit modules within the instrument are fully isolated, providing strong anti-interference capability. This instrument integrates multiple testing functions, including electrical strength (AC/DC withstanding voltage) and insulation resistance. And it can be widely applied to safety performance inspections of household appliances, transformers, electrical equipment, and components, meeting the production line requirements for rapid testing.

Features of UT5300X+ Series:
Multiple Functions, Powerful Configuration
* The Ideal Testing Tool for Engineers
* TFT LCD Display
* Audible & Visual Alarms
* Automatic Discharge
* Electric Shock Protection
* Zeroing Function
* Powerful Interface Functions
* Key Lock Function
* Storage Function
* Flexible & Convenient Settings

4.3-inch LCD Display
* Brand-new panel with a simple and user-friendly interface

Supported Test Modes
* The UT5300X+ series programmable Hipot tester provides three operating modes: AC, DC, and IR.

AC Withstanding Voltage Test
The UT5300X+ series programmable Hipot tester supports AC withstanding voltage testing:
* Voltage: 50V–5000V
* Current: 0.001mA–10mA (UT5310A+/UT5310D+/UT5310R+)
* Current: 0.001mA–20mA (UT5320R+)

DC Withstanding Voltage Test
The UT5300X+ series programmable Hipot tester supports DC withstanding voltage testing:
* Voltage: 50V–6000V
* Current: 0.001mA–5mA (UT5310D+/UT5310R+)
* Current: 0.001mA–10mA (UT5320R+)

Insulation Resistance Test
* The standard insulation resistance test voltage is 2.5kV, with an optional 5.0kV for more testing scenarios. The UT5310R+ and UT5320R+ support 2.5kV DC / 10GΩ insulation resistance testing.

Over-current and Arc Detection Function
* It detects arcing caused by closely spaced PCB traces or poor contact between components.

Powerful Interface Functions
* It is equipped with an industrial control Handler (PLC) interface, optional RS-485, RS-232C (for PC) and LAN. It supports both SCPI and Modbus RTU communication protocols, enabling efficient remote control and data acquisition, allowing the instrument to adapt to various automated test system requirements.

Application Fields
* It can be widely applied to safety performance inspections of automated test systems, household appliances, transformers, motors, electrical equipment, electric heating appliances, the lighting industry, new energy vehicles, electronic components, and medical devices.

Packing List:
* 1 × Power cord
* 2 × Spare fuses (2A)
* 2 × High-voltage red and black test clips
* 1 × High-voltage probe test lead (small & without switch)
* 1 × RS-232C communication cable
* 1 × Factory calibration report

Packaging Details:
* Weight: 11.2kg

Special Notice:
* The product images and descriptions shown on this page may differ slightly in material and details from the actual product due to variations between production batches. Please understand and refer to the actual item received. The experimental data provided on this page are theoretical values obtained from internal laboratory tests and are for reference only; they must not be used by customers as a basis for making purchase decisions in this store. This is hereby stated. If you have any questions, please contact our online customer service for detailed consultation.
