UNI-T UT612 Handheld LCR Meter Inductance Capacitance L/C/R/DCR/Q/D/ESR Test

SKU: 33951
0(0 Reviews)
Write a review(Get Thanksbuyer Points!)

Availability: In stock, usually dispatched in 1 business day

Price:$129.86
Price in reward points: 1299 Reward Points: 13

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$127.26	$124.67	$120.77	$115.58	Contact US

Buy it now Add cart

You might like

SUP-C703S Signal Generator & Process Calibrator – mA, V, Ω, RTD, Thermocouple Output & Measurement $156.44
6000A 20µH Air Core Inductor for Dual Pulse Testing and High-Performance Electrical Experiments $86.76
DP8000 Max IGBT Pulse Generator with Internally Integrated IGBT Driver (Air Core Inductor Included) $384.16

Product details
Reviews (0)

UNI-T UT612 Handheld LCR Meter Inductance Capacitance L/C/R/DCR/Q/D/ESR Test

Features:

- 100% brand new and high quality

- Power: 9V battery(6F22) (not included) or USB power

- LCD size: 40 X 63mm

- Color: Red + Grey

- Weigh: 374g

- Size: 96 X 193 X 47mm

Special Function:

- Max. Display: 19999

- D/Q Max. Display: 1999

- D/Q Resolution: 0.001

- Automatic Range

- Real time display for measuring frequency

- Measurement Models: series and parallel

- Power off automatically

- Low voltage display: ≤6.8V

- Data hold

- Relative measurement

- USB Data transmission

- USB Port /PC Data recording: 60000

- Analog bar: 26pcs

- LCD backlight

- LCR Auto identification measurement

- Voltage

Basic Function   Range                                                 Accuracy

L (H)             20uH/200uH/20mH/200mH/
                    2000mH/20H/200H2000H/20KH           ±(0.5%+5)

C (F)            200pF/2nF/20nF/200nF/
                   2000nF/20uF/200uF/2000uF/20mF       ±(0.5%+5)

R (Ω)            20Ω/200Ω/2KΩ/20KΩ/200KΩ/
                    2MΩ/20MΩ/200MΩ                             ±(0.3%+5)

Frequency        100Hz/120Hz/1KHz/10KHz/100KHz
Voltage          0.6Vrms
Parameters      L/C/R/DCR/Q/D/θ/ESR

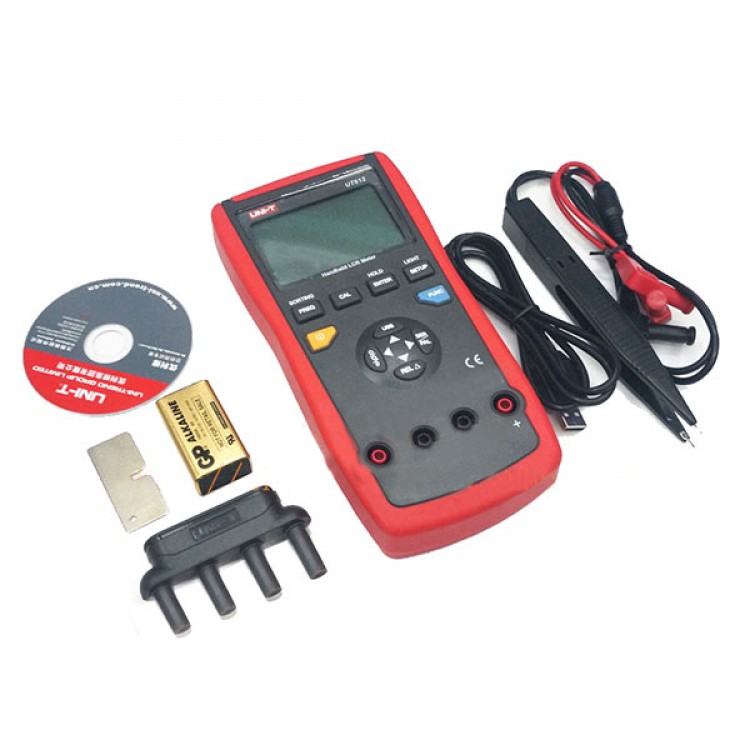

Package includes:

1x LCR Meter

1x SMD Test Clip

1x USB Cable

1x CD Software

1x Socket Adapter

1x Short-circuit Plate

1x Carrying Case
