SPECIFICATIONS
| Basic Functions | Range | Best Accuracy |
|---|---|---|
| DC Voltage | 200mV/2V/20V/200V/1000V |  (0.5%+1) |
| AC Voltage | 200mV/2V/20V/200V/750V | (0.8%+3) |
| DC Current | 20mA/2mA/200mA/10A | (0.8%+1) |
| AC Current | 20mA/2mA/200mA/10A | (1%+3) |
| Resistance | 200W/2kW/20kW/200kW/2MW/20MW/2000MW | (0.8%+1) |
| Capacitance | 20nF/200nF/ 2mF/100mF | (2.5%+5) |
| Temperture(oC) | -40oC~1000oC | (1%+3) |
| Temperture(oF) | -40oF~1832oF | (1%+4) |
| Frequency | 2kHz -10MHz(Auto Ranging) | (0.1%+3) |
| Inductance | 2mH/20mH/200mH/20H | (2%+10) |
| Logic | TTL (High > 2.0V, Low < 0.8) |  |
| Special Functions | ||
| Fused 10A Range | | |
| Diode | | |
| Continuity Buzzer | | |
| Transistor | | |
| Peak Hold | | |
| Data Hold | | |
| Display Backlight | | |
| Full Icon Display | | |
| Sleep Mode | | |
| Low Battery Display | | |
| Max. Display | 1999 | |
GENERAL CHARACTERISTICS
| Power | 9V Battery (6F22) |
| LCD Size | 62 x 53mm |

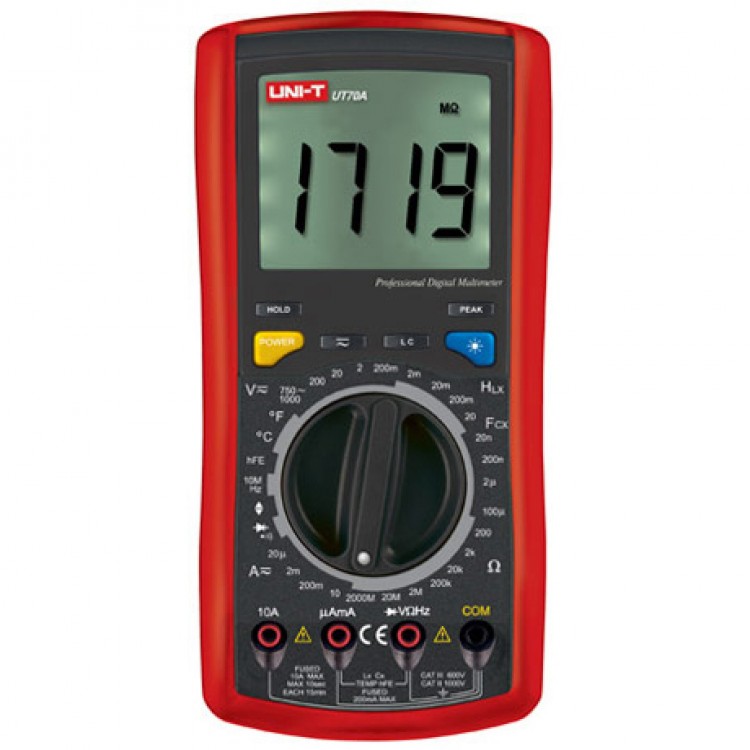

| Product Colour | UT70A - Grey, Holster - Red |
| Product Net Weight | 620g (including holster) |
| Product Size | 195 x 90 x 40mm |
| Standard Accessories | Test Lead, Battery, English Manual, Point Contact Temperature Probe, Test Clip, Multi-Purpose Socket, Holster |
| Optional Accessories* | Clip-On Test Lead Light (UT-TL), Built-In Test Lead Light (UT-L1), Built-In Test Lead Light Plus (UT-L2), Carrying Bag |
| Standard Packing | Gift Box |
| Standard Quantity Per Carton | 20 pcs |
| Standard Carton Measurement | 535 x 365 x 380mm (Around 0.074 CBM Per Standard Carton) |
| Standard Carton Gross Weight | 22.7kg |
