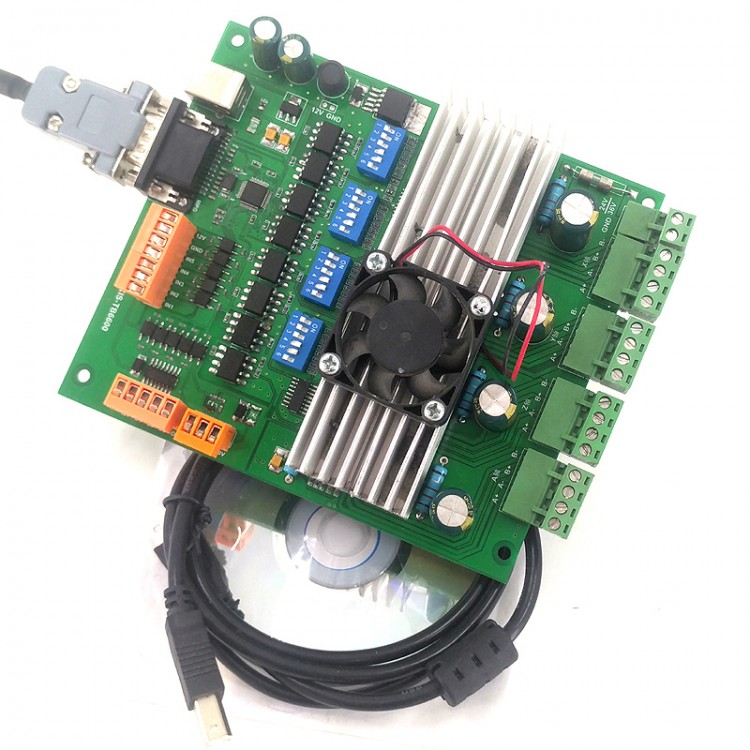

USB MACH3 4 Axis TB6600 Stepper Motor Driver Controller Board 100KHz + USB Cable + CD
Details:
- Motor Type: Stepper Motor
- Model Number: TB6600
Package Included:
- 1 x USB MACH3 4 Axis –TB6600 Card
- 1 x USB Cable
- 1 x CD
Features:
1. Support for 4-axis linkage, you can connect four stepper motor drives or servo drives
2. Maximum step –pulse frequency is 100KHZ, which is suitable for the servo or stepper motor
4. 4 general purpose opto-couplers isolation input: can connect the limit switch, emergency stop switch .auto tool zero, home switch, etc.
5. Support for connecting electronic handwheel;
6. Have 0-10V signal output, you can use mach3 software to control the spindle motor speed.
7. 4general-purpose isolated relay drive output interface, can drive four relays for controlling the spindle starts, forward rotating and reverse rotating, pumps or other device;
8. 1 status LED, indicate connection status on the board.
9. Resolution 1, 1\2, 1\8, 1\16 micro stepping output;
10. Four (or three) channels 3.5A adjustable output current for 2/4 phase bipolar stepper driver;
11. Bulid with 4 outputs and 5 inputs.

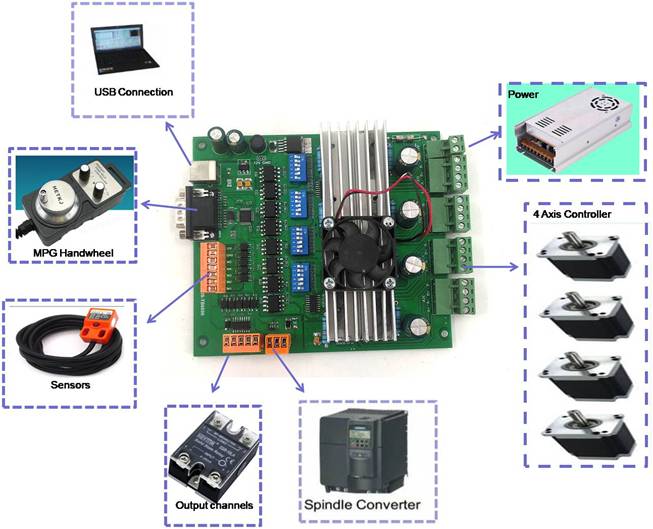

Basic Connection Diagram:
