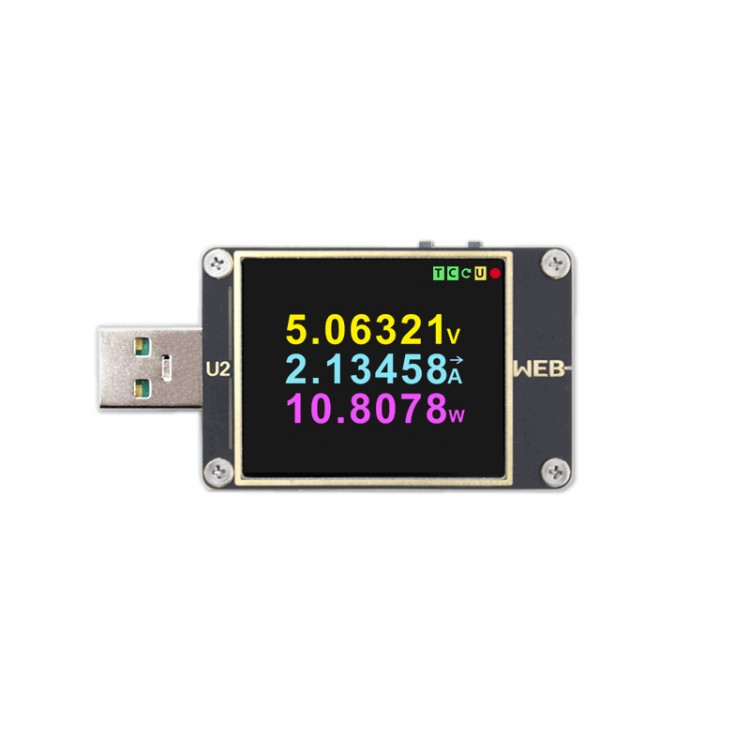

USB Tester Voltmeter Ammeter Digital Display PPS QC4 PD 3.0 Fast Charging DC 4-24V

SB Tester Voltmeter Ammeter Digital Display PPS QC4 PD 3.0 Fast Charging DC 4-24

Product details:

- Support detecting multi quick charging protocol automatically.

- Gesture recognition when double clicking U2

- Built-in gravity sensor, automatic rotate screen in 0°, 90°, 180°, 270°.

- High-precision 6-digit display, just click one button to change display mode between 5-digit and 6-digit

- Support external HID power supply

- Testing charger is so easy, just plug USB tester into it, then connected it to the socket, no cable is needed.

- Not only detect current and voltage while charging, but also identify device information.

- Built-in temperature sensor, shows the real-time temperature internally.

- Fully record charge, discharge process, voltage, current, temperature, time variation.

- Support PD3.0 PPS QC4 plus detection trigger motion.

- Highly sensitive PD sniffer, keep real-time monitoring and communication measurement, -convenient to grab data anytime.

- It is workable for low-voltage NI-MH battery

Specifications:

- Item Name: USB Tester

- Material: PCB

- Voltage Measuring Range: DC 4-24V

- Current Measuring Range: 0-5A

- Voltage Resolution: 0.0001V

- Current Resolution: 0.0001A

- Voltage Precision:  0.1%  ± nd

- Current Precision:  0.1%  ± nd

- Ampere-time Capacity: 99999Ah (6 Groups)

- Ampere-time Resolution: 0.0001Ah

- Watt-hour Capacity:  99999Wh (6 Groups)

- Conduction Time: 100h

- Charging Time: 100h

- Built-in Load: Built-in Current Modulation Low Load MTK

- Bluetooth: V4.0

- Firmware Update: USB HID (No drive is needed)

- Upper PC: USB HID (No drive is needed)

- GV-sensor: 3Axes

- Main Control Chip: STM32F072 ARM Core

- Display Screen: 1.77", Color TFT, 128 x 160 resolution

- USB Port: USB 2.0 5Pin Male, USB 2.0 A Female

- Micro USB Port: 1 x input port, 1 x PC USB HID

- Type-C Port: IN and OUT

- Press Button: OK key, M key

- Temperature Sensor: 1 x Built-in sensor, external sensor is supported

- Temperature Range: -40℃ to 180℃

- D+D-Voltage: Supported

- Quick Charge Protocol: Support trigger detection

- PD Trigger Motion: PD 2.0 PD 3.0 PPS QC4 +E-Marker

- Memory: FRAM Ferroelectric (100 billion refresh times)

- Static Power Consumption: Screen Off, Turn Off Data Port<10mA

- Internal Resistance: About 35Ω when USB port is connected

- Serial NO.: Built-in Identified Serial No

- Size: 52.5 x 34.5 x 13 mm

- Gross Weight: 0.2kg

Package Includes:

- 1 x USB Tester

- 1 x Acrylic Panel

- 1 x Package Box

Note:

External temperature sensor is optional.
