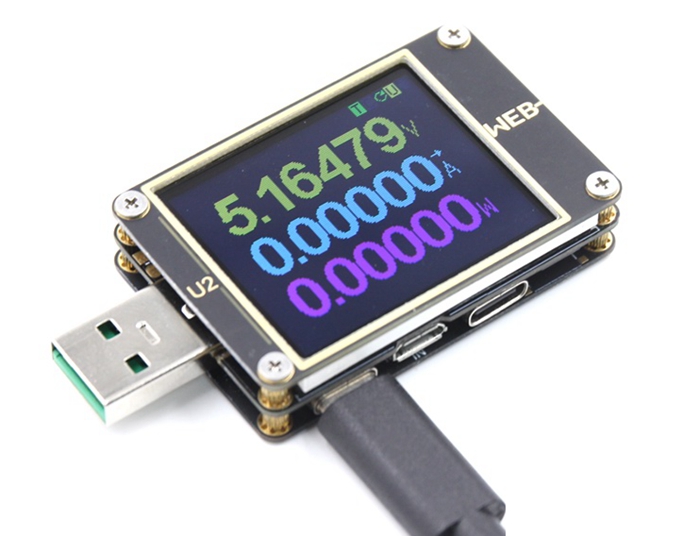

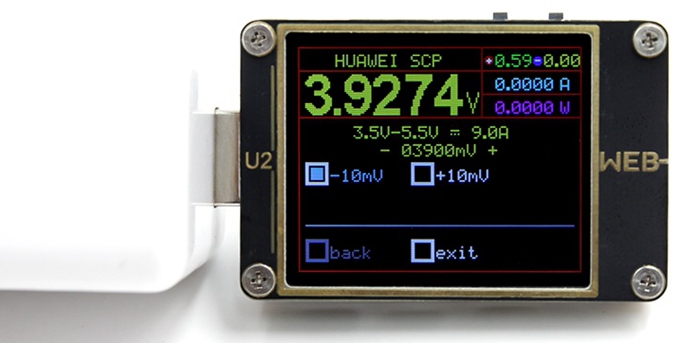

USB Voltage Current Meter Detector PPS QC4+ PD 3.0 2.0 Fast Charge Protocol Capacity Test

USB Voltage Current Meter Detector PPS QC4+ PD 3.0 2.0 Fast Charge Protocol Capacity Test

Specifications:
- Model: WEB-U2 Voltage Current Tester
- Main Control Chip: STM32F072 ARM Core
- Display: 1.77 inch Color TFT, Resolution 128*160
- External Size: about 52.5 x 34.5 x 13mm

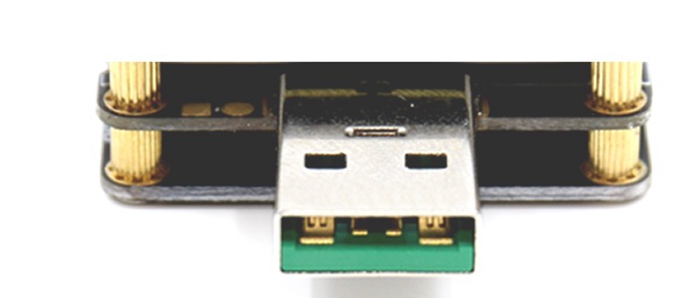

- USB Ports: USB2.0 5P Male, USB 2.0A Female
- Micro USB: 2 Ports: One for input, the other for USB HID
- Type-C: 2 Ports: IN & Out
- Buttons: 2 Buttons: OK & M
- Temperature Sensor: One inside; can be connected with an external sensor
- Measuring Temperature Range: -40℃ to 180℃

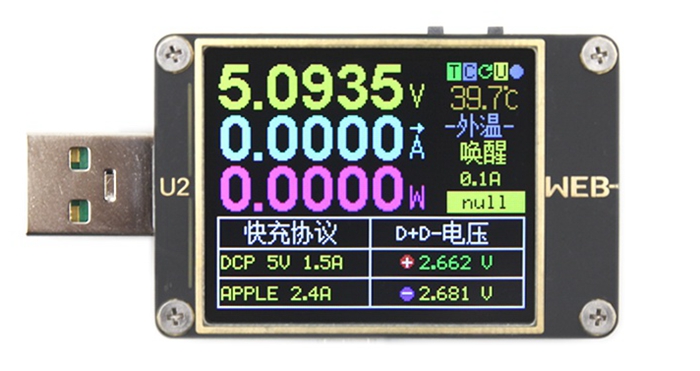

- D+ D- Voltage: Can be measured

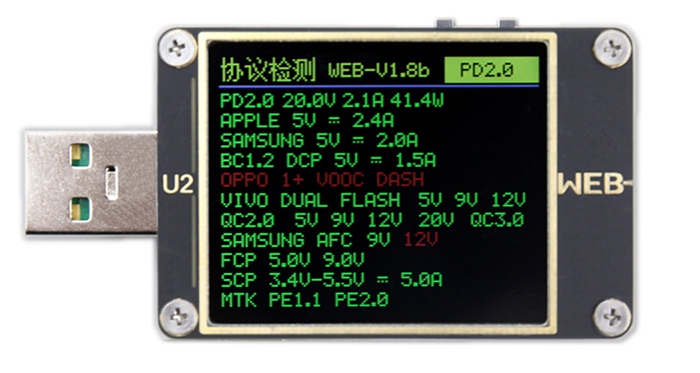

- Fast Charge Protocol: Support detection trigger

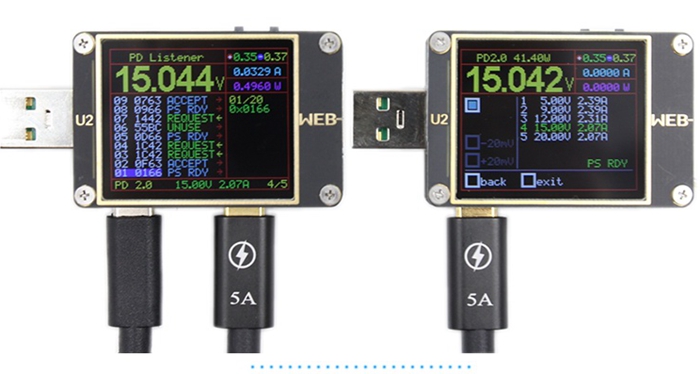

- PD Trigger: PD 2.0, PD3.0, PPS QC4+ E-Marker
- Storage: FRAM (Life span: 10 billions times to refresh)
- Static Power Consumption: screen shutdown, closed data port ＜10mA
- Impedance: USB connection port 35mΩ
- Serial Number: built-in independent SN body identification serial number

- Voltage: DC 4-24V
- Current: 0-5A
- Voltage Resolution: 0.0001V
- Voltage Accuracy: 0.1% ±nd
- Current Resolution: 0.0001A
- Current Accuracy: 0.1% ±nd
- Amp-Hour Capacity: 99999 mAh (6 groups)
- Amp-Hour Resolution: 0.0001Ah
- Watt-Hour Capacity: 99999 Wh (6 groups)
- Watt-Hour Resolution: 0.0001Wh
- Power-on Time: 100 Hours
- Charging Time: 100 Hours
- Built-in Load: Built-in current modulation small load MTK
- Bluetooth Module: Bluetooth 4.0 wireless module (optional)
- Firmware Upgrade: USB HID without drive
- PC Host Computer: USB HID without drive

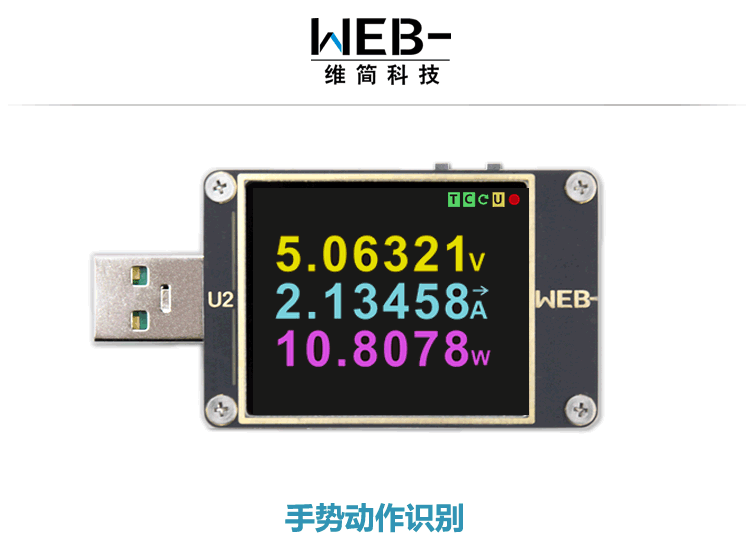

- Gravity Sensor: Built-in three-axis gravity sensor

Material Sources:
- Main Control Chip: STM32F072 ARM Cor
- Storage Chip: Fujitsu FRAM
- Gravity Sensor: NXP
- USB Female: FOXCONN
- MicroUSB Female: Molex
- Type-C Female: KRCONN
- Crystals: EPSON
- MLCC: Murata
- Current Sampling: Vishay
- Switch: Hosiden

Package Included:
- 1 x USB Voltage Current Meter
