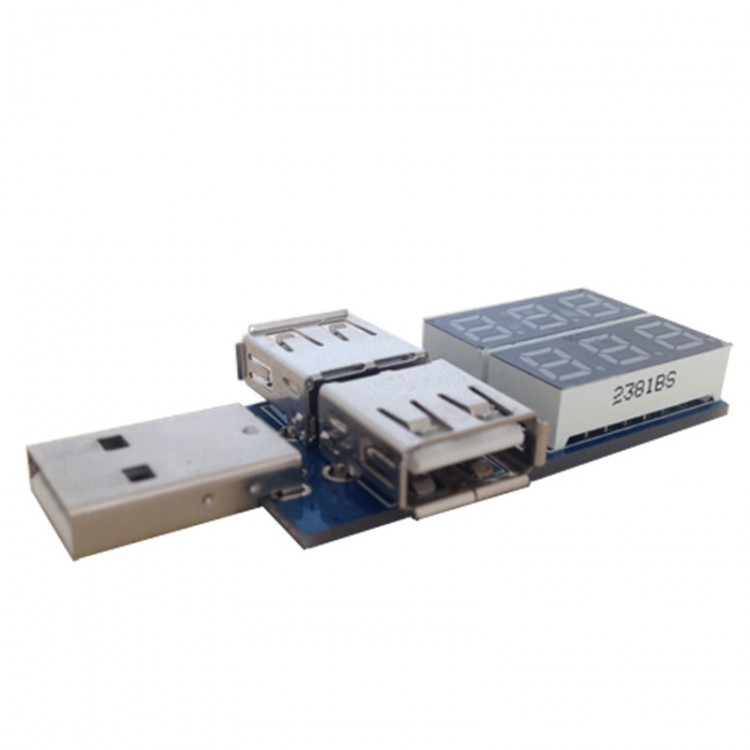

USB Voltage Detection and Current Detection Module

Availability: In stock, usually dispatched in 1 business day

  • Price:$9.08
  • Price in reward points: 91 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $8.90 $8.72 $8.44 $8.08 Contact US
Quantity:

USB Voltage Detection and Current Detection Module

Description:
USB voltage and current detection and display module, apply SCM embedded technology, Collecting data which is accurate, stable and reliable. The voltage and current can be shown by three digital tube respectively.It is widely used with mini-USB port measurement.

Feature:
- Apply SCM embedded technology
- USB2.0, without Installing dnvers, plug and play
- Two USB can be matched externally, one of them can transfer the USB data
- Module with small volume, easy to take and use;

Pammeter:
- Operating voltage range: DC 4.3V-12v
- Voltage accuracy: 0.01V
- Operating current: <10mA
- Detectlon current range: OA-3A
- Current accuracy: 0.01A

Basic Features:
- USB is USB male, Dlrect connect to a PC or device with a USB Interface
- USB1 and USB2 are USB extension for this module, can be directly Inserted into the device with a USB male heads, for voltage and current detection, can be USB data transmltted via USB2 Interface .

Operating instruction:
Input:
Insert the USB male head Into the device with USB Interface directly,such as through USB extension cable connect to PC.Due to the extension cable itself, it wlll consume.Voltage is smaller than a standard 5V USB power supply.
Output:
Insert the device With USB male head to two USB female head of thls module directly, it can insert two device with USB male head at the same time

Package included:
1xUSB Voltage Detection and Current Detection Module
