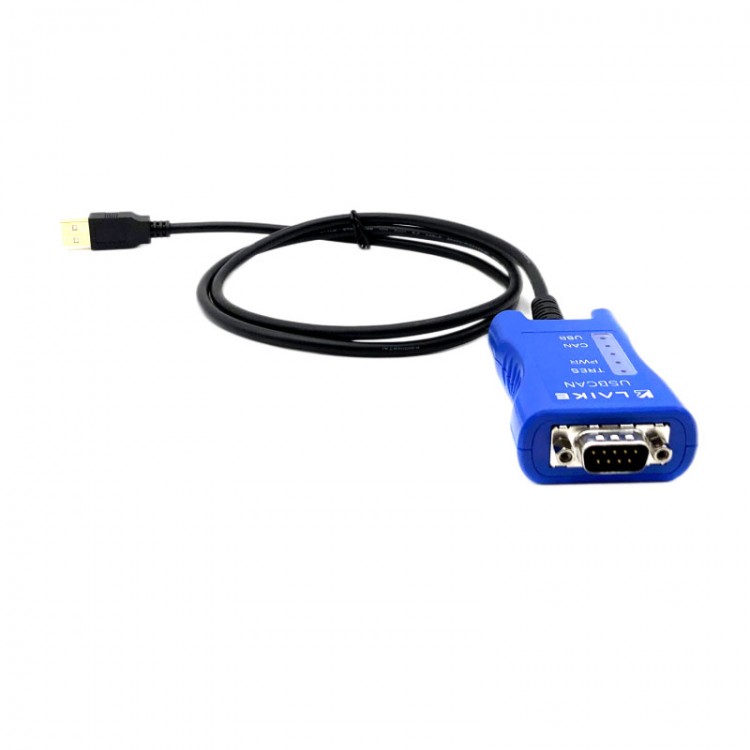

• USBCAN-01222 Linux Portable 2 Channel DB9 Interface to CAN Bus Data Protocol Analyzer Interface Card

USBCAN-01222 Linux Portable 2 Channel DB9 Interface to CAN Bus Data Protocol Analyzer Interface Card

Availability: In stock, usually dispatched in 1 business day

  • Price:$100.99
  • Price in reward points: 1010 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $98.97 $96.95 $93.92 $89.88 Contact US
Quantity:

USBCAN-01222 Linux Portable 2 Channel DB9 Interface to CAN Bus Data Protocol Analyzer Interface Card

Parameter:

- Model: USBCAN-1
- PC interface: high speed USB2.0(480Mbps), compatible with USB 3.0 and USB1.1
- Power supply: USB power supply

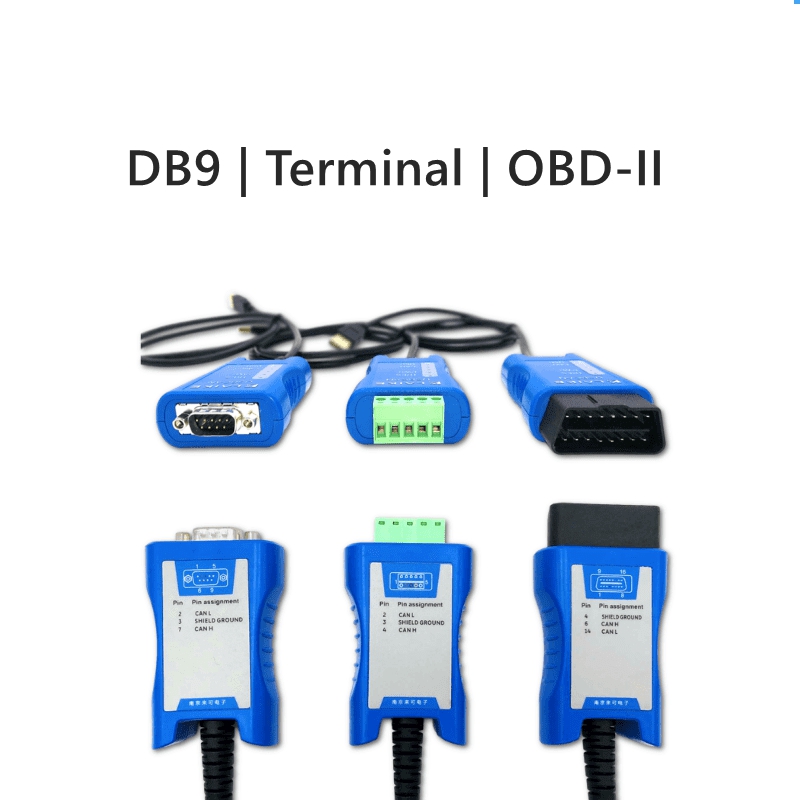

- Interface type: DB9 Male / Terminal /OBD - II
- CAN channel number: 1

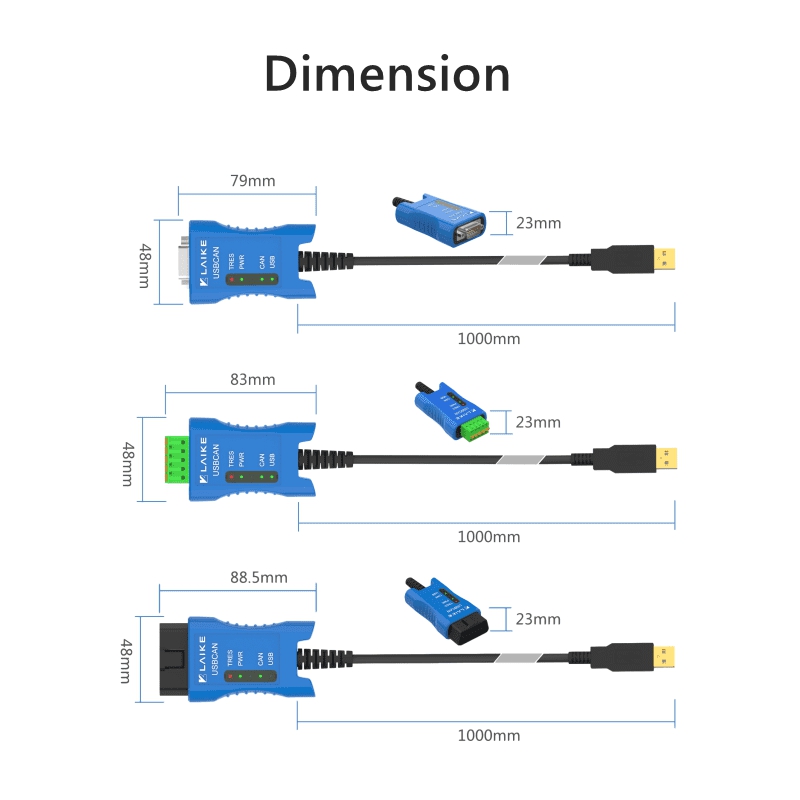

- Size: DB9: 79 x 48 x 23mm; Terminal: 83 x 48 x 23mm; OBDII: 89 x 48 x 23mm
- Working temperature: -40℃~85℃
- CAN standard: in accordance with CAN 2.0A/2.0B/ ISO/DIS 11898-1/2/3
- CAN Baud rate: support 5Kbps~1Mbps, common baud rate or user-defined arbitrary baud rate is optional
- Data receiving and transmitting capability:a 8000frame/s for transmission; 14000 frame/s for receiving
- CAN isolation: independent isolation of each channel, isolation voltage up to 3000VDC
- EMC: ESD contact discharge 8KV, surge ± 1KV, pulse group ± 2KV
- Authentication: CE-EMC/FCC/authentication
- Termination resistor: Built-in 120 ohm, default disable
- More details: https://www.intlak.com/h-pd-1.html

Package Included:
- 1 x USBCAN Analyzer
