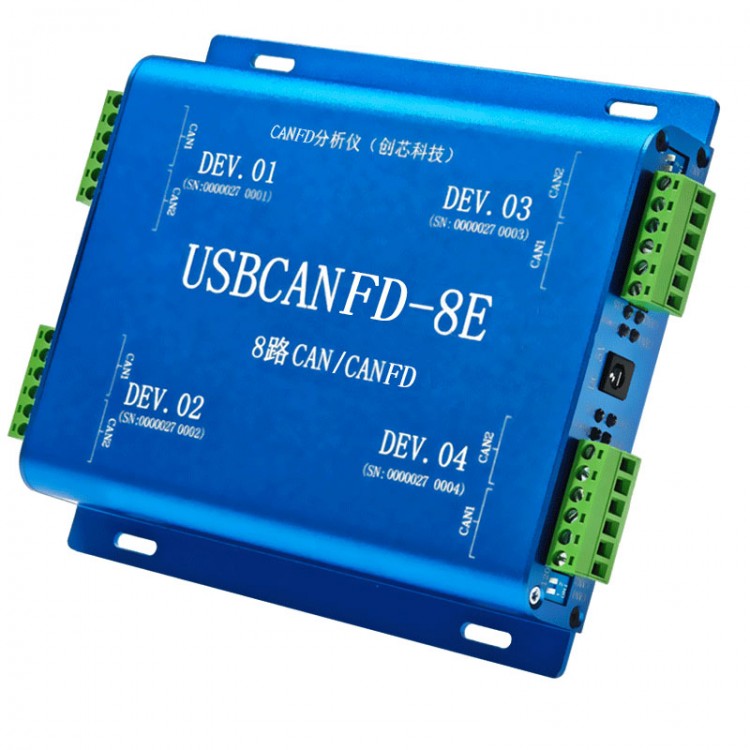

USBCANFD-8E Industrial 8-Channel CAN Analyzer 480Mbps USB2.0 3KV Electrical Isolation Compatible with CANFD Protocol

USBCANFD-8E Industrial 8-Channel CAN Analyzer 480Mbps USB2.0 3KV Electrical Isolation Compatible with CANFD Protocol

Description:
- The USBCANFD-8E interface card integrates 8 CAN channels internally. The CAN interface is designed for industrial use and comes with a magnetic coupling isolation module, which has strong anti-static and surge resistance capabilities. The 9 ports between USB and the 8 CAN channels are isolated with an isolation voltage of 3000V, supporting relay function and transparent transmission function, and can adapt to various strict working conditions and environments.
- The USBCANFD-8E can synchronously monitor and collect up to 8 CAN bus data channels, and with the integration of on-board analysis processes, conduct in-depth diagnostic analysis of the vehicle bus, making automotive engineering simpler.
- Built-in 4 high-performance processor chips, no data transmission bottleneck, can handle full load data at any baud rate, and still record data for a long time without losing frames.
- USBCAN-8E, with its comprehensive upper computer software and excellent multi-channel concurrent testing capabilities, is widely used in research and development testing fields such as automotive components, power battery vehicle E/E architecture, and autonomous driving.
- Supports CAN2.0A/B, remote optimization upgrade, DBC protocol parsing and sending, relay function, transparent transmission function, and intelligent filtering function.
- The CAN baud rate can be automatically recognized in the full range of 5Kbps~1Mbps, and supports programming for arbitrary settings, making it simple and efficient.
- Provide various mainstream development platform engineering sample source codes, provide secondary development function libraries, support various development environments, and only require simple modifications to meet working requirements, making it efficient and easy to use.
- Applications: Diagnosis and monitoring of new energy vehicles, development of automotive electronic network diagnosis, debugging of CAN interface sensors, error frame display, data transmission and reception, CAN bus network diagnosis and testing, simulation of CANopen master station debugging of slave servo motors, and learning of CAN communication equipment development and debugging.

Key Features:
- Protocol conversion between USB and CAN bus.
- Equipped with 2 CAN interfaces.
- The USB interface supports USB 3.0 and USB 2.0, and is compatible with USB 1.1.
- Supports CAN2.0A and CAN2.0B protocols, standard frames and extended frames; Support data frame and remote frame formats.
- Supports bidirectional transmission, CAN sending and receiving.
- The baud rate of the CAN controller can be selected between 10Kbps and 1Mbps and can be configured through software.
- The 8-channel CAN adopts high-speed magnetic coupling isolation and dual isolation DC-DC power supply; There are a total of 9 ports isolated between USB and 8 CAN channels.
- Isolation voltage level: 3000V
- CAN1 channel with built-in GDT ceramic discharge tube, which can effectively release surge current.
- The 8-channel CAN channel has built-in common mode coils/inductors, greatly improving anti-interference ability.
- Support relay function, transparent transmission function, 3000V isolation between CAN1 and CAN2.
- Traffic: Two CAN channels (running simultaneously) can receive 8500 frames/s and send 8500 frames/s respectively (both channels can receive 8500 frames/s at the same time, and USB speed can reach 17000 frames/s without losing frames).
- USB bus provides direct power without the need for an external power source.

Specification:
USB Interface:
- Working voltage: 5V (through USB port or DC-DC power supply)
- Interface form: USB-B type interface
- USB2.0 speed rate: 480Mbps

CAN Interface:
- CAN channel numbers: 8 channels, adopting high-speed magnetic coupling isolation, the dual isolation DC-DC power supply is isolated between 9 ports, including USB and 8 CAN channels, respectively
- Interface form: terminal interface
- Matching resistor: the 8-channel CAN is equipped with two 120ohms terminal resistors, which can be enabled through switches
- Data transceiving ability: each CAN can receive up to 20000 frames per second and send up to 5000 frames per second
- Data transceiving buffer: the receiving buffer for each CAN channel is 1500 frames, and the sending buffer is 64 frames (automatically resent in case of sending failure)

Indicator:
- PWR: power indicator
- SYS: system status indicator, normally off for common situation; normally on when there is an error on the bus
- CAN1: CAN1 channel indicator (flash when transceiving)
- CAN2: CAN2 channel indicator (flash when transceiving)

Others:
- Supported system: for WindowsXP/7/8/10/11 system, Linux system
- Vehicle DBC protocol transceiving: upper computer enable
- Secondary development: support
- Working temperature: -40℃ to 85℃
- Shell material: aluminum alloy metal body + 3D flame-retardant insulation baffles on both sides (patented design), better preventing metal tip discharge, improving product safety factor and service life
- Product size: 180 x 156 x 41mm

Package Included:
- 1 x CAN Analyzer
