Description:
- Fully support CAN Classic 2.0B and CANFD protocol, up to 8000kbps data baud rate
- Ultra-high performance that domestic similar products are difficult to match, and ultra-low price that is difficult to match in the entire network
- Single device and dual channel simultaneously send and receive, support multiple devices, up to 16 channels can be connected at the same time, convenient for batch testing & control
- USB2.0 HS interface high-speed communication, high throughput, compatible with FS interface, strong adaptability
- Innovative three-level frame buffer design, no frame loss in a 24-hour bus full load test in classic scenarios such as 500kbps
- Industry-leading host computer functions, supporting enterprise-level functions such as DBC loading/recording playback/signal analysis/curve drawing/node simulation/UDS/automatic testing
- Support loading UDS 27 security algorithm DLL to automatically unlock ECU (compatible with CANoe security DLL interface)
- Support secondary development, support Python-can/Linux/Raspberry Pi, rich and practical example programs help you quickly customize enterprise-level upper-level applications independently
- 2 hardware-level real-time receiving filters per channel, exclusive support for message load content filtering
- 1 hardware-level timing sending task, self-increasing/random mode and other modes can be configured as you like
- Each channel has a built-in 120Ω terminal resistance, which helps you avoid complicated bus connections and reduce the failure rate
- Powerful automatic detection function of baud rate and terminal resistance helps you avoid complicated software configuration and improve work efficiency
- Computer USB interface over-current protection, strong protection of your computer safety
- Bus ESD protection to reduce bus failures caused by signal interference
- 2500V industrial electrical isolation

Exclusive support for 8000kbps baud rate
- Support CAN-FD bit rate switching (BRS)
- Support CAN-FD oversized 64-byte message load, 64 bytes*2500 packets/sec, message transmission and reception without frame loss
- Before leaving the factory, each analyzer passes the CAN-FD arbitration section 500kbps + data section 2000kbps classic car scene test

Customers who need to use ultra-high baud rates above 2000kbps, please note:

Please use high-quality low-capacitance twisted pair cables with a total length of no more than 1.5m
A 120 ohm terminal resistor is connected to each end of the twisted pair
Please keep good electromagnetic shielding for twisted pair
Please set the sampling point position of the CANFD analyzer reasonably (75% recommended)

Note:

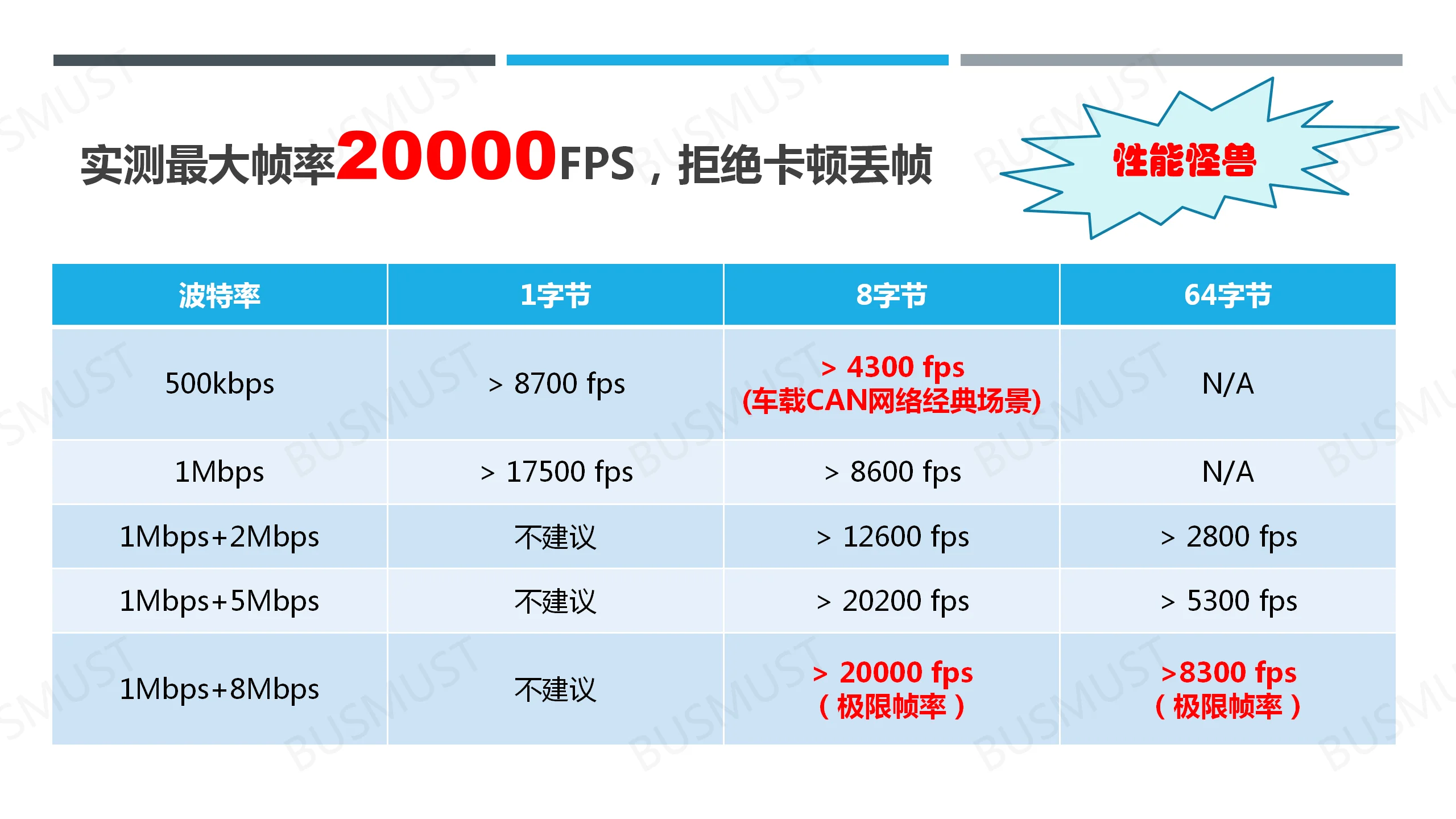

The above test data source is imported PeakCAN-USB-Pro (support CANFD) sent and generated in PcanView, the test conditions are close to full load
The frame rate information of the above test comes from the automatic receiving statistics function in the Network statistics in the BusMaster enterprise-level host computer provided by this product
In the 64-byte long message mode, although the frame rate is less than 20000fps, the data throughput is as high as 500kB/s, which is larger than the 8-byte short message!
