Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $66.38 | $65.02 | $62.99 | $60.28 | Contact US |

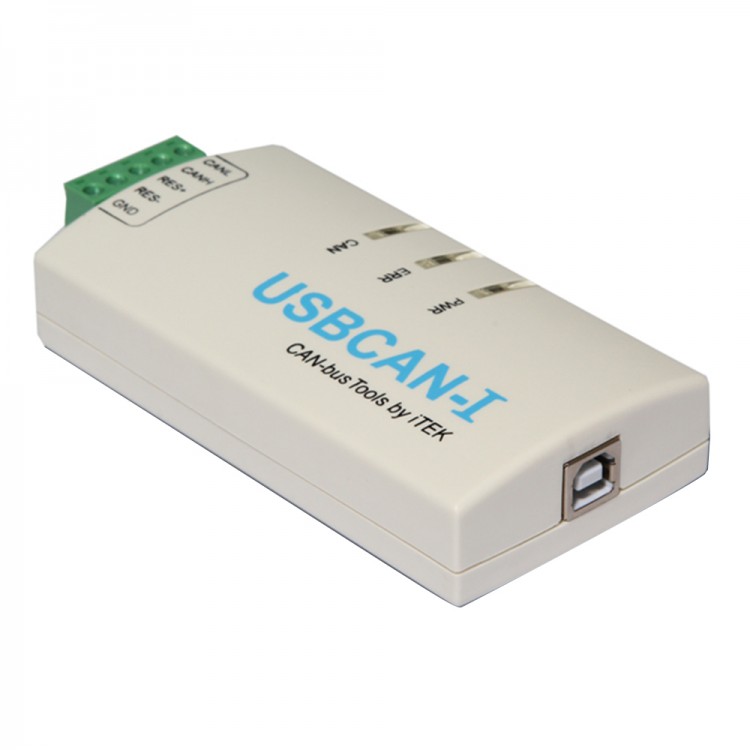

USBCAN-I Single Channel with Isolation Smart USB CAN Analyzer Professional CAN-BUS Tool
Description:
- Compatible with ZLG USBCAN
- Integrate 1 channel isolation CAN interface
- USN interface is compatible with USB2.0 USB1.1 protocal
- In accordance with specifications of CAN 2.0A/B, ISO11898
- Support 5kbps-1Mbps baud rate setting
- Provide the second development routine like VC,VB,Delphi,C#,Labview and Linux
- Support WinXP, Win7/8/ Linux system
- CAN channel DC2500V electrical isolation, electrostatic contact discharge 8Kv
Specification:
- Operating temperature: -40~80 deg C
- Storage temperature: -55~85 deg C
Application:
- BMS
- New energy automobile diagnosis
- New energy automobile parts producing detection
- Transverse Machine Control System
- Automation control system
Function:
- Bus real time frame traffic and bus load rate statistics
- Alias settings
- Data monitor
- Task send
- Send files
- Files save
- Software filtering function
- Baud rate adaptive
Package included:
- 1 x USBCAN-I
- 1 x CD
- 1 x USB cable
