Product Description:
USRP B200mini-i can be used to replace your USRP B200MINI. It outperforms the original one in measured performance, transmitting power, and receiving sensitivity.

Features:
- Highly integrated; RF range 70 MHz-6 GHz
- Supports the maximum real-time bandwidth of 56MHz and the reference sampling rate of 61.44MS/s
- Support full duplex communication
- Supports high-speed USB 3.0 connections
- 10MHz reference or PPS sync trigger
- Physical Dimensions: 83.3 x 50.8 x 8.4mm/3.3 x 2 x 0.3"
- Open source UHD supports multiple frameworks
- User programmable FPGA for Spartan 6 XC6SLX75
- Operating temperature range: -20 to 60℃
- All aluminum alloy shell
- GPIO interface and JTAG interface, support to control external devices and debug FPGA programs
- Requires UHD3.9.0 or newer driver version support
- Supports for GNU Radio open source software framework

Parameters:
Input/Output:
- DC voltage input: 5V

Conversion Module Parameters:
- ADC sampling rate (max): 61.44MS/s
- ADC resolution: 12bits
- DAC sampling rate: 61.44MS/s
- ADC resolution: 12bits
- Max rate with host (16b): 61.44MS/s
- Local oscillator accuracy: ±2.0ppm

RF Performance Parameters:
- Input third-order intercept point: -20dBm
- Output power: >10dBm
- Noise figure: < 8dB

Physical Properties:
- Dimensions: 5.0 x 8.4cm/2 x 3.3"
- Operating temperature range: -20 to 60℃

Performance Description:
This is a software radio device. The product design is very delicate, only the size of a business card, and supports 1-receive and 1-transmit full-duplex communication. The device integrates an AD9364 RF chip for Analog Devices and a programmable FPGA for Xilinx Spartan-6. Its frequency coverage is from 70MHz to 6GHz. This flexible and convenient platform is ideal for hobbyist and OEM applications.

The maximum instantaneous bandwidth of the transceiver channel of the device is 56MHz, and it is connected to a computer through the USB 3.0 interface. The USB interface also be used to supply power to the device. The device also includes a set of GPIO interfaces, and a PPS trigger signal input port for synchronization (this port can also be configured as a 10MHz reference clock input port). Supporting USRP Hardware Drivers (UHD), UHD compatibility enables users to efficiently develop applications and then seamlessly port to high-performance USRP X-Series or embedded USRP E-Series devices.

Application:
- OEM and system integration. The device is only the size of a business card, and it is cost-effective. Ideal for integration into other wireless systems. The Ref/PPS ports can be used to synchronize with other devices in the system, while the GPIO ports can be used to control other devices in the system.
- Software radio enthusiasts and newbies. The UHD driver provides a very rich API programming interface, which is convenient for beginners to get started quickly, and shortens the development time of radio amateurs in FM/AM broadcasting, cellular network and other applications.
- Wireless signal detection and analysis. The GNU Radio software framework provides abundant tools and algorithm modules, which allow us to easily detect and analyze wireless signals.

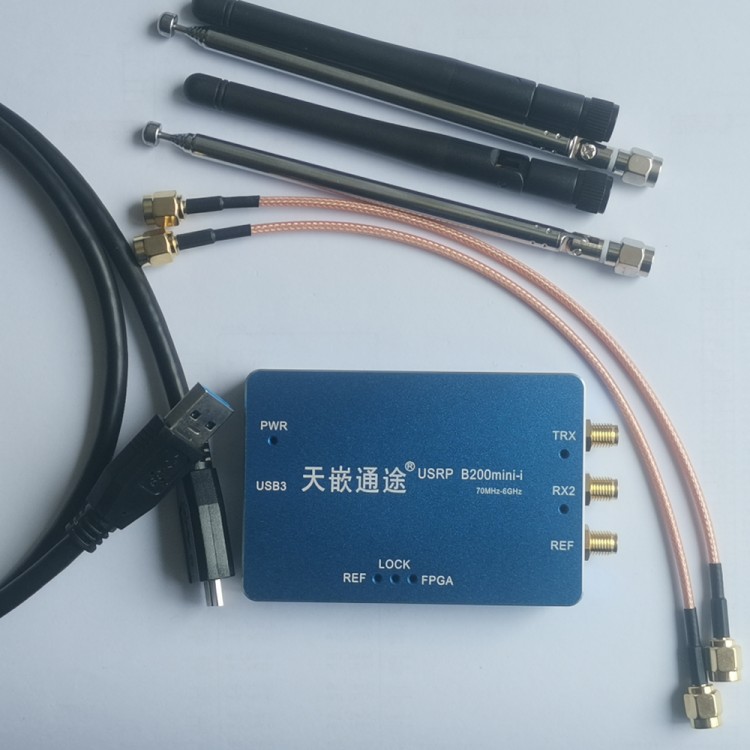

Package Included:
- 1 x USRP B200mini-i
- 2 x Telescopic Antennas (60M~1G)
- 2 x Rubber Antennas (with a center frequency of 2.4G)
- 2 x RF Cables
- 1 x Micro USB 3.0 Cable

Note:
- Items in different colors will be delivered at random. Please make sure that you don't mind before purchasing. Thank you!
