USRP B200mini-i SDR Software Defined Radio Metal Shell 70MHz-6GHz Supports Full Duplex Communication

Availability: Out Of Stock

  • Price:$633.19
  • Price in reward points: 6332 Reward Points: 63
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $620.53 $607.86 $588.87 $563.54 Contact US
Quantity:

USRP B200mini-i SDR Software Defined Radio Metal Shell 70MHz-6GHz Supports Full Duplex Communication

Description:

It is a compatible version. The measured performance is better than the official original version in terms of transmit power and receiving sensitivity.

Features:
- Highly integrated, radio frequency range from 70MHz-6GHz
- Support maximum real-time bandwidth 56MHz, 61.44MS/s reference sampling rate
- Support full duplex communication
- Supports high-speed USB 3.0 connection
- 10 MHz reference or PPS synchronization trigger
- Physical size: 83.3 x 50.8 x 8.4 mm
- Open source UHD supports multiple frameworks
- User programmable for Spartan 6 XC6SLX75 FPGA
- Operating temperature range: -20 to 60°C
- All aluminum alloy shell
- GPIO interface and JTAG interface, support for controlling external devices and debugging FPGA programs
- Requires UHD 3.9.0 or newer driver version support
- Support for GNU Radio open source software framework

Related Parameters:
Input Output:
- DC voltage input: 5V

Conversion module parameters:
- ADC sampling rate (maximum): 61.44MS/s
- ADC resolution: 12bits
- DAC sampling rate: 61.44MS/s
- ADC resolution: 12bits
- Maximum rate with host (16b): 61.44MS/s
- Local oscillator accuracy: ±2.0ppm

RF performance parameters:
- Input third-order intercept point: -20dBm
- Output power: >10dBm
- Noise figure: <8dB

Physical characteristics:
- Size: 5.0 x 8.4cm
- Operating temperature range: -20 to 60°C

Performance Description:
It is a software radio equipment. The design of the equipment is very exquisite, only the size of a business card, and supports 1 receiving and 1 sending full duplex communication. The device integrates an AD9364 radio frequency chip for Analog Devices and a programmable FPGA for Xilinx Spartan-6, with a frequency range of 70MHz to 6GHz. This flexible and convenient platform is very suitable for hobbyists and OEM applications. The maximum instantaneous bandwidth of the transceiver channel of the device is 56MHz, and it is connected to a computer through its USB 3.0 interface. The USB interface also assumes the function of supplying power to the device. It also includes a set of GPIO interfaces and a PPS trigger signal input port for synchronization (this port can also be configured as a 10MHz reference clock input port). It supports USRP hardware driver (UHD). UHD compatibility enables users to efficiently develop applications and then seamlessly migrate to high-performance USRP X series or embedded USRP E series devices.

Application:
- OEM and system integration: The device is only the size of a business card and is cost-effective, making it very suitable for integration into other wireless systems. The Ref/PPS port can be used to synchronize with other devices in the system, and the GPIO port can be used to control other devices in the system.
- Software radio enthusiasts and novices: The UHD driver provides a very rich API programming interface, which is convenient for novices to get started quickly and shorten the development time of radio enthusiasts in FM/AM broadcasting, cellular networks and other applications.
- Wireless signal detection and analysis: The software framework for GNU Radio provides a wealth of tools and algorithm modules, making it easy for us to detect and analyze wireless signals.

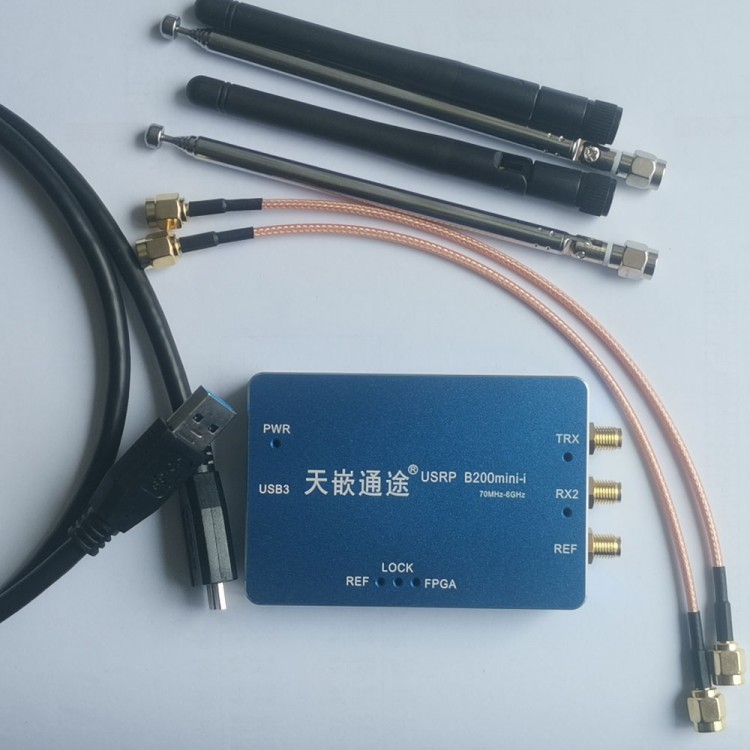

Package Included:
- 1 x Host
- 2 x Telescopic Antennas (for 60M-1G)
- 2 x Black Antennas (center frequency 2.4G)
- 1 x Micro USB 3.0 Cable

Note:
- Due to different production batches, the color of the shell may be different. Please make sure that you don't mind before purchasing.
