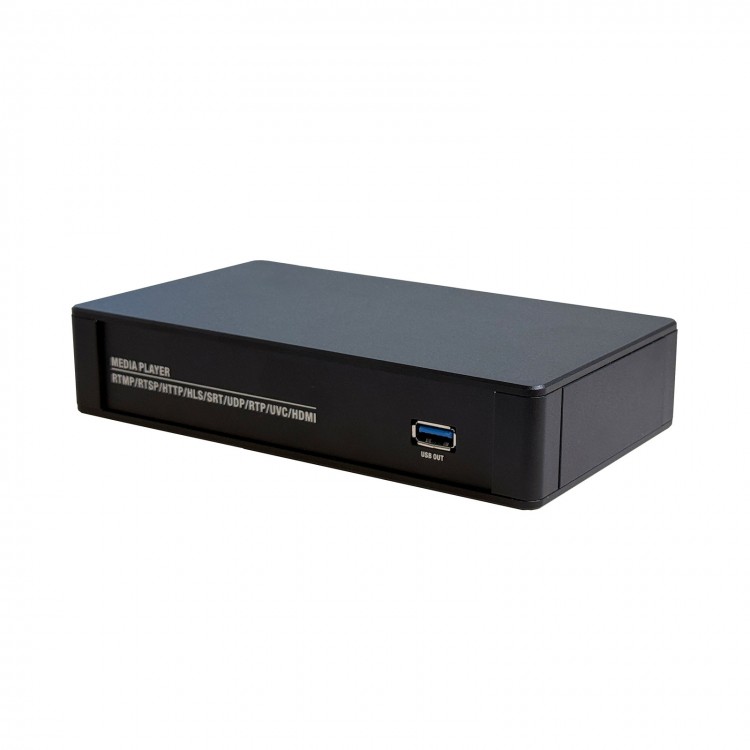

UVCStreamer HDMI-compatible Live Acquisition Card Multifunctional USB Video Acquisition Card Built-in Scene Function DVR Card

UVCStreamer HDMI-compatible Live Acquisition Card Multifunctional USB Video Acquisition Card Built-in Scene Function DVR Card

Description:

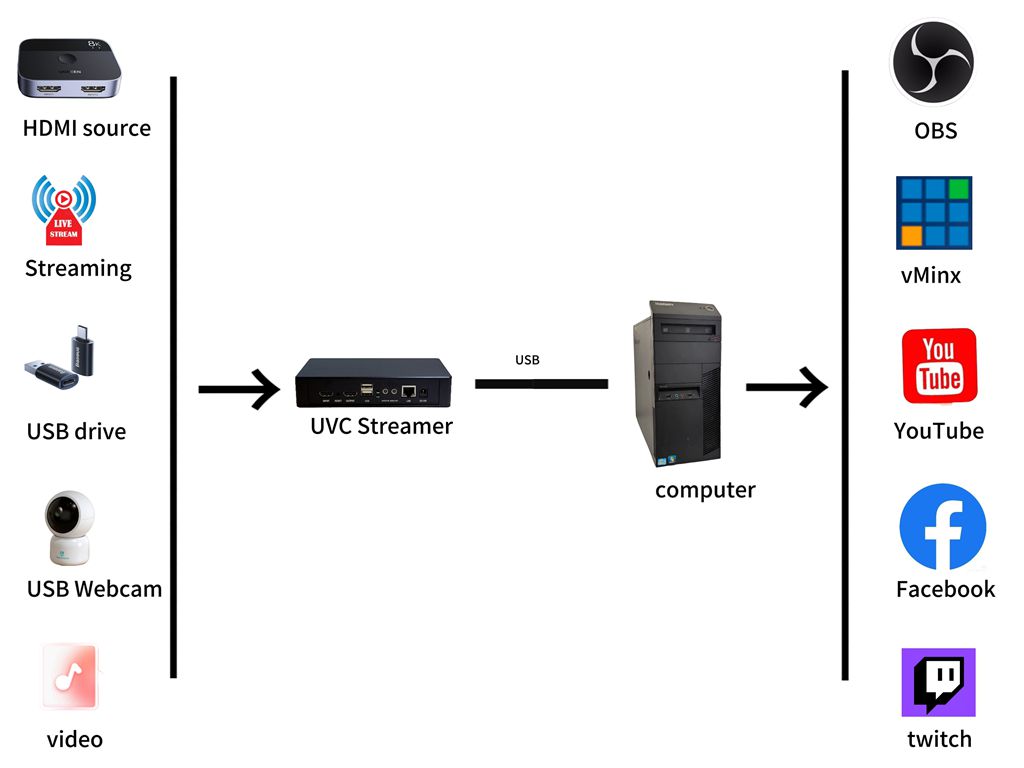

- Live Acquisition Card is a multi-functional acquisition card that can acquire various types of video (such as HDMI-compatible video, streaming video, UVC camera feed, and USB flash drive video files) and collect audio from the external 3.5mm audio jack.
- It features a built-in scene function, allowing users to add multiple scenes. Each scene supports the addition of HDMI-compatible video, streaming video, UVC camera video, USB flash drive video files, and OSD elements (including text, time, images, and scrolling text). The volume of external audio input for each scene can be controlled.
- Scenes can be output via the USB port (in the form of a camera) or the HDMI-compatible output port, with adjustable output volume. This caters to users' diverse video acquisition needs, distinguishing it from ordinary acquisition cards that only support HDMI-compatible video acquisition.
- It is widely used in fields such as education, healthcare, conferences, video surveillance, and various live streaming scenarios.

Functions:
- UVC camera output: output and connect to the live streaming platform through a camera.
- Scene: supports multiple videos and OSD overlay as scenes, and can set multiple scenes.
- Video depulication: it can be set to periodically crop images of specific pixel sizes.
- Horizontal and vertical screen output: switchable horizontal and vertical screen output.
- Video acquisition: for HDMI-compatible, streaming media, USB flash drive videos, and UVC camera videos.
- WEB: set overlay field quantity, video output parameters, update firmware, etc.

Audio and Video Access:
- Network audio and video streaming: RTMP/RTSP/HTTP TS/HTTP FLV/HLS/SRT/UDP multicast/RTP multicast/HTTP PTE
- HDMI-compatible: support 2160P at 30Hz and below
- USB interface: UVC camera support 2160P at 30Hz and below resolution; USB flash drive video support 1080P at 60Hz and below resolution

Individual Audio Input:
- 3.5MM audio port: double channel input
- Volume: 0 - 200

Audio Output:
- 3.5MM audio port: double channel output
- Volume: 0 - 100

Video Output:
- HDMI-compatible: HDMI-compatible input video/streaming video/UVC camera/USB video file/OSD (text, time, image, scrolling text) overlaid into scene output
- UVC camera: HDMI-compatible input video/streaming video/UVC camera/USB video file/OSD (text, time, image, scrolling text) overlaid into scene output

Output Setting:
- HDMI-compatible resolution: 3840x2160P 30/3840x2160P 25/3840x2160P 24/2560x1600P 60/2560x1440P 60/2560x1440P 30/1920x2160P 30/1920x1200P 60/1600x1200P 60/1920x1080P 60/1920x1080i 60/1920x1080P 50/1920x1080i 50/1920x1080P 30/1920x1080P 25/1366x768P 60/1280x720P 60/1280x720P 60/720x576P 60/720x480P 60
- UVC camera resolution: 1920 x 1080P 60
- Crop depulication: enable/disable
- Crop factor (pixels): 0 - 100 is recommended
- Crop cycle (second): 5 - 60 is recommended
- Brightness: 0 - 50
- Contrast ratio: 0 - 50
- Saturation: 0 - 50
- Output screen: landscape/portrait

Universal Parameter:
- Network: gigabit
- Configuration management: configure and manage through WEB
- Power supply: 12V DC, 2A
- Power consumption: <5W
- Working temperature: -20℃ to 60℃
- Working humidity: < 90%, non-condensing
- Product size: 17.5 x 9.8 x 3.5cm
- Net weight: 598g

Package Included:
- 1 x Live Acquisition Card
