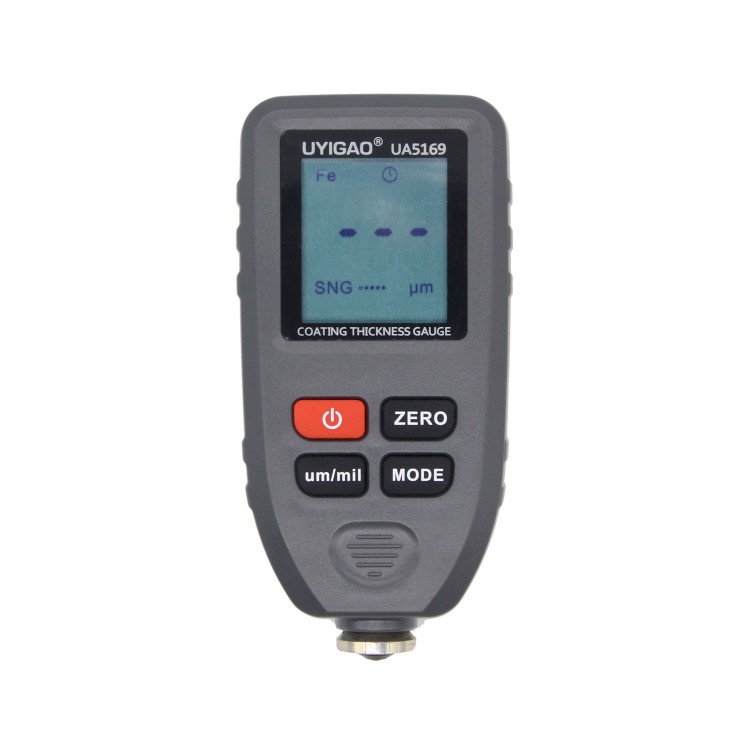

UYIGAO UA5169 Coating Thickness Gauge Mil Thickness Gauge Paint Thickness Gauge 2-In-1 FE/NF Probe

UYIGAO UA5169 Coating Thickness Gauge Mil Thickness Gauge Paint Thickness Gauge  2-In-1 FE/NF Probe

Features:
- Professional coating thickness gauge
- Its 2-in-1 probe automatically recognizes substrate material. When the substrate is identified as a magnetic material (steel, iron, etc.), the thickness of the coating layer is measured by the principle of magnetic induction, and the screen displays FE. When the substrate is identified as a conductive material (aluminum, copper, etc.), the coating thickness is measured by the eddy current effect, and the screen displays NF
- High-precision probe automatically recognizes the type of substrate and quickly and accurately measures the thickness of the coating
- A must have for vehicle inspection
- Buzzer prompt, unit switch, automatic shutdown, automatic identification, inadequate power supply prompt, single-point measurement, and overload display
- Outstanding performance and simple operation
- HD screen with clear number
- Humanized design: streamlined body design conforms to artificial grip gestures

Specifications:
- Model: UA5169
- Sensor Probe Type: Fe/NF
- Working Principle: Magnetic Induction (Fe); Eddy Current (NF)
- Range: 0-1300um (Fe); 0-1300um (NF)
- Accuracy: ±(3% + 2um) (Fe); ±(3% + 2um) (NF)
- Resolution: 0.1um (Fe); 0.1um (NF)
- Calibration Points: Zero; multi-point
- Unit: um, mil
- Minimum Curvature Radius of Convex Side: 1.5mm/0.06"
- Minimum Curvature Radius Concave: 25mm/1"
- Minimum Measuring Area: Diameter 6mm/0.2"
- Minimum Thickness of Substrate: 0.5mm/0.02" (Fe); 0.3mm/0.012" (NF)
- Operating environment: temperature 0-40℃ (32-104℉); humidity 20%-90%RH; without strong magnetic field

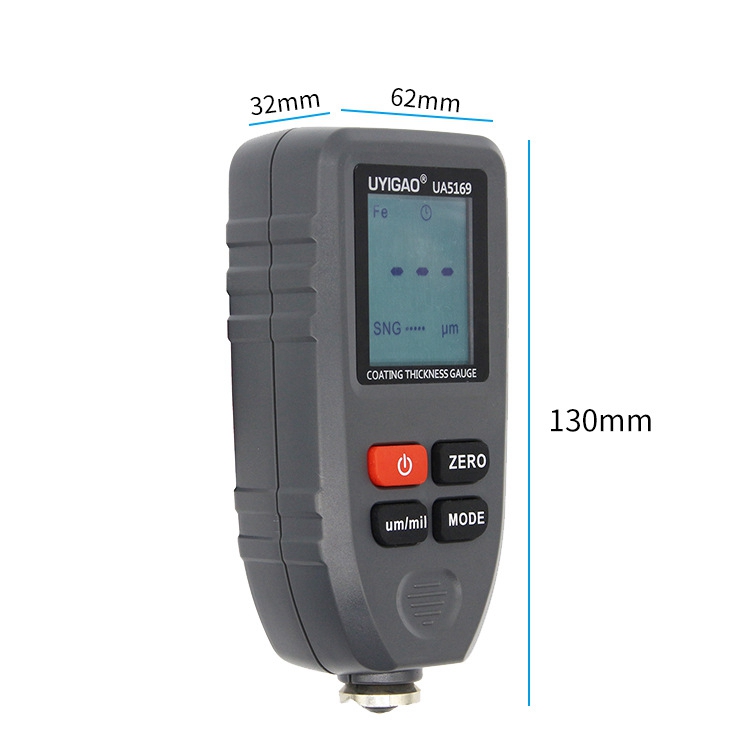

- Size: 130 x 62 x 32mm/5.1 x 2.4 x 1.3"
- Weight: 100g/0.2 lb

Package Included:
- 1 x Set of Paint Thickness Gauge

Note:
- Battery is not included. A 9V battery is recommended.
