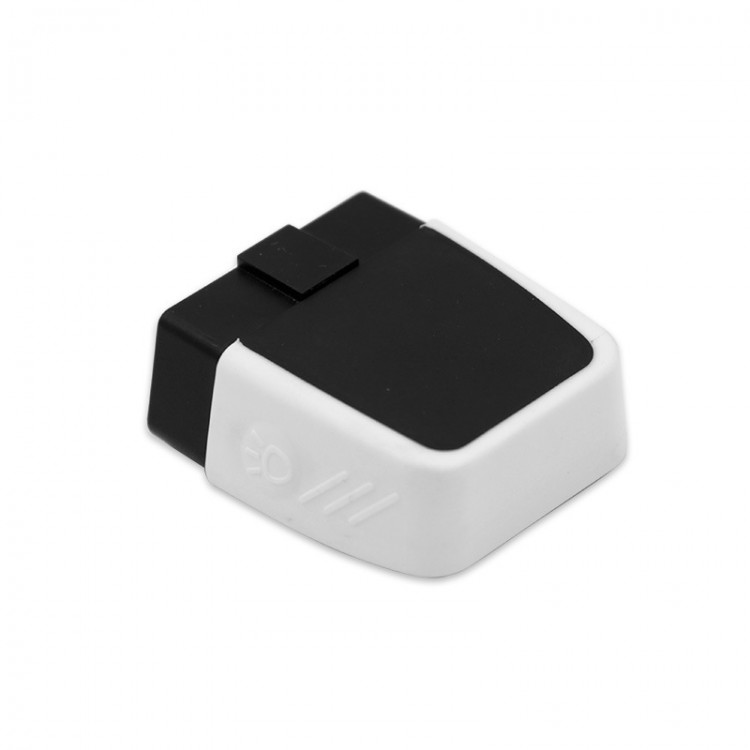

V08 Mini OBD2 Scanner ELM327 OBD2 Bluetooth 4.0 16-Pin w/ LED for Android iOS Windows Symbian
Features:
- ELM327 OBD-II Bluetooth 4.0
- Passed CE, FCC, RoHS certification
- Support 9 communications protocols
- Compact size with integrated chip and patent design
- Anti-scratch and anti-slip rubber housing
- LED lights up your vehicles
OBD2 Bluetooth 4.0 Scanner Functions:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear error diagnostic codes and turn off MIL
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short-term fuel Situation
- Long Term Fuel Situation
- Intake Manifold Pressure
- Fuel Injection Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages associated short term fuel trims
- Fuel System status
- Fuel Pressure
- Fuel consumption monitoring
- More
Supported Communications Protocols:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)
Compatible Software:
- For Windows: ScanMaster-ELM, ScanTool.net, PCMSCAN, ect.
- For Android: Torque, DashCommand, OBD Car Doctor, Auto Doctor, Mini OBDII, EOBD and the like
- For iOS: Auto Doctor, Mini OBDII
- For Symbian: OBDScope
Compatible Platforms:
- Software fits for Windows XP, Windows 7/8 , Android, Symbian, iOS
Parameters:
- Communications Method: Bluetooth 4.0
- Chip: PIC 18F25K80
- Working Voltage: 9-36V
- Working Current: 85mA
- Standby Current: 20mA
- Operating Temperature: -40℃ to 85℃
- Operating Humidity: < 60%
- Size: 41.8 x 31.7 x 19.7mm
Package Included:
- 1 x V08 ELM327 OBD2 Scanner
