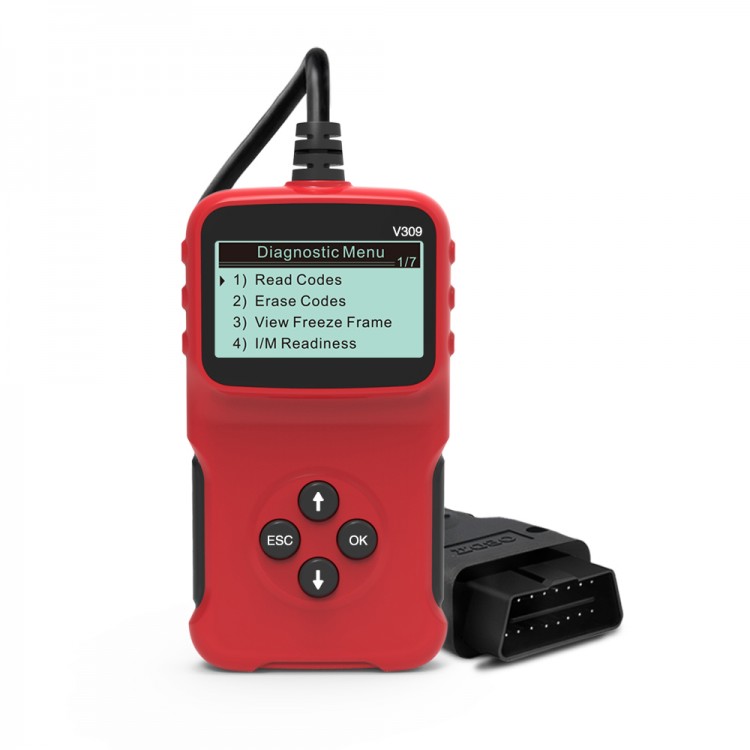

V309 Car Diagnostic Tool OBD2 Scanner OBDII Scanner Code Reader Compact Size For Easy Application

V309 Car Diagnostic Tool OBD2 Scanner OBDII Scanner Code Reader Compact Size For Easy Application

Product Features:
1. Small size, highest chip integration, independent appearance patent, utility model patent;
2. The following operations can be performed:
Read error diagnosis codes-general and manufacturer-specific, and display their meanings (the database has more than 3000 general code definitions)
Clear the error code and turn off the MIL ("Check Engine" indicator light)
Display current sensor data, including:
Engine revolutions per minute (RPM)
Calculated load value
Coolant temperature
Fuel system status
Speed
Absolute position of throttle valve
Oxygen detection voltage associated with short-term fuel state
Fuel system status
Fuel pressure
Fuel consumption monitoring and other data
Data chart display and logging
Freeze frame data
Continuous and discontinuous oxygen detection results

Supported Protocols by OBDII:
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2(5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud)
6. ISO15765-4 CAN (11bit ID, 500 Kbaud)
7. ISO15765-4 CAN (29bit ID, 500 Kbaud)
8. ISO15765-4 CAN (11bit ID, 250 Kbaud)
9. ISO15765-4 CAN (29bit ID, 250 Kbaud)

Product Parameters:
- Main control chip: MM32L073
- Working voltage: 9V~16V
- Working current: 80mA
- Standby current: 25mA
- Working temperature: -30℃ to 70℃/-86℉ to 158℉
- Working humidity: less than 60%
- Product size: 95.5 x 72.1 x 22.2mm/3.8 x 2.8 x 0.9 inch (LxWxH)
- Product weight: 147g/0.3LB

Package Included:
- 1 x Set of Car Diagnostic Tool
