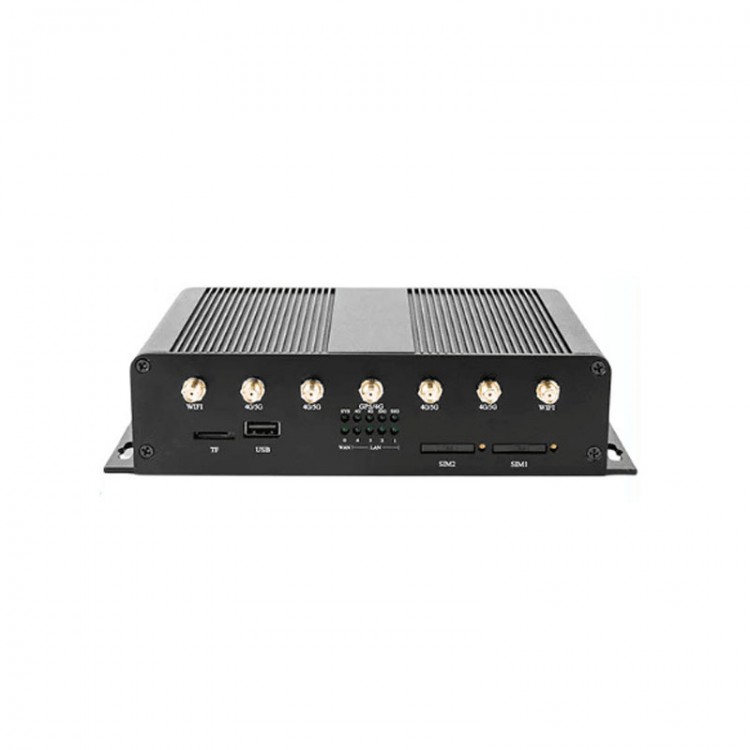

V520-8X 4G+4G Baseband Industrial Router Wireless Router Wifi Router for Smart City & Healthcare

V520-8X 4G+4G Baseband Industrial Router Wireless Router Wifi Router for Smart City & Healthcare

Features:
High-performance Industrial Router
- Easy to operate
- Fast internet speed
- Shared by multiple people
- Software and hardware watchdogs

Powerful Functions
- Support Qianxun SI location service: output location information through serial port/network port
- Support multiple VPN (PPTP/L2TP/GRE/OPenVPN)
- Multiple connection method: 4G, PPOE, wireless trunking and mixed mode
- Support 4G/5G, wired and WLAN dual-link switching backup
- Support for built-in ESIM cards
- Built-in more than 100 countries APN, automatic identification, and convenient Internet access

Core Technology
- Perfect data path switching algorithm
- Safe, reliable and efficient component interfaces
- Open operating system that enables customers to integrate applications

5G SSA/NSA Ultra-high-speed Network
- External antennas, multiple signal reception and faster network speed

Industrial-grade Design
- Its metal housing is IP30 rated
- Wide power supply input (DC9V~48V)
- Industrial temperature design (-40°C to +75°C)
- It adopts high-performance industrial-grade 32-bit processor and 4G/5G module
- The system is safely isolated, especially suitable for industrial control field applications

Stable and Reliable
- Software and hardware adopt a watchdog design to ensure the stability of the system
- Dual SIM card and dual standby and 4G/5G online. Bandwidth overlay makes it more stable to use
- Complete anti-offline mechanism to ensure that the data terminal is always online
- Anti-reverse connection protection of power supply, ESD protection and lightning protection

Standard and Easy to Use
- Intelligent data terminal, data transmission can be carried out at power-on
- Easy and flexible to use. A variety of working mode options
- Convenient system configuration and maintenance interface
- Support wall mounting. Stable and reliable to use

Typical Application Scenarios
- Smart cities
- Internet of vehicles V2X
- Intelligent logistics unmanned vehicles
- Security monitoring
- Intelligent manufacturing
- Smart healthcare

Specifications:
- Chip/Memory: Dual-core high-performance processor
- 4G baseband: 4G + 4G
- Button: Reset button x1
- Indicator light (10): 4G/5G indicator x2; 4G/5G signal indicator x2; System indicator x1; Network port indicator x5
- Wifi: 2.4G: Standard: IEEE 802.11bgn 300Mbps (2T2R); transmit power: 11n HT40 MCS 715dBm/11b CCK 18dBm/11G OFDM 15dBm; receiving sensitivity: -65dBm at 300Mbps/-73dBm at 54Mbps/-86dBm at 11Mbps. 5.8G: Standard: IEEE 802.11ac 866Mbps (2T2R); transmit power: 11ac HT80 MCS 920dBm; receiving sensitivity: -56dBm at 866Mbps
- WAN port: WAN interface (10/100/1000Mbps autonomous): In gateway mode, the port is a WAN port; In other modes, the port is a LAN port
- LAN port: 4 LAN interfaces (10/100/1000Mbps adaptive)
- Serial port: RS232x1; RS485x1
- port (2): Phoenix connector/DC interface input 12V-48V/2A; Phoenix connector 3.3V output x1
- USB interface: USB2.0x1
- IO interface (6): GPIO interface (phoenix connector)
- Antenna interface: WiFix2; 4Gx2; 4G/5Gx2; GPSx1
- TF card slot: TF card slot x1
- SIM card slot: Drawer card slotx2/eSIMx2
- Hardware dog: Yes
- Dimensions: 204 x 117 x 48.2mm/8 x 4.6 x 1.9"
- Operating power consumption: about 600mA at 12V DC
- Temperature: Working temperature: -40°C to +75°C; Storage temperature: -45°C to +85°C; Humidity: 5%~95%, non-condensing

Package Included:
- 1 x Set of Router

Note:
- It comes with rubber antennas by default. Sucker antennas and FAKRA patch antennas are optional and more expensive.
