Vector Network Analyzer Meter 50K-3GHz Antenna Analyzer Featuring Metal Shell 4" Display

Vector Network Analyzer Meter 50K-3GHz Antenna Analyzer Featuring Metal Shell 4" Display

Description:
It is a portable vector network analyzer up to 3GHz.

We manufacture analyzers in strict accordance with the document for OwOComm, and use 0.5ppm TCXO to ensure high frequency measurement accuracy. Complete metal shell can fully protect its internal precision circuit while fully considering the protection of external interface. Customized high-performance SS405 cable provides good amplitude and phase stability. High-performance calibration kit ensures that calibration SWR is less than 1.03 up to 3GHz.

Product Performance:
- Frequency range: 50kHz-3GHz
- Frequency error: < 2ppm
- Frequency temperature: < 0.5ppm
- System dynamic range (calibration): 70dB (up to 1.5GHz); 60dB (up to 3GHz)
- S11 noise level (calibration): -50dB (up to 1.5GHz); -40dB (up to 3GHz)
- Scanning speed: 100 points/sec
- Display: 3.95 inches (about 4-inch), 320 x 480
- RF port: N (If you need to measure anti-pin SMA devices such as WiFi antenna, please use SMA to RPSMA connector)
- USB interface: micro USB
- Power supply: USB, maximum charging current 1A
- Battery: 3000mAh lithium ion (with test report)
- Battery connector: JST-XH 2.54mm
- Maximum scanning point (on device screen): 201
- Maximum scanning point (USB): 1024
- Port 2 return loss (1.5GHz): 20dB typ
- Port 2 return loss (3GHz): 13dB MIN
- VNA-QT software compatible system: For Linux, Windows (7+), Mac OS planned

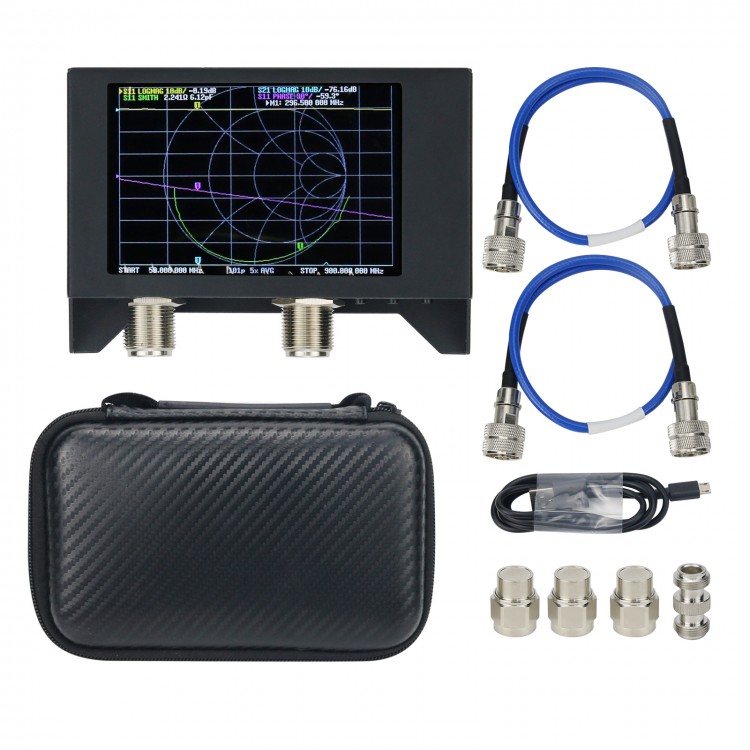

Package Included:
- 1 x Main Unit (Built-in 3000mAh Battery)
- 1 x USB Data Cable
- 2 x 50cm N Male To Male RG142-PUR RF Cables
- 1 x N Simple Calibration Kit OPEN
- 1 x N Simple Calibration Kit SHORT
- 1 x N Simple Calibration Kit LOAD
- 1 x N Female To Female Connector
- 1 x EVA Carry Bag

Attention:
- It uses a user interface similar to NanoVNA, but adopts a different technical architecture. It does not load initial calibration data at startup, and will not automatically insert calibration data after users change frequency. After the second startup and frequency change, calibration data must be re-calibrated or recalled. Please read user guide carefully before use to avoid damage to the equipment.
- Since we use a better LCD monitor, if the touch screen is inaccurate after upgrading its firmware, please calibrate the touch screen through the menu!

More Information:
Nanovna-saver: https://github.com/NanoVNA-Saver/nanovna-saver/releases
VNA-QT software download: https://github.com/mdkendall/NanoVNA-QT/releases/
User guide: https://github.com/nanovna/NanoVNA-QT/raw/master/ug1101.pdf
