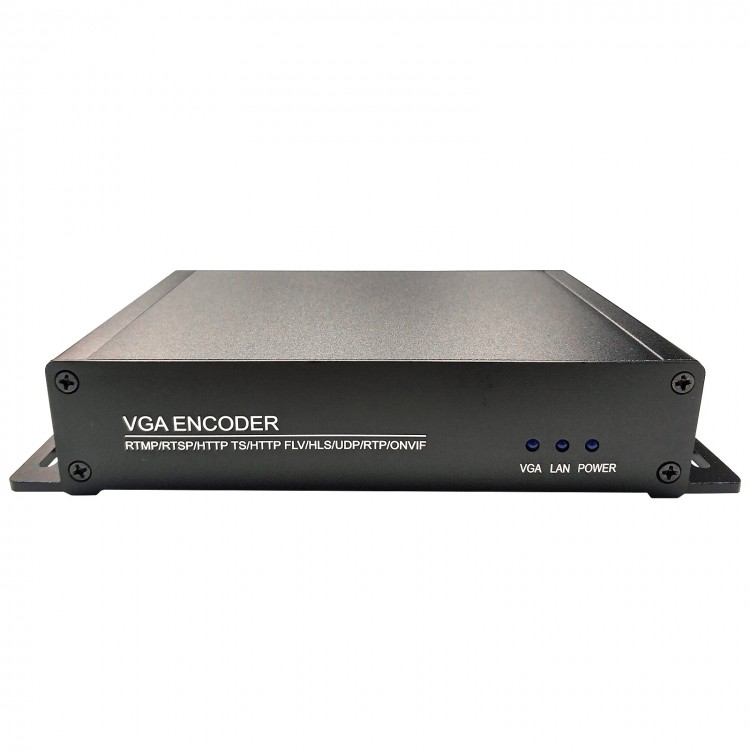

VGA HDMI Video Encoder Streaming H.264 Support Video Preview Loop Output HDMI 1080P@60P XE3V

VGA HDMI Video Encoder Streaming H.264 Support Video Preview Loop Output HDMI 1080P@60P XE3V

Encoder Upgrade Package Download Address:
pan.baidu.com/s/1kVyGylL
Upload the up.rar file and restore the factory settings after the upgrade is successful!

Advantages:
- The device itself delays 80-200ms
- VGA support loop output without being encoded
- Compatible with multiple resolutions, VGA one-key adjustment
- H.264/MJPEG video encoding

Features:
- VGA video encoder with loop output
- Full HD HDMI 1080P@60P picture quality
- Support separate input and output of audio & video
- Video Preview: We embed player for FLASH in encoder webpage, users can preview video directly.
- Live Streaming: RTMP protocol is used for messaging major online live streaming platforms. Just input RTMP address of live broadcast platform into our configuration webpage.
- Support Live Broadcast Platforms: For aodianyu.com, live assistant, Huya.com, Douyu, Zhangyu, LETV, V.QQ.COM, mudu.tv.
- H.264 encoding
- HD 1080P: HD 1080P@60P video source input encodes the same picture quality.
- HLS Video Stream: Output HLS stream, which can be played directly on browser for Apple.
- Multicast: Multicast can realize multi-person viewing on LAN.
- OSD Graphic Settings: You can add picture logo and text in multiple areas of video, and set color transparency and so on.
- Serial port transparent transmission

Parameters:
Audio Video Input:
- Video Input: 1-way VGA
- Audio Input: 1-way VGA built-in audio/1-way external 3.5mm audio

Audio Video Output:
- Video Output: 1-way VGA
- Audio Output: 1-way VGA built-in audio/1-way external 3.5mm audio

Video Encoding:
- Encoding type: H.264
- H.264 level: Baseline/Main /High optional
- Encoding frame rate: 5-60 adjustable
- Key frame interval (frame): 5-300 adjustable
- Bit rate (kbit): 32-32000 adjustable
- Resolution after encoding: 1920x1080/1680x1056/1280x720/1024x576/850x480/720x576/720x540/720x480/720x404/704x576/640x480/640x360/608x448/544x480/480x480/480x384/480x360/480x320/480x272/480x270/400x320/400x224/352x480 /352x228/320x256/320x240/320x180/240x180/same as input resolution
- Stream control: Cbr/vbr optional
- Streaming: Support for RTMP/RTSP/HTTP TS/HTTP FLV/HLS/UDP, multicast/RTP multicast

Audio Encoding:
- Audio input: HDMI/Analog optional
- Encoding sampling rate: 44100/48000 optional
- Coding method: AAC+/AAC++/MP3/MP2/AC3 optional
- Encoding bit rate: AAC: 48000-320000 adjustable; AAC+: 24000-48000 adjustable; AAC++: 12000-32000 adjustable; MP3: 64000-320000 adjustable; MP2: 64000-320000 adjustable; AC3: 40000-640000 adjustable
- Digital volume:-50 to 50 adjustable
- RTSP stream uses G711A encoding: Optional disable/enable/enable with 8K resampling

OSD:
- Transparency: 0-128 adjustable
- Type: text/picture/scrolling text
- Regions: 4 regions are optional
- X coordinate: 0-1920
- Y coordinate: 0-1080
- LOGO: 4 LOGOs can be uploaded for selection
- Font size: 8-72
- Background color: transparent/white/black
- Font color: RGB color optional

General:
- Network: 100M
- Configuration management: configuration management via WEB
- For ONVIF: Support for ONVIF to search and browse videos
- Power supply: 12V/DC, 2A
- Power consumption: < 5W
- Product Size: 18.2 x 10.4 x 3.5 cm

Package Included:
- 1 x Set of Video Encoder
