VI-12V1A Portable High Performance Ammeter Accuracy Agility Instrument with Anti-Interference Function

VI-12V1A Portable High Performance Ammeter Accuracy Agility Instrument with Anti-Interference Function

Description:

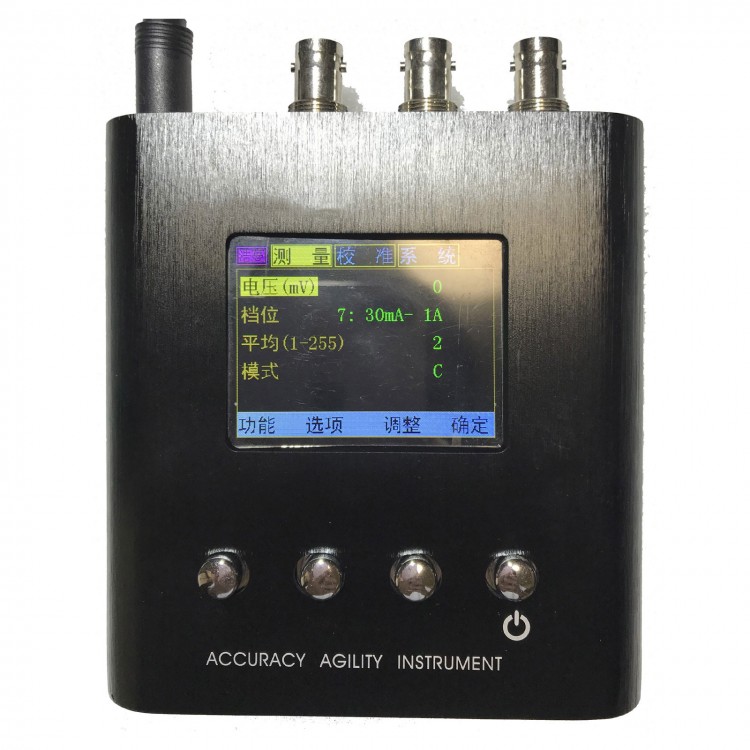

- VI voltage and current meter: It is a portable instrument that can actively generate the required DC voltage and measure the current size using high-performance processor. Small size, light weight, with the ability to measure small current. The product display screen interface and buttons are clear and simple, and can be set in Chinese or English. It is convenient to use and easy to operate. This voltage-current meter generates a constant voltage output DC voltage and tests the current flowing through it, so that the power and resistance of the parts to be measured can be calculated. The resolution is high, and the measurement result is 6 significant digits. Strong resistance to 50Hz and 60Hz power frequency interference, and digital indication of interference degree.
- Product Instruction Video Link: https://www.bilibili.com/video/BV1AT411J7oG/

Application range:
- Accurate and extensive current measurement
- Production aging test
- Maintenance of electronic appliances
- PCB circuit board current detection
- Operating current of each pin of the operational amplifier
- Pin current of various diodes, triodes, MOS tubes and other ICs
- Product circuit current detection on the factory assembly line

Specification:
- Voltage setting range (mW): 60~12500
- Voltage setting step (mW): 1
- Voltage accuracy:
  10%: widest range (60mV~12.5V)
  5%: Default (300mV~12V)
  2%: After precision calibration (300mV~12V)
- Output voltage ripple: within 10mV (In some extreme cases, the ripple will be larger.)
- Current level:
  Automatic: wide range for current measurement
  Level 1: 50pA-1nA
  Level 2: 1nA-30nA
  Level 3: 30nA-1uA
  Level 4: 1uA-30uA
  Level 5: 30uA-1mA
  Level 6: 1mA-30mA
  Level 7: 30mA-1A
- Current accuracy: 1% (In some extreme cases, it will be larger.)
- Average: 1-255
- Mode:
  C: Quick Mode: high speed of dynamic response and larger ripple
  L: Slow Mode: low speed of dynamic response and smaller ripple
- Power supply: 15V adapter power supply
- Size: 130 x 108 x 31mm
- Net weight: 260g

Package Included:
- 1 x Host

Note:
- To ensure the accuracy of measurement and calibration, please preheat the product for at least 5 minutes before measurement.
- Disadvantages: the measurement time of large current should not be too long: >0.5A, the continuous duration should be less than 30s (the switch IC may be used for improvement in the future)

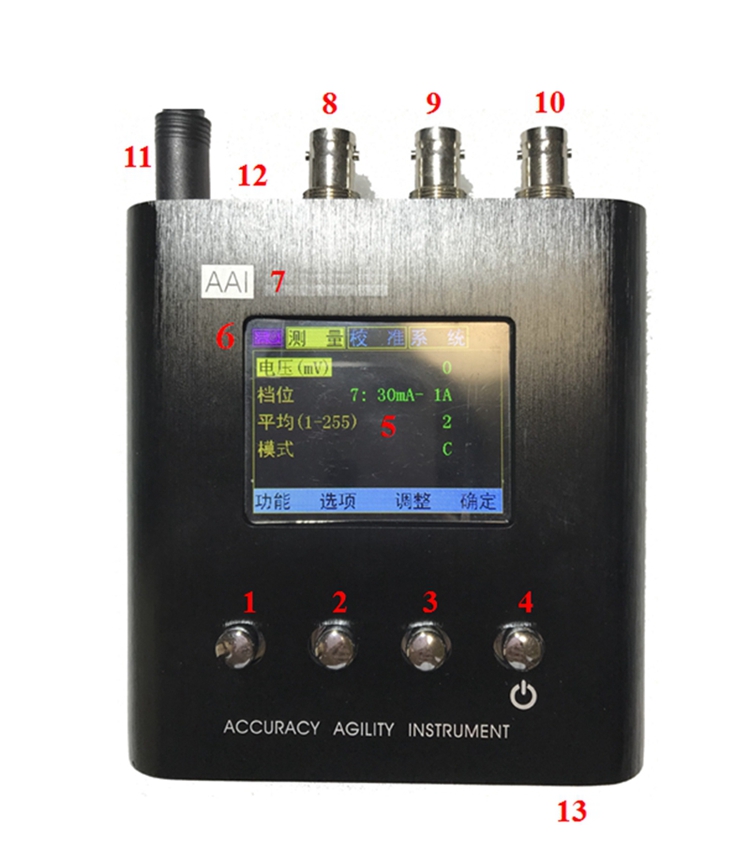

- The interface is BNC female. Since the strength of copper is relatively lower than that of other metals, please protect it carefully to avoid falling and bumping damage.
- In the case of strong interference, unconventional operation, and unknown software bug, the numerical display may be abnormal or even crash. At this time, please restart the instrument directly or press "RESET" to reset the product.
- The tested parts cannot be electrified, especially the energy storage devices (such as electrolytic capacitors), which need to be discharged before testing, otherwise the instrument may be damaged.
- During calibration, try to keep away from the electromagnetic interference of the surrounding environment, preferably from the mains, such as wires, sockets, etc.
