FY6300-40M 40MHz Dual Channel DDS Function Arbitrary Waveform Signal Generator Frequency Counter

FY6300-40M 40MHz Dual Channel DDS Function Arbitrary Waveform Signal Generator Frequency Counter

Description:

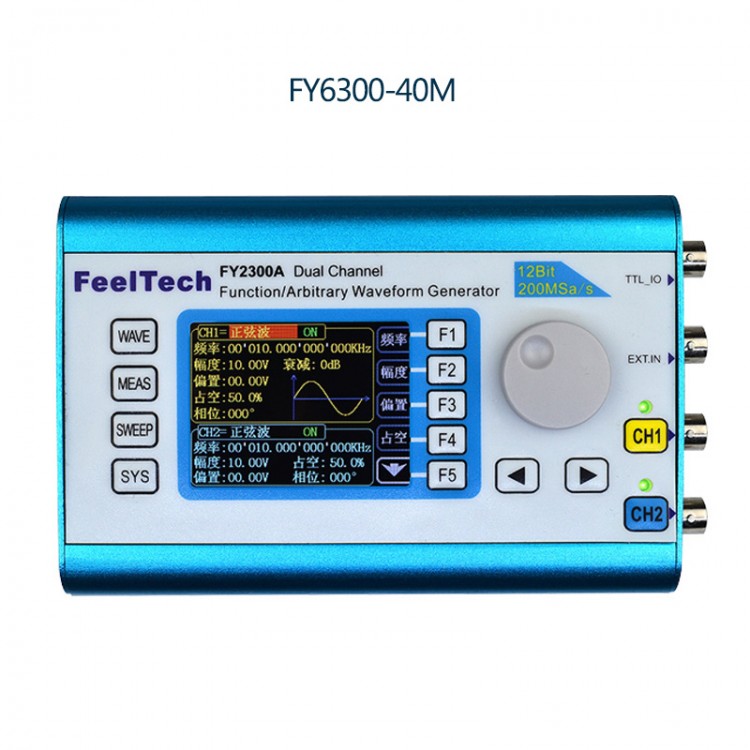

FY6300 series dual-channel function/arbitrary waveform generator is a portable, high-performance, cost-effective and multifunctional signal generator. It has integrated function and can be used as a signal generator, arbitrary waveform generator, pulse signal generator, frequency scanner, counter and frequency meter. The instrument uses a large-scale FPG integrated circuit and a high-speed MCU microprocessor. The internal circuit adopts a high-precision active crystal oscillator as a reference, the signal stability is high. Surface mount technology greatly improves the anti-interference and service life of the instrument. The instrument has a completely independent dual-channel DDS signal and TTL level output, which not only presets 31 common waveform signals for users but also provides 16 sets of custom waveform storage space for users. It achieves the perfect combination of ease of use, excellent technical indicators and many functional characteristics in signal generation, waveform scanning, parameter measurement and use, which can help users complete work tasks faster. It is an ideal testing and measuring equipment for electronic engineer, electronic laboratory, production lines and teaching, as well as scientific research.

FY6300 series dual-channel function/arbitrary waveform generator has user-friendly keyboard layout and instructions, providing users with an intuitive operation interface. The display interface uses a 2.4-inch TFT color LCD screen with a high resolution of 320*240. It can display all the parameters of two channels at the same time and prompt the current key function. The shortcut button design greatly simplify the complicated operation process.

The main differences between FY6300 and FY2300 series are as follows:
1. The output frequency of FY6300 series sine wave can reach 60MHz (FY6300-60M), and the maximum output frequency of square wave can reach 25MHz.
2. Added AM, FM, PM, ASK, FSK, PSK, VCO modulation functions.
3. The sampling rate of FY6300 series are upgraded to 250MSa/s, and the outline of high-frequency signal output is clearer.
4. The FY6300 series use 14-bit high-speed DA integrated circuits (the performance far exceeds the DA solution made by the resistor network). At 5V output, the waveform ladder is as low as 0.3mV.
5. The FY6300 series waveform storage depth is upgraded to 8192*14bits, which can restore signal details with high accuracy.
6. The phase resolution of FY6300 series can reach 0.01 degree, and users can control the delay of two signals more accurately.
7. FY6300 series duty cycle adjustment accuracy can reach 0.01%; square wave rising edge and falling edge time can be adjusted. When the instrument is setting square wave output, press F4 button to switch between duty cycle and rising edge time, so that the scope of application of the instrument is wider.
8. The FY6300 series adopt new power supply design, which eliminates the disadvantages of small-amplitude signals interfered with by the power supply noise of handheld instruments. (10mV small signal still has perfect signal characteristics).

Package List:
-1 x Signal Generator
-1 x DC 5V Power Adapter
-2 x Q9 Clip Cables
-1 x USB to DC 5.5-2.1 Power Cable
-1 x USB Cable
-1 x BNC-BNC Cable
