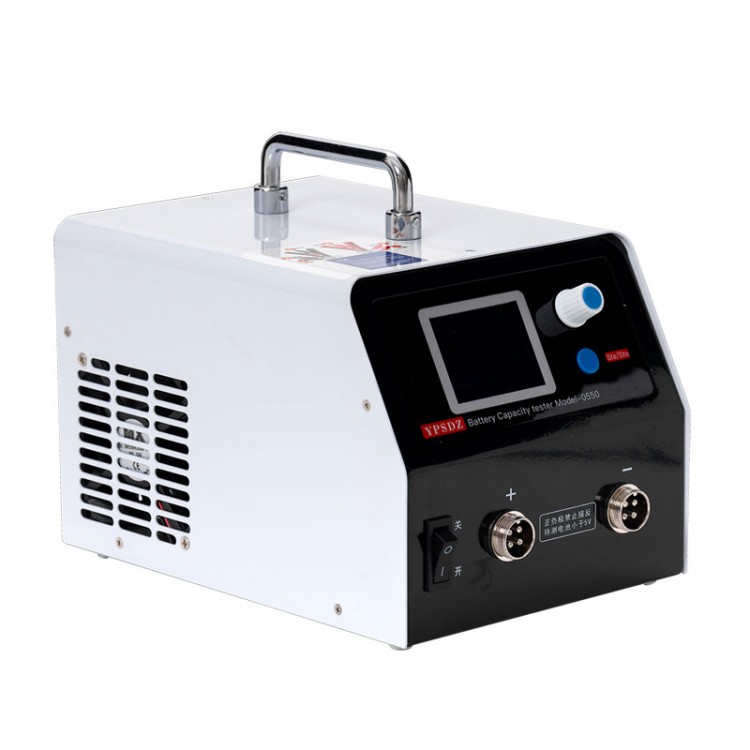

YPSDZ-3010 Battery Pack Charging/Discharging Capacity Tester 30V High Precision Battery Voltage/Current Detector

YPSDZ-3010 Battery Pack Charging/Discharging Capacity Tester 30V High Precision Battery Voltage/Current Detector

Description:
- Suitable for various battery packs within 30V, can be connected to a computer, can measure the discharge cut-off voltage of the battery pack, and can be connected to an external battery pack temperature sensor. Suitable for lithium batteries such as drones, street lights, power tools, laptops, AGV robots, and digital products. It is also applicable to lithium battery pack manufacturers for capacity testing during shipment, battery pack recharge and discharge, and after-sales capacity testing.

Suitable for various small and medium-sized battery packs:
- Type: ternary lithium/lithium iron/nickel hydrogen/lead-acid batteries, etc.
- Function: capacity detection, charging, discharging, cycle testing, aging.

Voltage Accuracy Evaluation:
- Using the high-end 8845A 6-digit and a half multimeter for Fluke in the industry to calibrate the voltage. Each product must undergo multiple strict calibrations by technicians to ensure that the voltage measurement accuracy is in the third decimal place.

Current Accuracy Evaluation:
- We use the high-end PCS-1000I 6-digit ammeter for GWINSTEK to calibrate the current, and adopt patented calibration technology (multi-stage calibration) to ensure that the current can be accurately maintained in every section from 0.5 to 10A. Each product must undergo multiple strict calibrations by technicians.

Specification:
- Model: YPSDZ-3010
- Capacity measurement range: 1~1000Ah
- Charging range: 1-30V (adjustable), 0.5-10A (adjustable)
- Discharge range: 1-30V (adjustable), 0.5-10A (adjustable)
- Function: capacity measurement/power replenishment/discharge/cyclic aging
- Steps: charge - discharge - standing - cycle
- Protection: battery overvoltage/battery reverse connection/high temperature/current loss of control (you can contact customer service to purchase a battery temperature probe to achieve high temperature shutdown)
- Accuracy: voltage and current ±0.1%

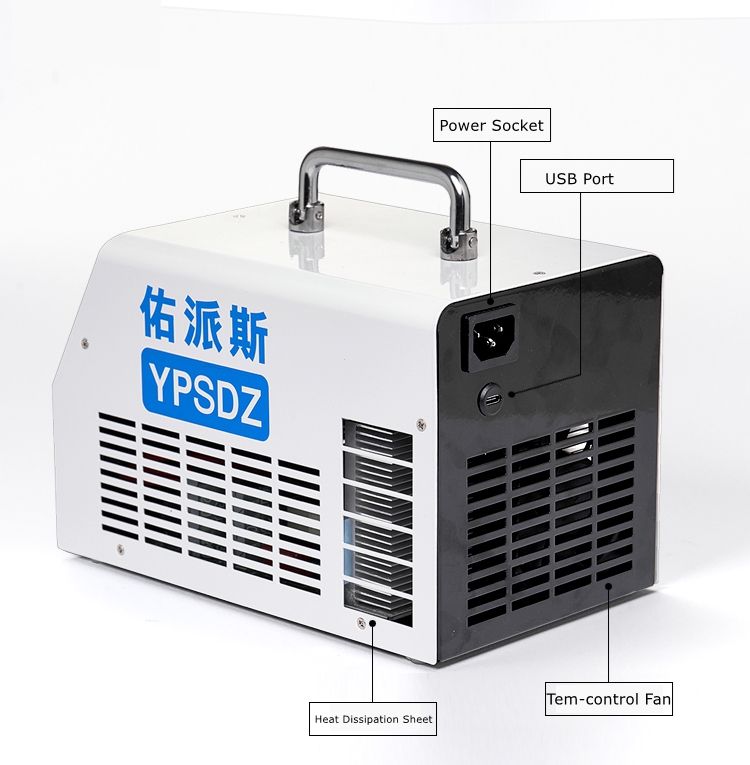

- Communication: USB (free upper software)
- Heat dissipation: the temperature controlled fan is turned on at 40℃ and protected at 83℃ (please check and maintain the fan operation regularly)
- Equipment power supply: AC200~220V 50/60Hz (110V can be reserved)
- Working environment: 0 ~ 40℃ ventilation (do not allow heat to accumulate around the machine)

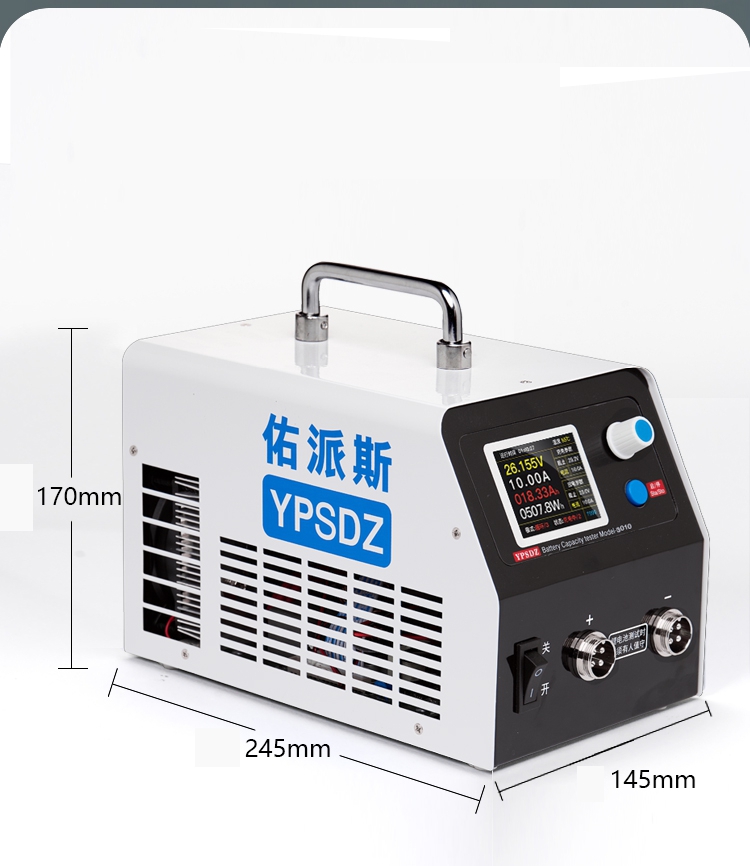

- Size: 170 x 145 x 245mm
- Net weight: 2.4kg

It can work independently:
- Steps: charging - discharging - standing - cycling, can be freely set.

It can work online (aging/capacity division/activation):
- The supporting upper software supports switching between Chinese and English
- Working mode: constant voltage charging/constant current discharging/standing/cycling
- Number of steps: 10
- Cycle count: 9999 times

Package Included:
- 1 x Tester
- 1 x Pair of Small Alligator Clip
- 1 x Online Line
- 1 x Power Cable

Note:
- 110V/220V is optional, please leave a message for the voltage you need after payment. Thanks for your understanding.
