YPSDZ-0050-4 4-Channel 50A Lithium Battery Charging/Discharging Capacity Tester Support Battery Cell Balancing
Description:

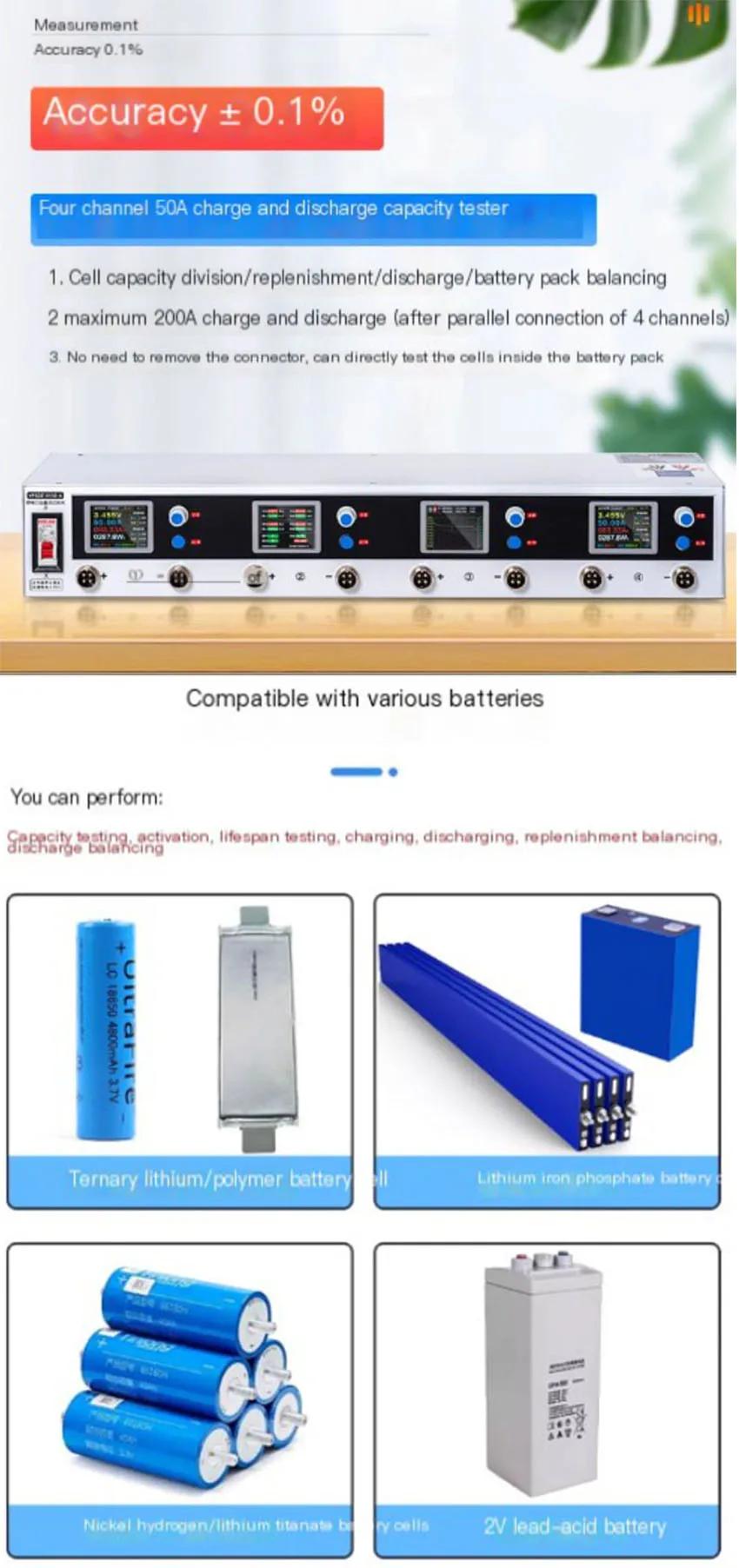

- Four channel 50A charging and discharging capacity tester
- Cell capacity division/replenishment/discharge/battery pack balancing
- Maximum 200A charge and discharge (after parallel connection of 4 channels)

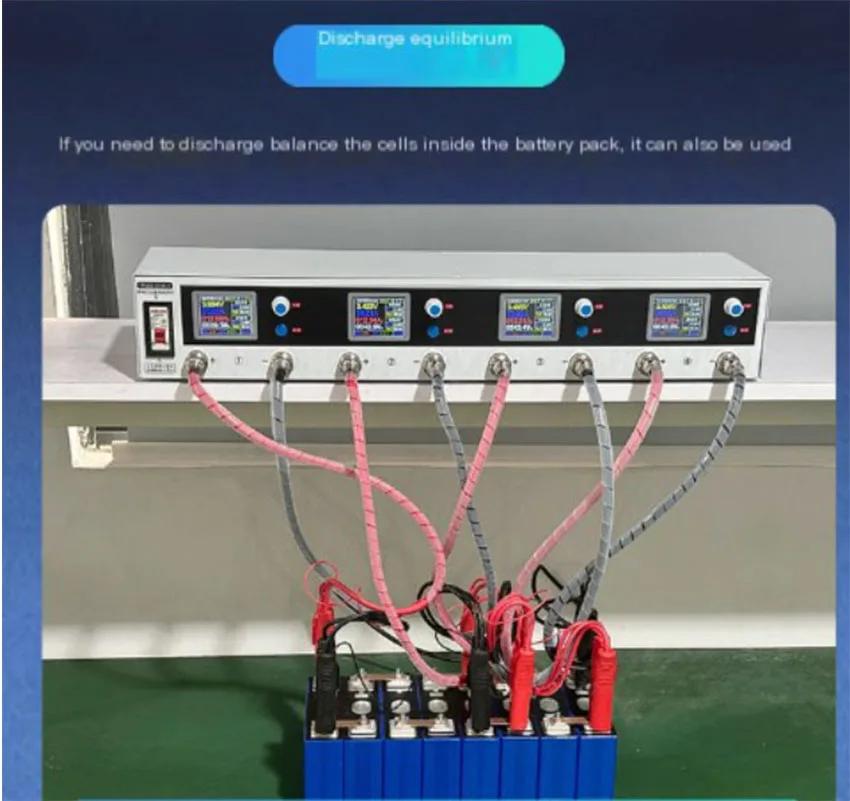

- No need to remove the connector, the battery cells inside the battery pack can be tested directly
Voltage Accuracy Evaluation:
- Using the high-end 8845A 6-digit and a half multimeter for Fluke in the industry to calibrate the voltage. Each product must undergo multiple strict calibrations by technicians to ensure that the voltage measurement accuracy is in the third decimal place.
Current Accuracy Evaluation:
- We use the high-end PCS-1000I 6-digit ammeter for GWINSTEK to calibrate the current, and adopt patented calibration technology (multi-stage calibration) to ensure that the current can be accurately maintained in every section from 0 to 50A. Each product must undergo multiple strict calibrations by technicians.
Specification:
- Model: YPSDZ-0050-4
- Capacity measurement range: 1~2000Ah
- Charging/discharging voltage: 0.3 - 5V adjustable (do not test batteries exceeding 5V)
- Charging/discharging current: 0.3 - 50A adjustable
- Function: capacity measurement/power replenishment/discharge/cyclic aging/activation/cell balancing
- Auxiliary function: 4 channels with consistent parameter settings can work in parallel to achieve 200A charging and discharging; It can test any 4 cells connected in series within the battery pack without the need to disassemble them.
- Steps: charge - discharge - standing - cycle
- Protection: battery overvoltage/battery reverse connection/high temperature/current loss of control (you can contact customer service to purchase a battery temperature probe to achieve high temperature shutdown)
- Accuracy: voltage and current ±0.1%
- Heat dissipation: forced air cooling (the temperature controlled fan is turned on at 43℃)
- Equipment power supply: AC200~220V 50/60Hz (110V can be reserved)
- Working environment: 0 ~ 40℃ ventilation (do not allow heat to accumulate around the machine)
- Size: 620 x 105 x 230mm
- Net weight: 7kg
Package Included:
- 1 x Tester
- 4 x Pair of Alligator Clips
- 1 x Power Cable
- 1 x User Manual
