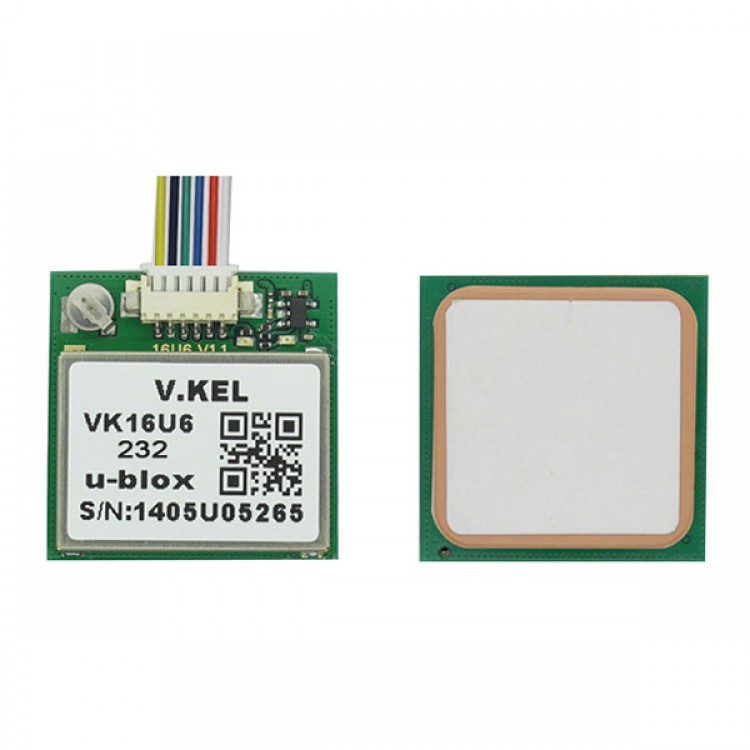

VK16U6 uBlox Integrated GPS Module G-Mouse Navigation System Board w/232 Electric Level
Features:
- 25*25*4mm high precision GPS antenna
- 232 level
- Use KDS 0.5PPM high precision TCXO
- Built-in RTC crystal hot start
- Built-in EEPROM
- 5HZ location refresh speed
- Support AssistNow Online and AssistNow Offline A-GPS service
- GPS, GALILEO, SBAS(WAAS, EGNOS, MSAS, GAGAN)
VK16U6 Specification:
- Mainchip: Ublox
- Receive frequency: L1[1575.42MHz]
- Follow channel: 50
- Support DGPS[WAAS, EGNOS and MSAS]
Position performance:
- 2D dimension: 5m
- 2D dimension: 3.5m, with DGPS
- Drift: <0.02m/s
- Time precision: 1us
- Coordinate system: WGS-84
- Max.altitude: 18000m
- Max.acceleration 500m/s
- Accelerator: <4g
Electronic performance:
- Follow sensitivity: -162dBm
- Acquisition sensitivity: -146dBm
- Hot start: 1s
- Warm start: 32s
- Cold start: 32s
- Recollection time: 0.1s
- Operation temperature: -30C-80C
- Size: 28*38*8.4mm, cable length 2m
- Output baud rate: 4800bps
- Output SiRF binary system OR nmea0183 V3.0(GGA, GSA, GSV, RMC, VTG)
