VL53L5X V2 Time-of-Flight 8x8 Multizone Wide Field of View Laser Ranging Sensor Module VL53L5CX with Optical Cover

VL53L5X V2 Time-of-Flight 8x8 Multizone Wide Field of View Laser Ranging Sensor Module VL53L5CX with Optical Cover

Description:
- Unlike conventional IR sensors, the VL53L5CX uses for ST's latest generation, direct ToF technology which allows absolute distance measurement whatever the target color and reflectance. It provides accurate ranging up to 400 cm and can work at fast speeds (60 Hz), which makes it the fastest, multizone, miniature ToF sensor on the market.
- Multizone distance measurements are possible up to 8x8 zones with a wide 63 ° diagonal FoV which can be reduced by software Thanks to ST Histogram patented algorithms, the VL53L5CX is able to detect different objects within the FoV. The Histogram also provides immunity to cover glass crosstalk beyond 60 cm.
- More details: https://pan.baidu.com/s/1W8GHPpql3Lzlo4IzLI5wyA?pwd=hwca  passwords: hwca

Advantages:
- Large angle: the field angle of ToF products is generally controlled at about 25-27 degrees, and the effective distance of FOV (field angle) is about 25-27 degrees in combination with the transmission power, reception ability and the effective range that the algorithm can bear. Through the improvement of software and hardware, the current angle can reach 60 degrees. The 60 degree has two advantages: on the one hand, it covers a wider range of products, especially suitable for larger products, such as large household appliances and large screens; On the other hand, this large angle can also be programmed. If you can't use this large angle, customers can program to get the desired angle. At present, the maximum angle is 60 degrees. There are many programming methods to do customer applications.

- Multizone: 16 areas or more can be divided. VL53L5 is divided into four blocks after cutting, namely four quadrants. Each quadrant can be cut again, reaching 16 areas or more. Taking 16 effective regions as an example, each region can output its range independently, which represents the initial depth change. The key to multi-depth must be to give numbers at the same time, and all the numbers at the same time can reach multi-zone. "The 16 numbers are different, and the movement of gestures can be achieved through the change of these 16 numbers. In the past, people were puzzled about the stable gesture recognition. How to recognize gestures, in fact, on the way to 3D, this thing will come true naturally.

- Relying on the above functions, VL5 3L5CX has a wide range of applications. It mainly includes: mobile phones, computers, household robots, smart appliances, smart door locks, access control, transportation, shelves, vending machines, smart buildings, smart agriculture, smart medicine, etc.

- Description of optical cover: The optical cover matching VL53L5X V2 can be used to measure more accurately, protect the sensor from dust and prolong the service life of the sensor.

Application:
- Scene understanding. Multizone and multi-object distance detection enables 3D room mapping and obstacle detection for robotics applications
- Wide FoV and multizone scanning allows content management (load in trucks, tanks, waste bins)
- Gesture recognition
- Liquid level control
- Keystone correction for video projectors
- Laser assisted autofocus (LAF). Enhances the camera AF system speed and robustness especially in difficult low light or low contrast scenes
- Augmented reality/virtual reality (AR/VR) enhancement. Dual camera stereoscopy and 3D depth assistance thanks to multizone distance measurement
- Smart buildings and smart lighting (user detection to wake up devices)
- IoT (user and object detection)
- Video focus tracking. 60 Hz ranging allows optimization of continuous focus algorithm

Parameter:
- Working voltage: 3~5V
- Communication method: IIC
- Measurement absolute distance: 0~4m
- Xshutdown (reset) / GPIO (interrupt)
- Size: 25 x 10.5mm

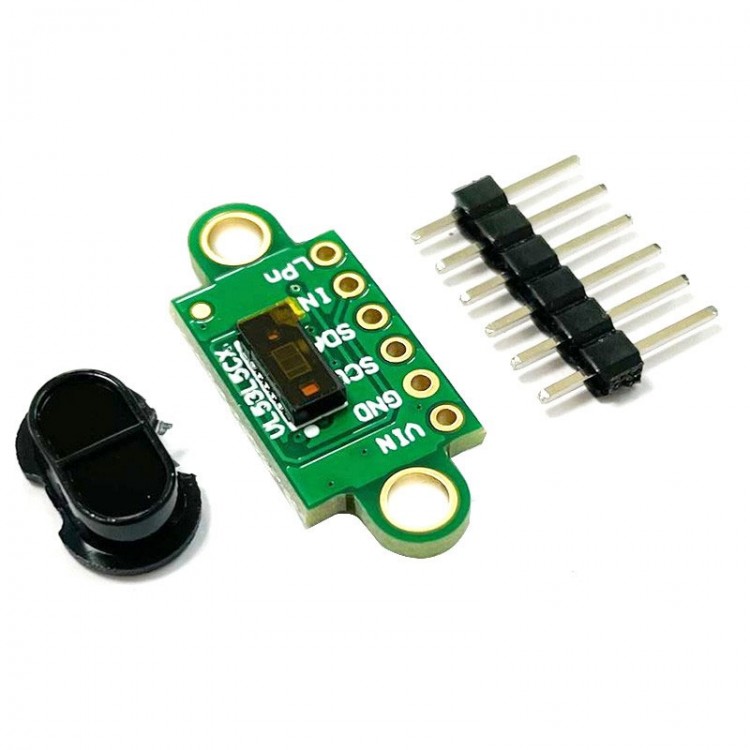

Package Included:
- 1 x VL53L5X V2 Sensor Module
- 1 x Optical Cover
